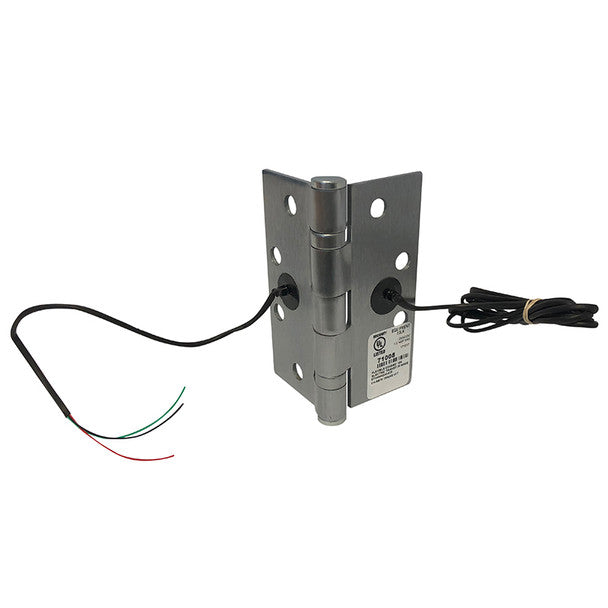

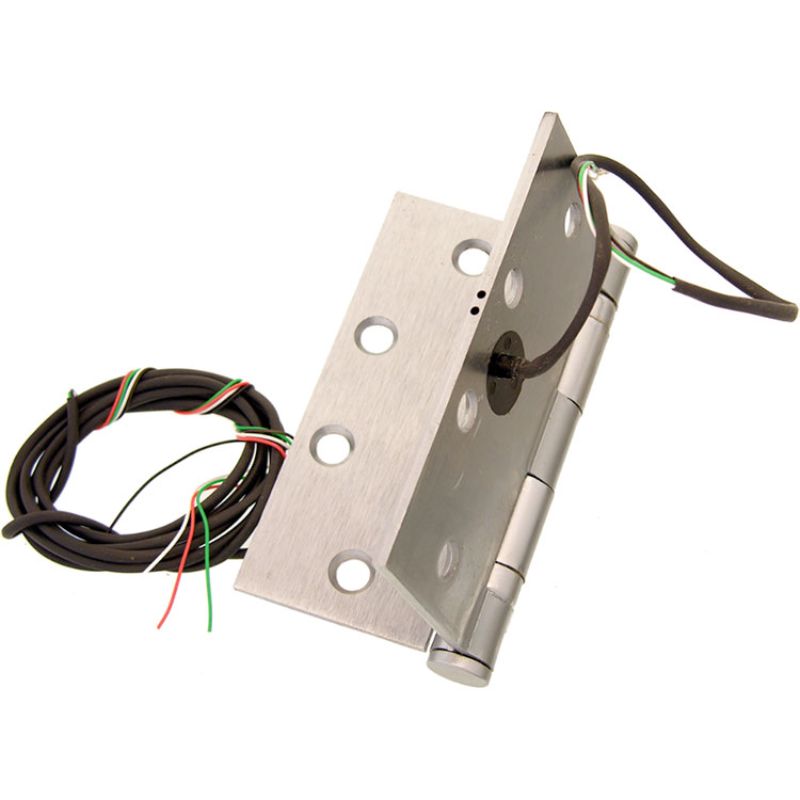

Command Access Technologies ETH4W4545-630CH-BB91 Energy Transfer Hinge 4-Wire 4-1/2 In x 4-1/2 In

Product Description

The Command Access Technologies ETH4W4545-630CH-BB91 energy transfer hinge is designed for transferring low-voltage power from the hinge jamb to the lockset without visible wires. It measures four and one-half inches by four and one-half inches. This hinge features a five-knuckle standard weight construction and a durable twenty-six gauge four-wire design. It is suitable for use with electric mortise and cylindrical locks and electric strikes.

• Designed for energy transfer
• 5-knuckle standard weight construction
• Durable twenty-six gauge four-wire design

Product Highlights

This energy transfer hinge provides a clean solution for low-voltage wiring while ensuring durability and reliability in commercial applications.

Product Information

Standard Information

• Manufacturer: Command Access Technologies
• SKU: ETH4W4545-630CH-BB91
• Installation: Commercial
• Unit of Measure: Each
• Base Material: Steel

Technical Specifications

• Hinge Type: Full Mortise
• Knuckles: 5
• Bearing Type: Plain Bearing
• Pin Type: Non-Removable
• Tip Style: Standard
• Weight: Standard Weight
• Power Transfer: 2-18GA and 2-26GA
• Wires: 4
