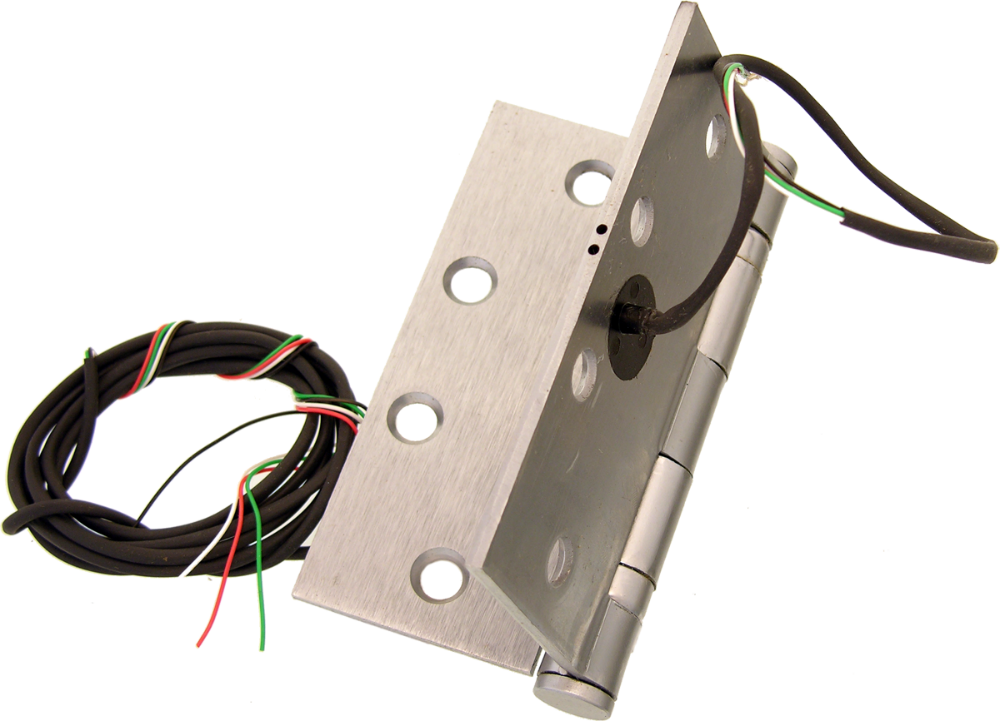

Command Access Technologies ETH12WH4545-613CH-BB91 Electrified Hinge 4.5in x 4.5in

Product Description

The Command Access Technologies ETH12WH4545-613CH-BB91 is an electrified hinge designed for secure access control systems. Designed in a standard size of four point five inches by four point five inches, this hinge is ideal for various door configurations.

• Designed for access control systems
• Features durable non-ferrous brass construction
• Compatible with multiple gauge wiring

Product Highlights

This electrified hinge enables the seamless integration of access control solutions, enhancing security without compromising the door's functionality.

Product Information

Standard Information

• Brand: Command Access Technologies
• Model: ETH12WH4545-613CH-BB91

Technical Specifications

• Size: 4.5 inches x 4.5 inches
• Wiring: 2/20 gauge and 10/28 gauge
• Design: 5-knuckle
• Type: Ball bearing
• Weight: Standard weight
• Material: Non-ferrous brass
• Fire Rating: Non-fire rated
• Finish: 613/US10B oil rubbed bronze
