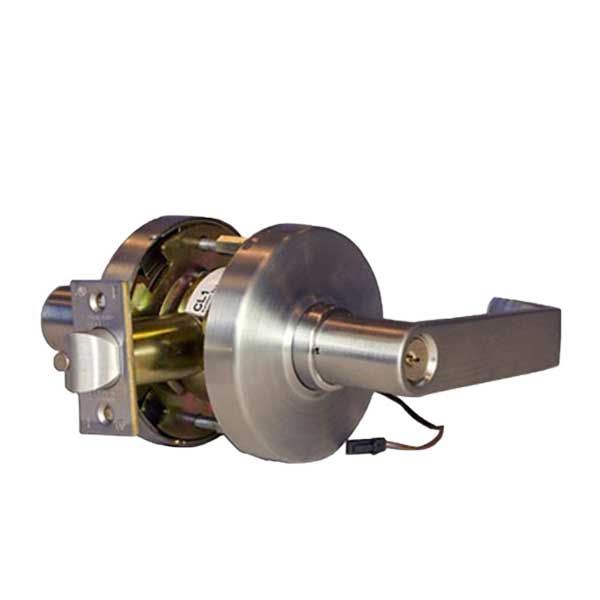

Command Access Technologies CL180LE-EU-L6-626-SC-RX Electric Cylindrical Lock Storeroom

Product Description

The Command Access Technologies CL180LE-EU-L6-626-SC-RX is a low-energy, electrified cylindrical lock suited for storeroom applications. This lock functions effectively on an input voltage range of eleven to thirty volts AC or DC. It features a fail-safe design with a clutching lever style, always allowing immediate exit through the inside lever.

• Fail-safe operation with electronic locking.
• Latchbolt can be retracted via key or inside lever.
• Power switch enables outside lever to retract latchbolt.

Product Highlights

An efficient and reliable solution for secure storerooms.

Product Information

Standard Information

• Product Type: Electrified Cylindrical Lock
• Function: Storeroom

Technical Specifications

• Cylinder Type: 6-Pin Standard Cylinder
• Design: Flat Lever with Return
• Finish: US26D Satin Chrome
• Grade: ANSI Grade 1
• Keyway: Schlage C
• Locking State: Fail-Safe (Power to Unlock)
• Deadlatch: 2-3/4 inches
• Door Thickness: 1-9/16 inches to 2-1/8 inches
• Backset: 2-3/4 inches
• Latch Throw: 1 inch
• Operating Voltage: 24VAC/DC
• Surge Voltage: 400 mA at 12V, 200 mA at 24V
• Holding Current: 30 mA
• Solenoid Coil Resistance: 159 ½
• Wire Raceway: 3/8 inches
• Certifications: ANSI/BHMA Meets Series Grade 1 requirements, UL Listed with 3-hour fire rating
• Warranty: 3-Year Manufacturer Warranty
