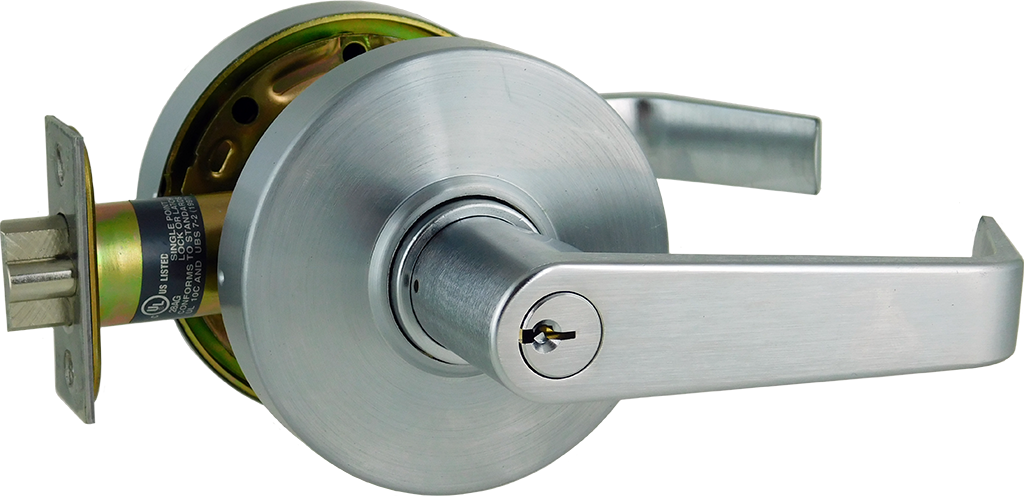

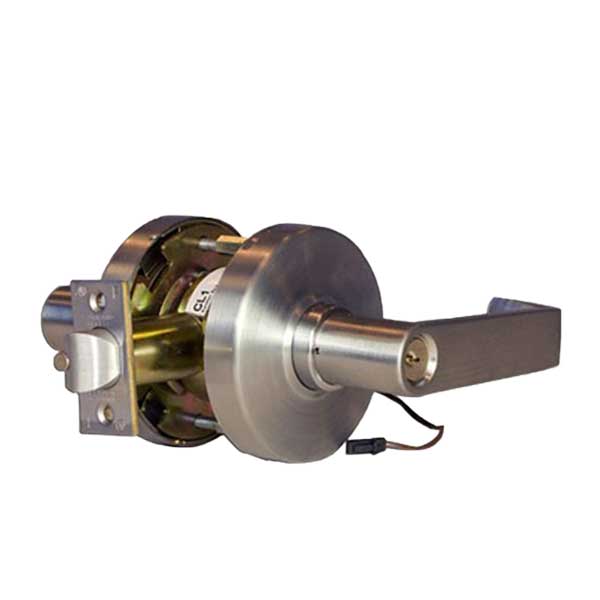

COMMAND ACCESS TECHNOLOGIES CL180LE-EU-L6-613-SC-RX Schlage Electrified Lever Lock Request to Exit

Product Description

The COMMAND ACCESS TECHNOLOGIES CL180LE-EU-L6-613-SC-RX is a Schlage Electrified Lever Lock designed for fail-secure operation. This device supports a request to exit function and is suitable for various applications. It is a low-energy option that operates within a voltage range of eleven to thirty volts AC/DC. This lock is ideal for environments requiring reliable, continuous duty performance.

• Grade 1 security specifications
• Low-energy cylindrical lock design
• Latchbolt retraction by key or inside lever

Product Highlights

Designed for secure environments, this lock provides easy access and exit with electronic control.

Product Information

Standard Information

• Lock Function: Fail Safe - Electronically Locked
• Handing: Non-Handed

Technical Specifications

• Height: 5 inches
• Length: 10 inches
• Width: 8.38 inches
• Door Thickness: 1-9/16 inches to 2-1/8 inches
• Backset: 2-3/4 inches
• Latch Throw: 1 inch
• Levers: L6 Lever
• Cylinder: Schlage inchCinch Keyway
• Finish: Satin Chrome
• Operating Voltage: 24 VAC/DC
• Surge Voltage: 400 mA @ 12V, 200 mA @ 24V
• Holding Current: 30 mA
• Solenoid Coil Resistance: 159.5
• Wire Raceway: 3/8 inches
• Certifications: ANSI/BHMA Grade 1, UL Listed 3-hour fire rating
• Warranty: 3-Year Manufacturer Warranty
