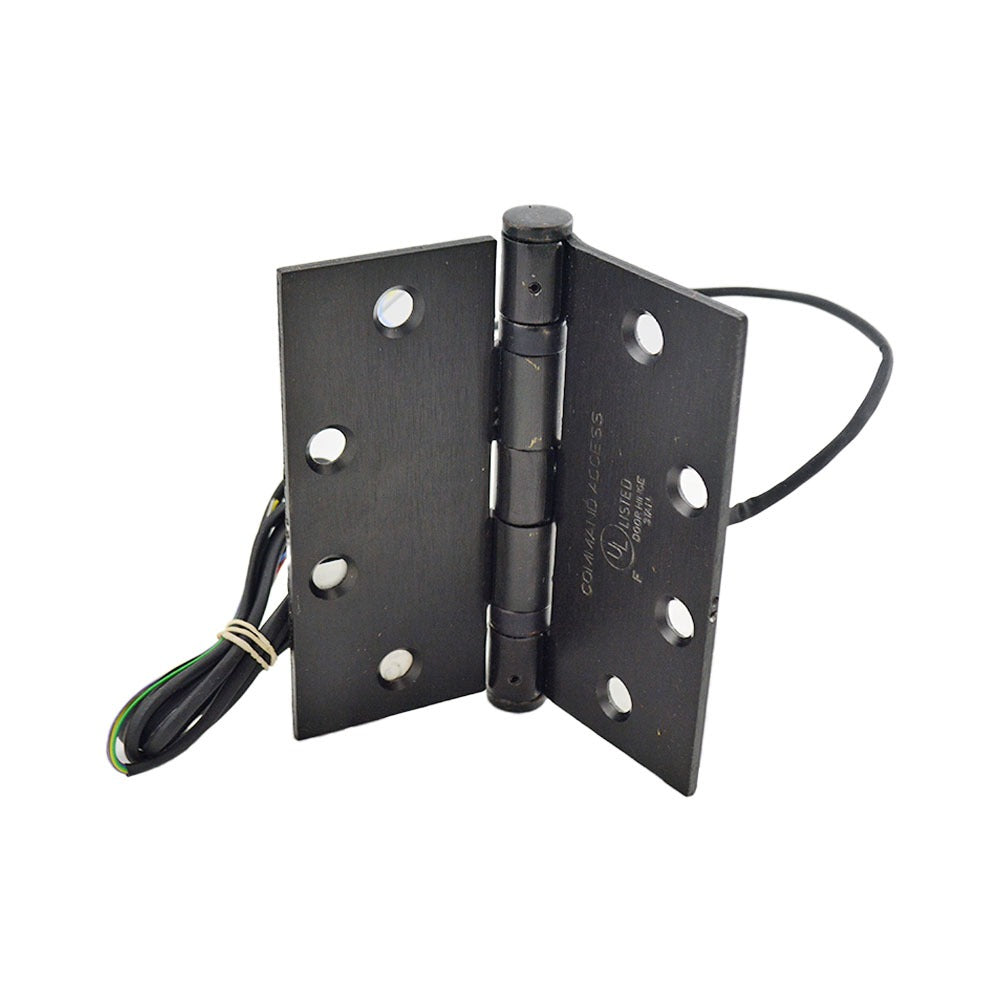

Command Access ETH8W4545613BB79 Electric Hinge 8 Wire

Product Description

The COMMAND ACCESS ETH8W4545613BB79 is an 8-wire electric hinge designed for use in electrified door hardware systems where power or signal transfer is required through the hinge point. Built on a steel base with a US10B Oil Rubbed Bronze finish, this hinge measures 4.5 inches by 4.5 inches and weighs 1.1 pounds. The 8-wire configuration supports access control, electric locking hardware, or monitoring functions routed through the door frame without exposed conduit. Licensed electricians and access control technicians are the primary installers.

This electric hinge is suited for commercial and institutional door openings where concealed wire routing through the hinge barrel is required. Typical applications include electrified exit devices, electric strikes, magnetic locks, and door position monitoring circuits. The steel base construction and Oil Rubbed Bronze finish make it appropriate for finish-matched hardware schedules on interior and exterior doors in commercial buildings. It ships as a single unit.

Key Features

• 8-wire configuration supports access control and electric locking device circuits
• 4.5 inch x 4.5 inch hinge size suits standard commercial door applications
• Steel base construction provides durability in high-cycle door openings
• US10B Oil Rubbed Bronze finish for hardware-schedule compatibility
• Concealed wire routing eliminates exposed conduit at the door edge

Compatibility

Designed as an OEM-style replacement or new-installation electric hinge for commercial door openings requiring concealed 8-wire power or signal transfer through the hinge point.

Installation Notes

Installation should be performed by a licensed access control technician or electrician familiar with low-voltage wiring and electrified door hardware. Disconnect and lock out all power to the access control system before removing or installing the hinge. Verify wire gauge and circuit load requirements against the connected device specifications before final termination. Local building and electrical codes, including applicable NEC provisions for access control wiring, should be consulted prior to installation.
