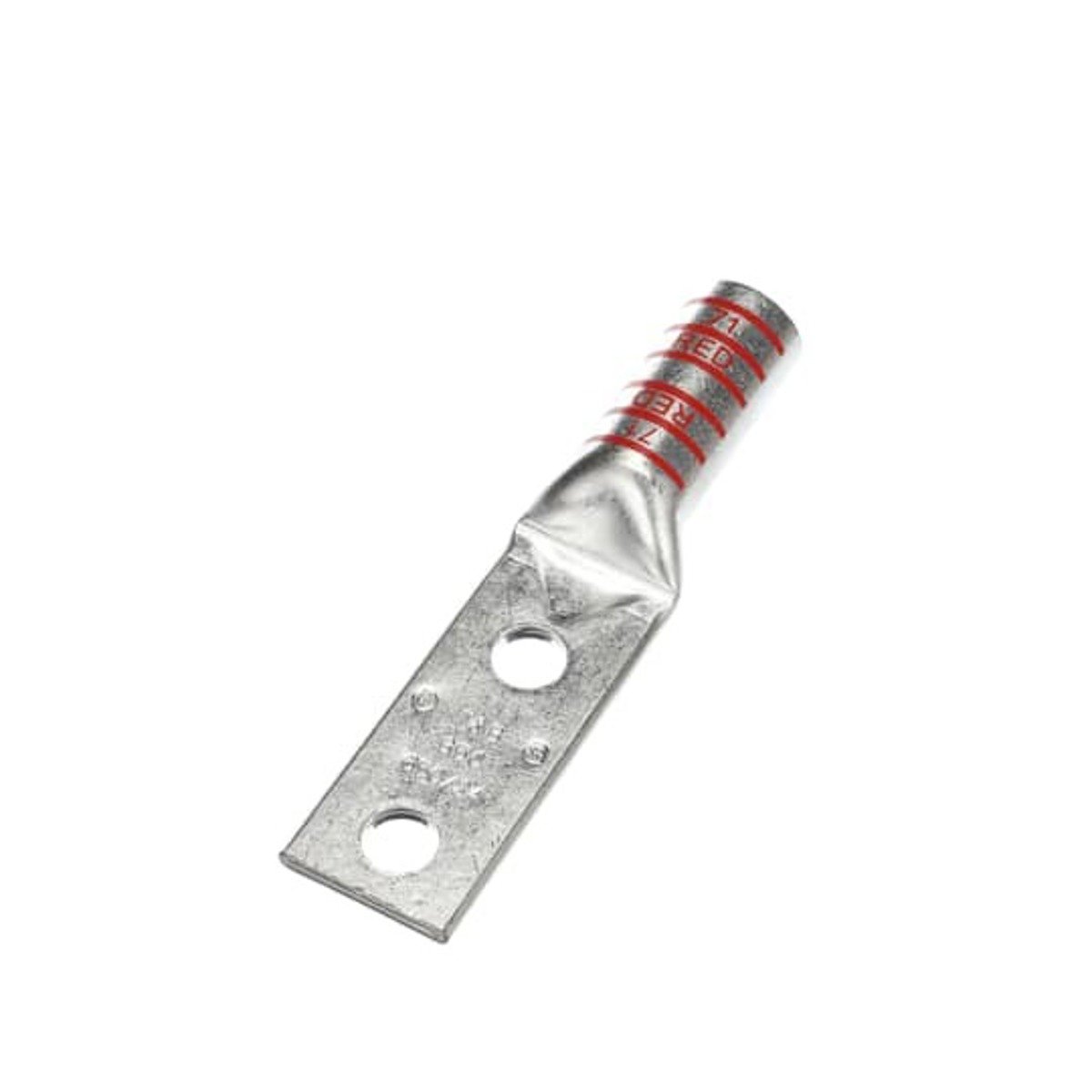

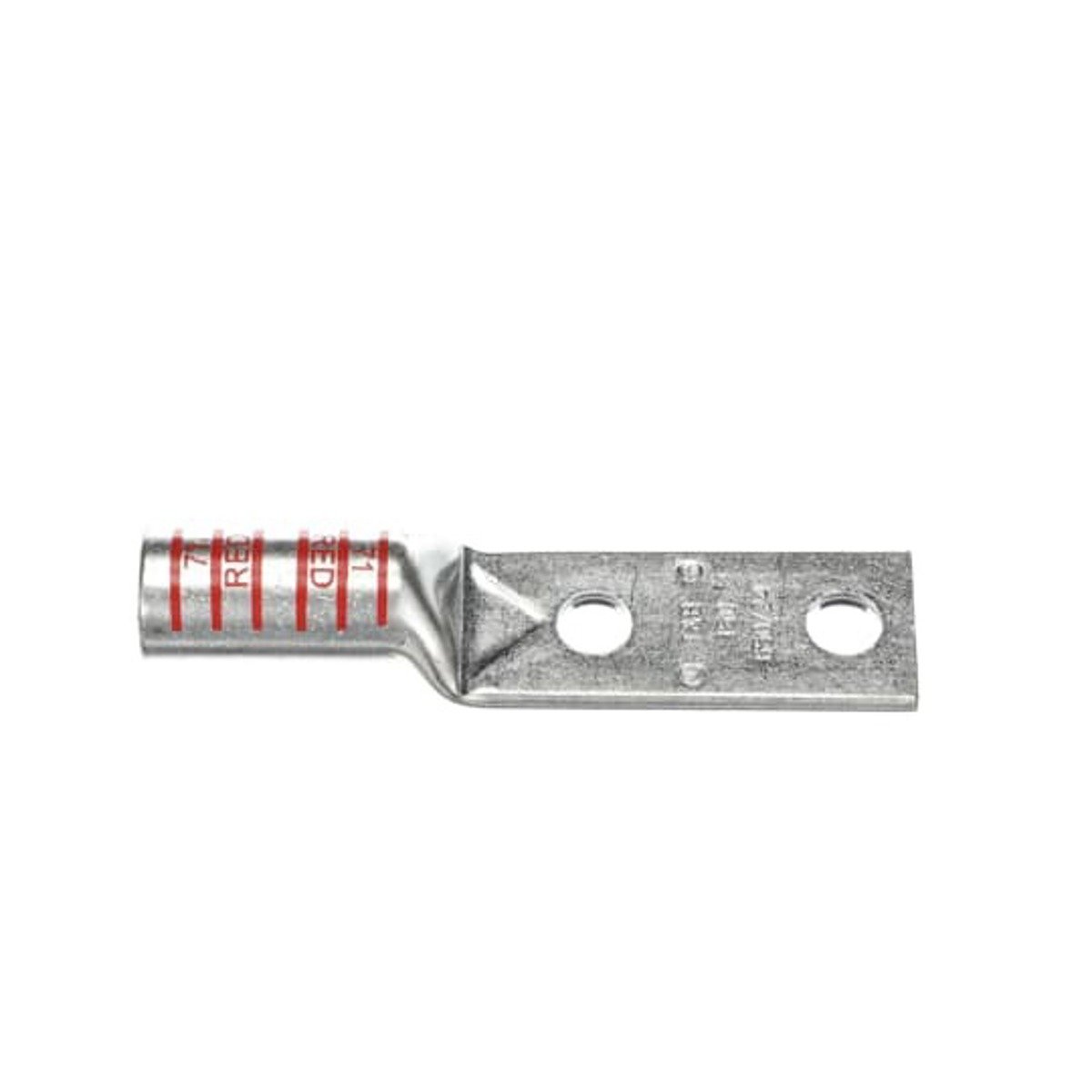

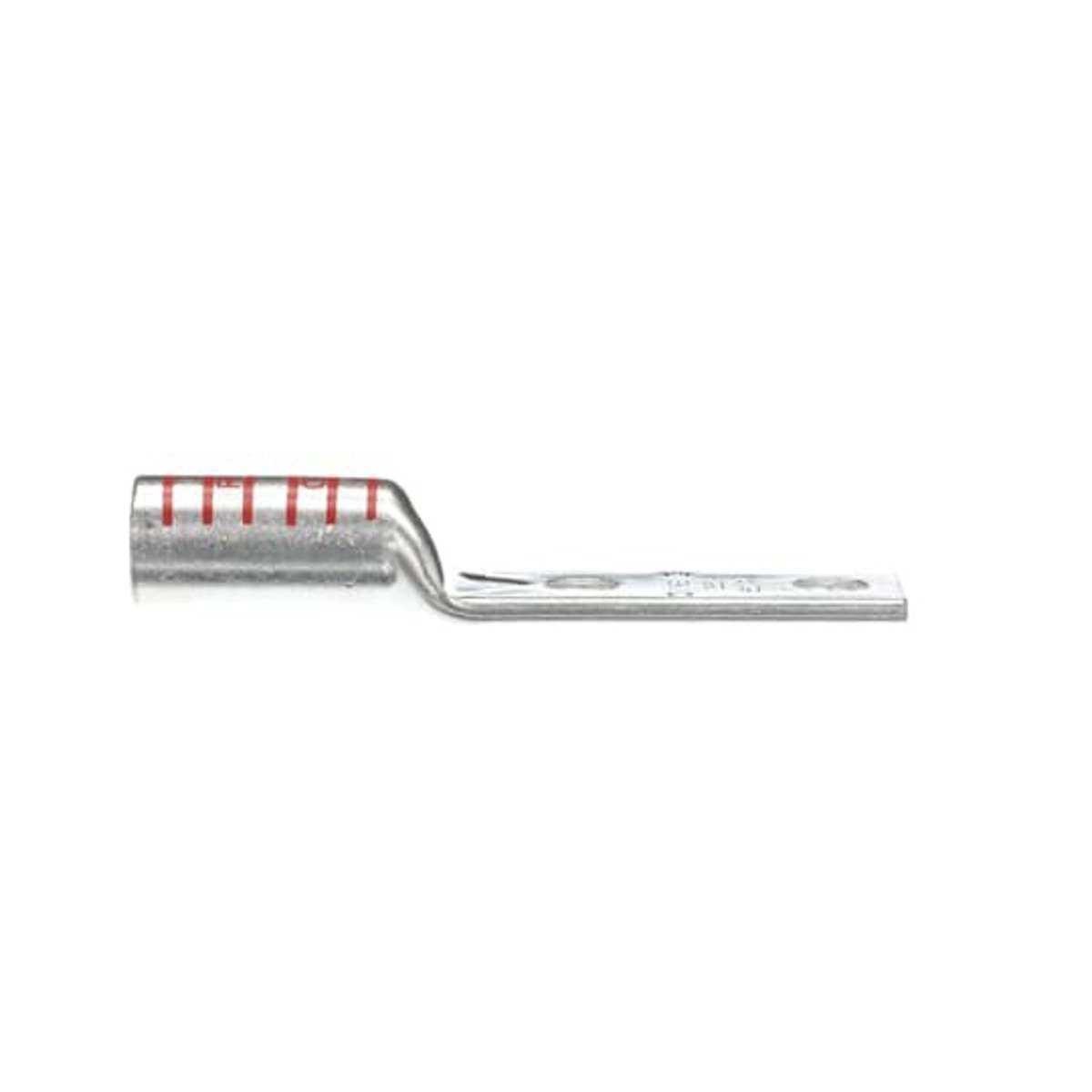

Color-Keyed 54872BE Compression Lug, 350 kcmil, 2-Hole Connector, Die Code 71

Product Description

The Color-Keyed Compression Lug, model number 54872BE, is designed for efficiency in electrical connections. This particular lug accommodates cables of up to 350 kcmil and is compatible with a 1/2 inch stud. It employs a unique color coding system that simplifies the crimping process, ensuring that the correct tool and die are used for installation.

• Two-hole design for secure fastening
• Rated for a maximum voltage of 35 kV
• Constructed from high conductivity copper and tin plated for enhanced durability

Product Highlights

The Color-Keyed compression lug is distinguished by its ease of use, allowing for high-quality connections at a low installed cost through its advanced design.

Product Information

Standard Information

• Brand: Color-Keyed
• Manufacturer: ABB - Installation Products

Technical Specifications

• Catalog Number: 54872BE
• Die Code: 71
• Stud Size: 1/2 inch
• Voltage Rating: 35 kV
• Cable Size: 350 kcmil
• Material: Copper
• Overall Length: 5.4 inches
• Barrel Diameter: 0.93 inch
• Stud Hole Spacing: 1-3/4 inch
• Color: Red
