Color-Keyed 54818 Connector SPLC 500KCMIL Copper 87

Product Description

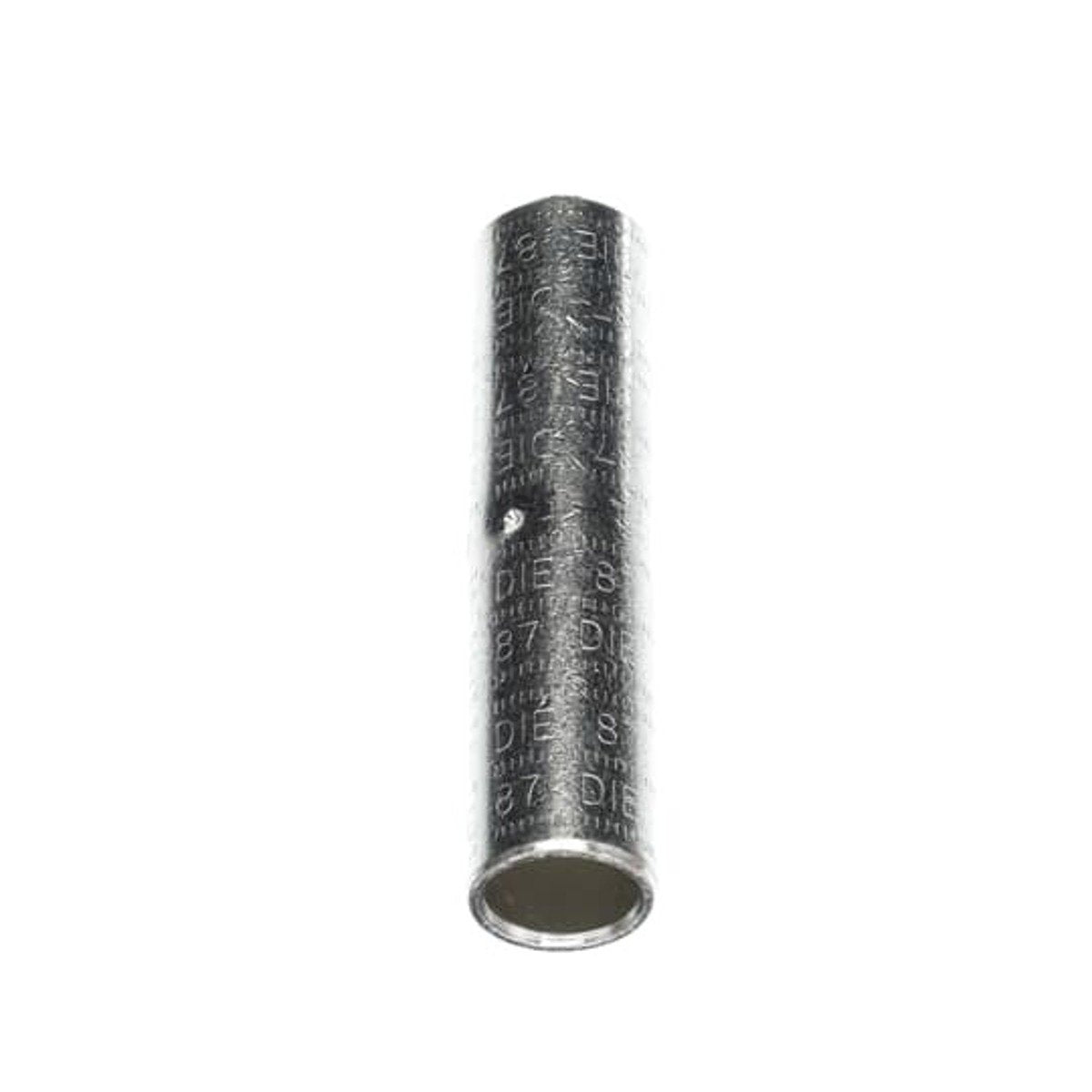

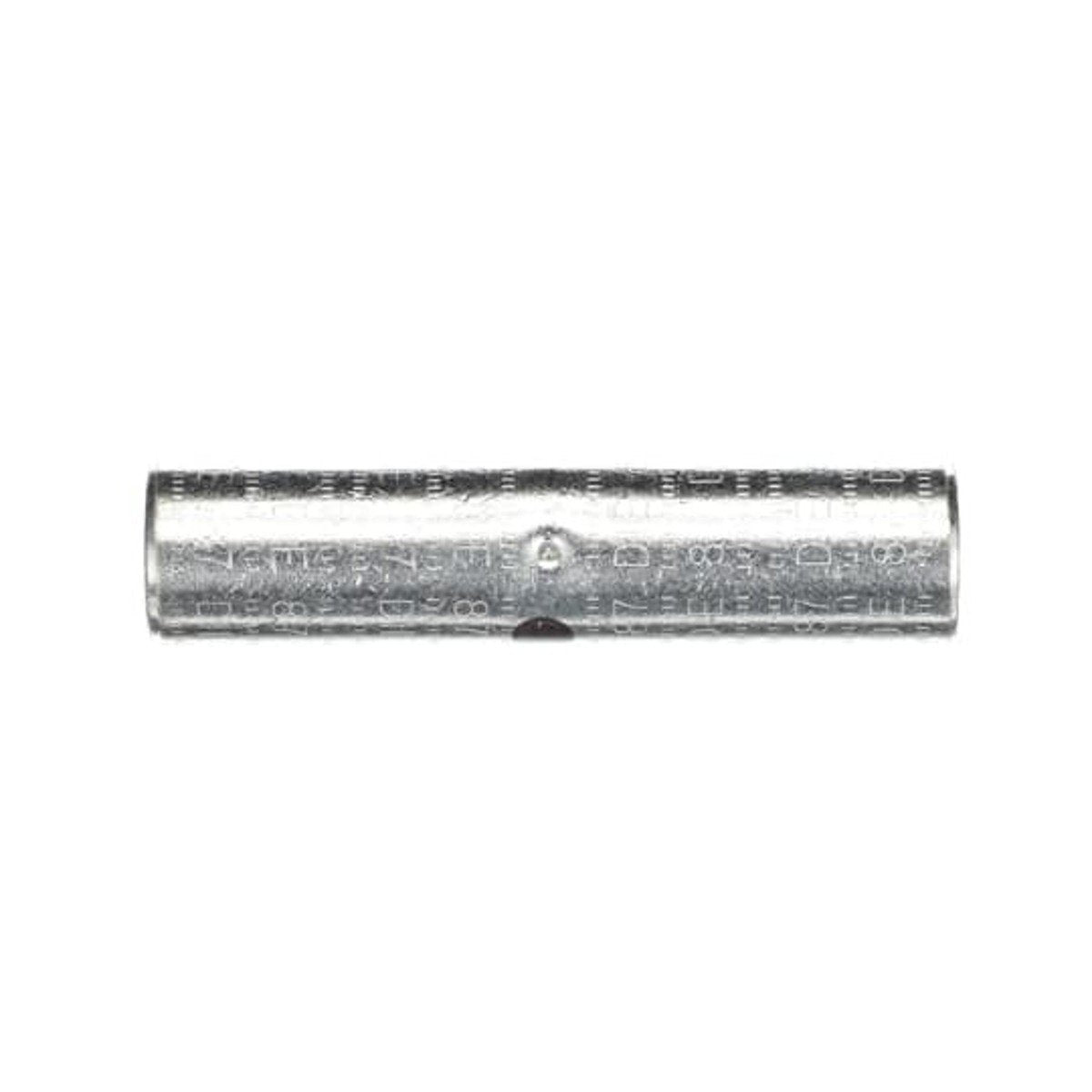

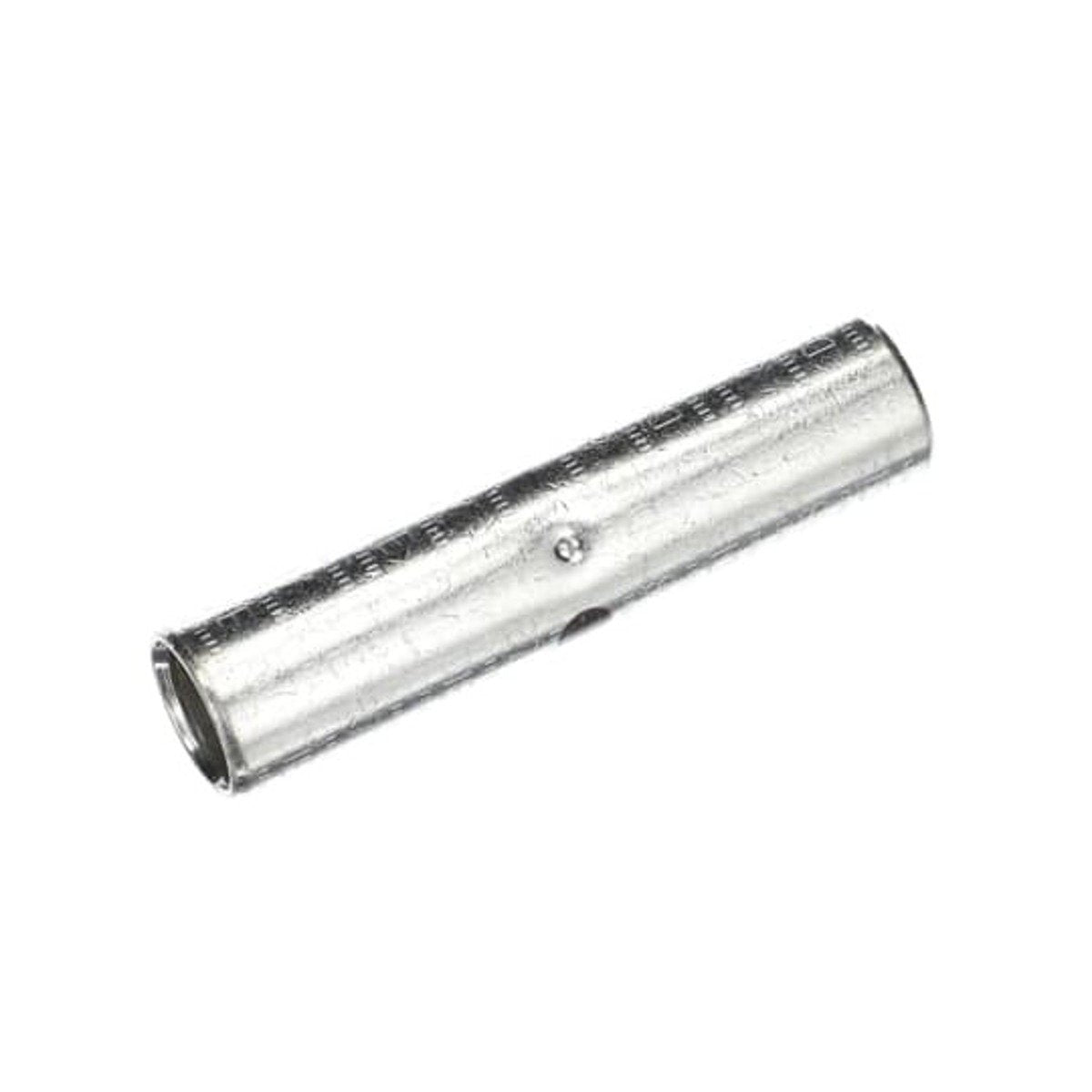

The Color-Keyed 54818 is a 2-way long barrel splice connector designed for use with 500 kcmil copper conductors. This product is made by ABB - Installation Products and features a die code of 87. It has a length of four and three-fourths inches and is rated for 600 VAC. This splice connector is premade with a tin plated finish and a brown color code, facilitating easy identification and installation.

• 2-way connector for high pullout values
• Color coded for easy matching with installation tools
• Rated for 35 kV voltage

Product Highlights

The product utilizes a color-coded compression system to ensure a secure crimp onto the conductor.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• Brand: Color-Keyed

Technical Specifications

• Catalog Number: 54818
• Type: 2-Way Long Barrel
• Length: 4-3/4 inches
• Die Code: 87
• Color Code: Brown
• Voltage Rating: 600 VAC
• Outside Diameter: 1.11 inches
• Conductor Size: 500 kcmil
• Material: Copper
• Finish: Tin-Plated
• Application: Certified up to 600 V, recommended up to 35 kV
• UPC: 786210548180
