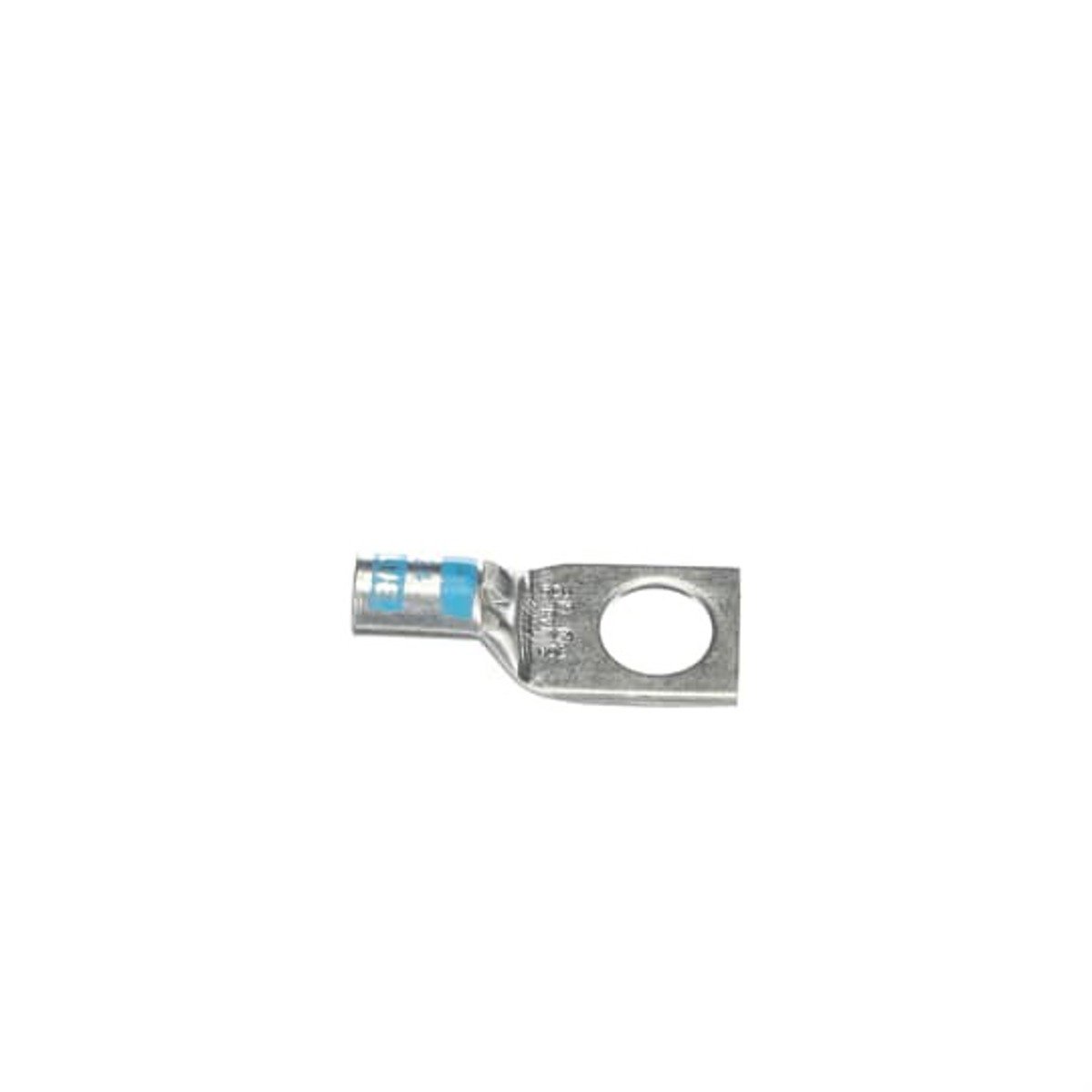

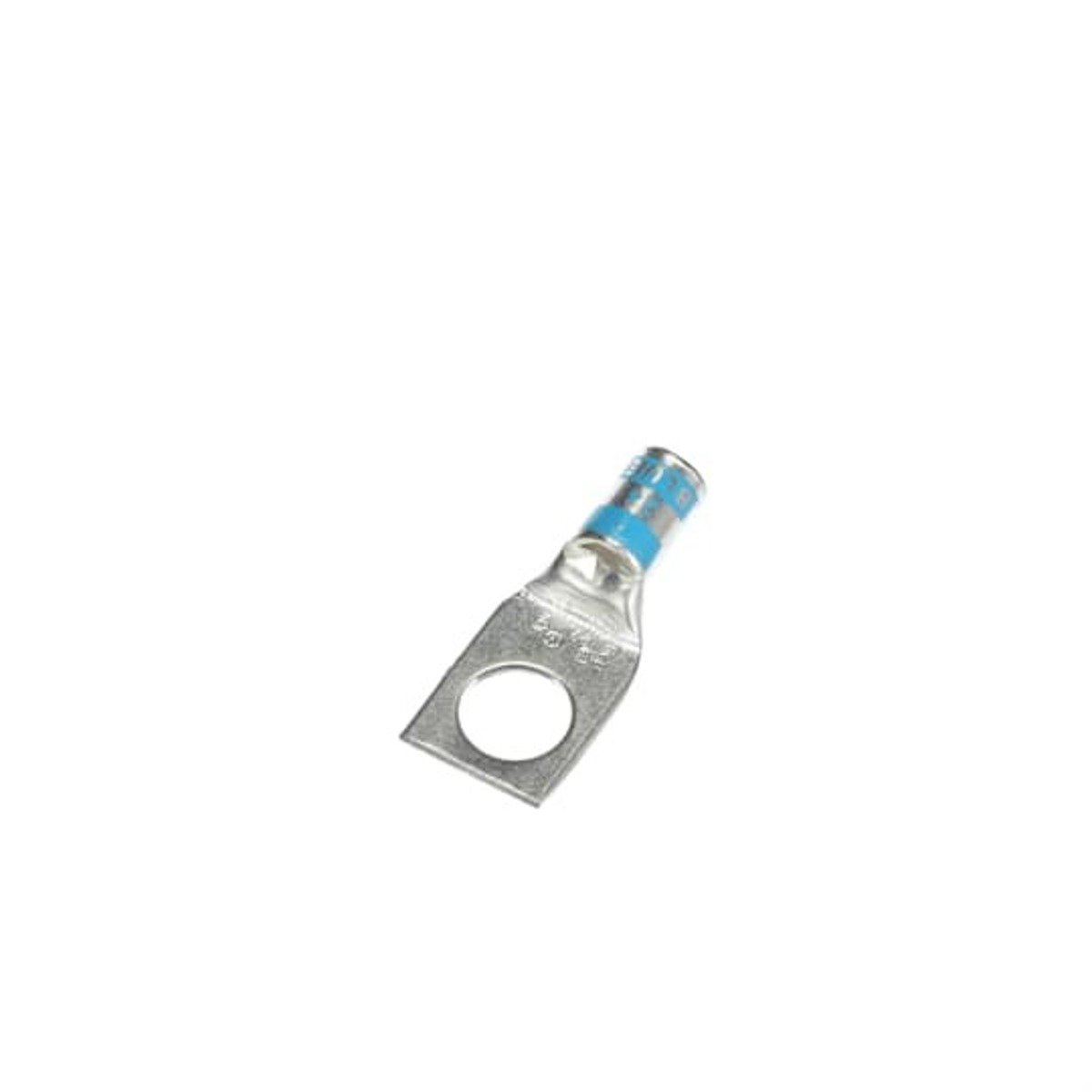

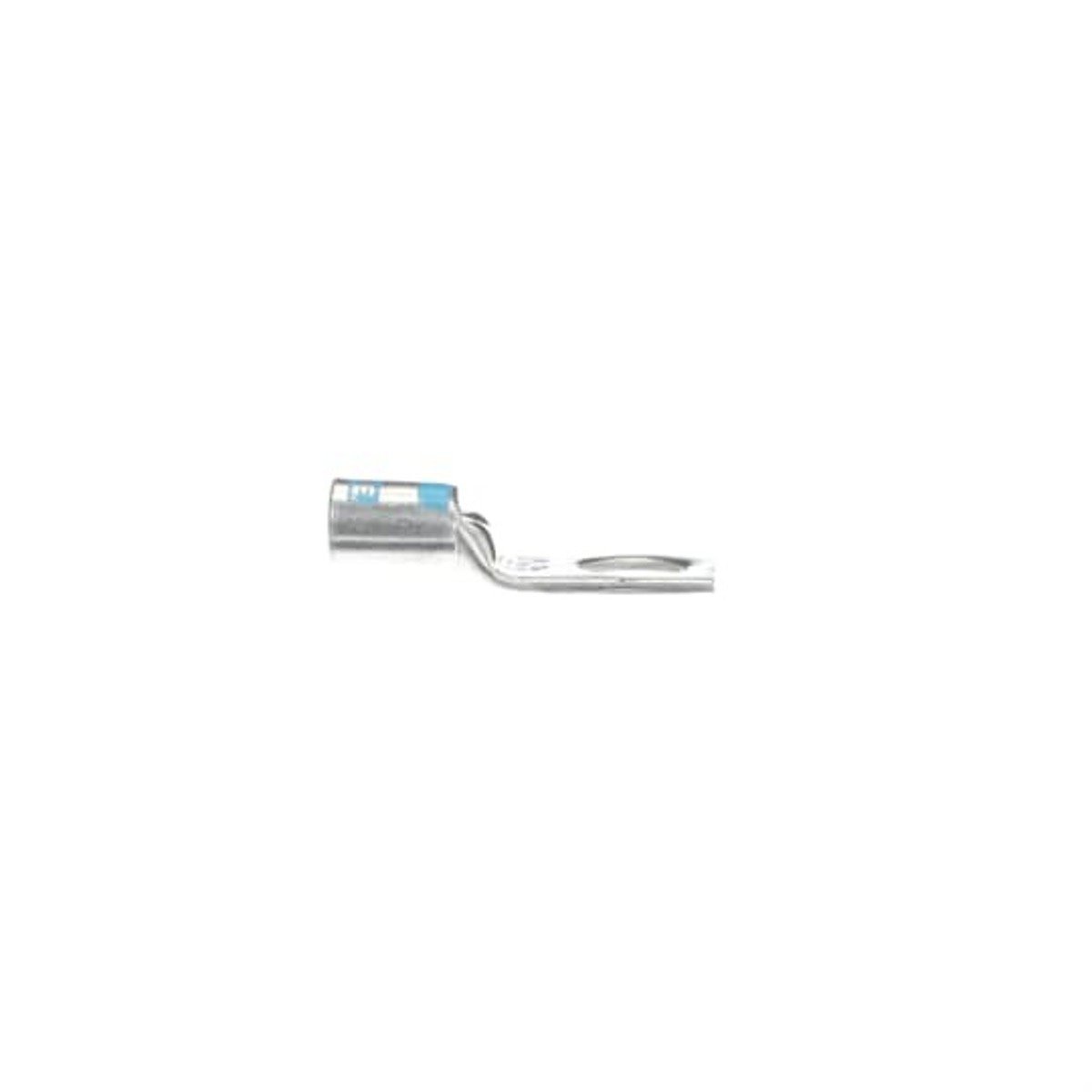

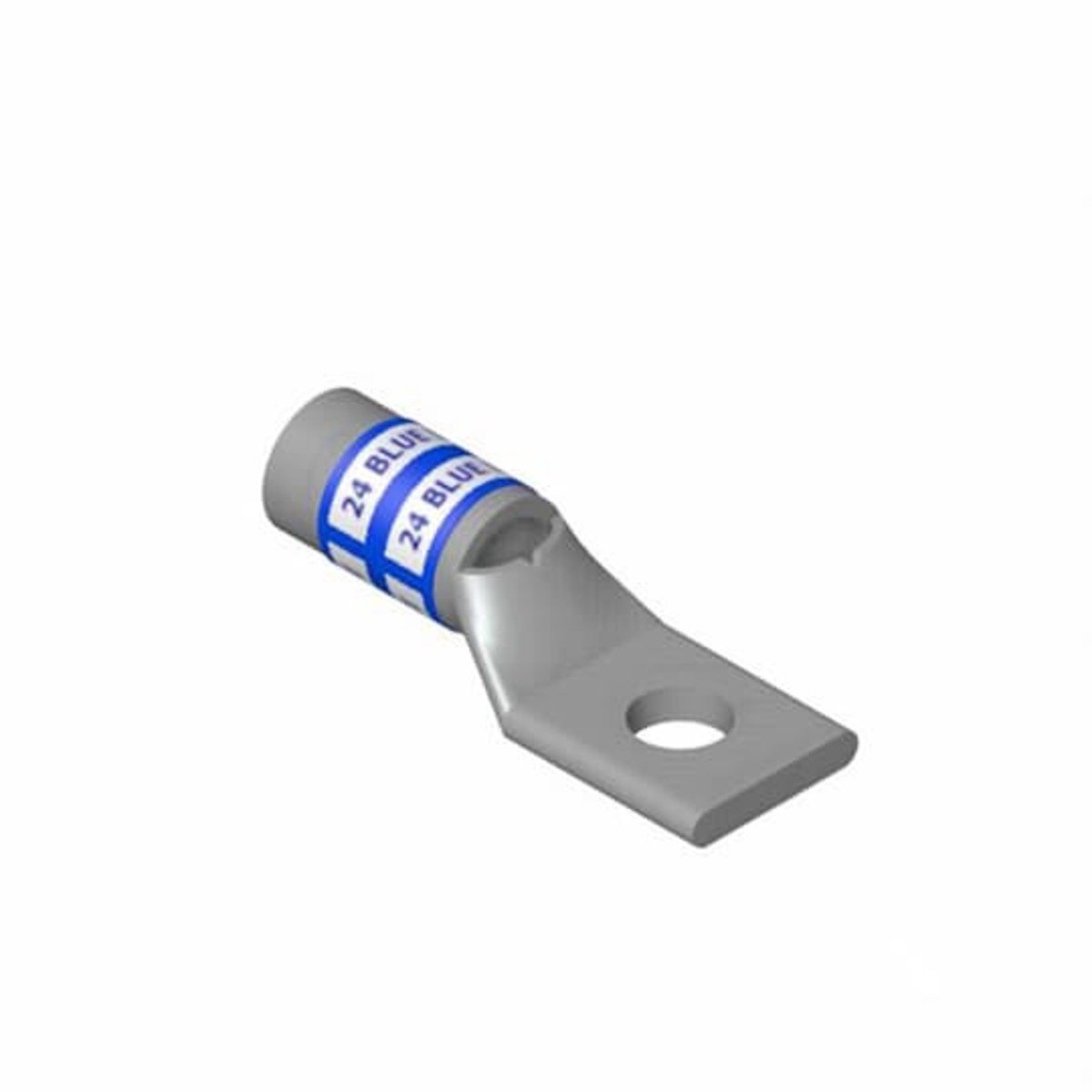

Color-Keyed 54136 Compression Lug, 1-Hole, 6 AWG, 24 Die Code, 3/8 Inch Stud

Product Description

Color-Keyed compression lug 54136 is designed for use with six AWG copper conductors. This product features a single-hole, non-insulated design and includes a peep hole for visual inspection of the conductor. It is compatible with a die code of twenty-four and is rated for a maximum voltage of thirty-five kV.

• Compatible with 6 AWG copper conductors
• 1-Hole design with a peep hole for easier installation
• Tin plated for improved conductivity and corrosion resistance

Product Highlights

This compression lug provides a reliable and durable connection in electrical wiring applications. The use of color coding ensures proper identification and use with the correct tools. Designed for efficiency, this lug is suitable for both commercial and residential wiring projects.

Product Information

Standard Information

• Catalog Number: 54136
• Manufacturer: ABB - Installation Products

Technical Specifications

• Material: Copper
• Voltage Rating: 35 kV
• Die Code: 24
• Stud Size: 3/8 inch
• Overall Length: 1.41 inches
• Barrel Size: 0.31 inch Diameter
• Color: Blue
• Number of Holes: 1
