Climax Metal Products C123M-45X75 Shaft Locking Device

Product Description

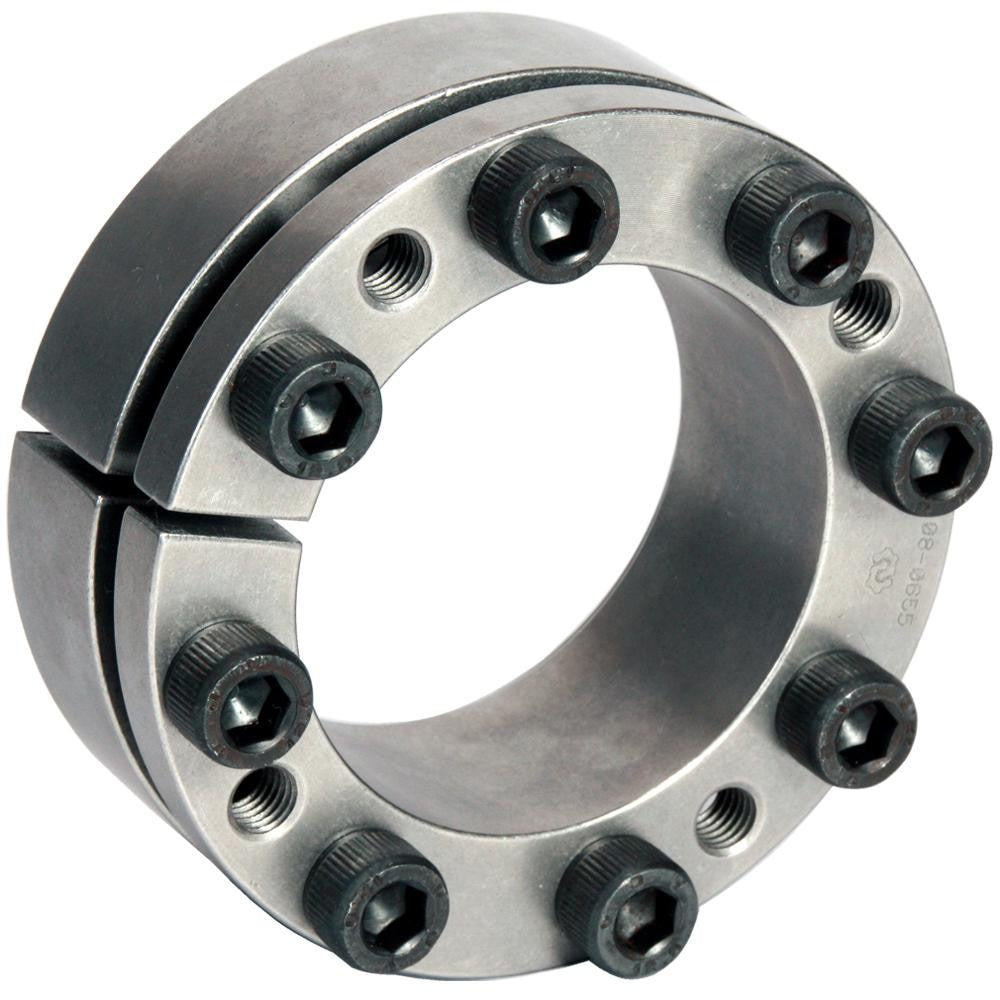

The CLIMAX METAL PRODUCTS C123M-45X75 is a shaft locking device engineered for secure, high-load axial clamping on rotating shaft assemblies. It features a 45mm bore diameter and 75mm outer diameter, with M8 thread fasteners and a 7-screw configuration that distributes clamping force evenly around the shaft. The device delivers a rated axial load capacity of 16,206 pounds, making it suitable for heavy-duty industrial drive and motion-control applications. The overall assembled width measures 2.953 inches, and the thrust ring width is 0.787 inches. Licensed mechanical and industrial technicians install this component as part of conveyor systems, gearbox assemblies, and other power-transmission equipment requiring rigid shaft retention.

This shaft locking device is designed for use in industrial machinery where reliable shaft-to-hub connection is critical. It fits applications requiring metric bore sizing at 45mm, including conveyor drives, pump shafts, fan assemblies, and general power-transmission systems. The M8 thread specification and 7-screw pattern suit mid-to-heavy load environments in both manufacturing and process industries. Installation is performed by qualified mechanical technicians following manufacturer torque sequences to achieve uniform clamping load across all fastening points.

Key Features

• 45mm bore diameter with 75mm outer diameter for precise shaft and hub fitment
• M8 thread, 7-screw configuration for even clamping force distribution
• Rated axial load capacity of 16,206 pounds for heavy-duty applications
• Overall assembled width of 2.953 inches for compact installation envelope
• Thrust ring width of 0.787 inches provides positive axial positioning
• Single-piece locking design eliminates the need for keyways or set screws

Compatibility

Designed as an OEM-style shaft locking device for industrial power-transmission assemblies requiring a 45mm metric bore and M8 thread fasteners.

Installation Notes

Installation should be performed by a qualified mechanical technician. Disengage and lock out all power sources to the drive system before installing or removing this device. Fasteners should be tightened in a cross-pattern sequence to the screw manufacturer specifications to achieve uniform clamping load. Do not exceed the rated axial load of 16,206 pounds during operation.
