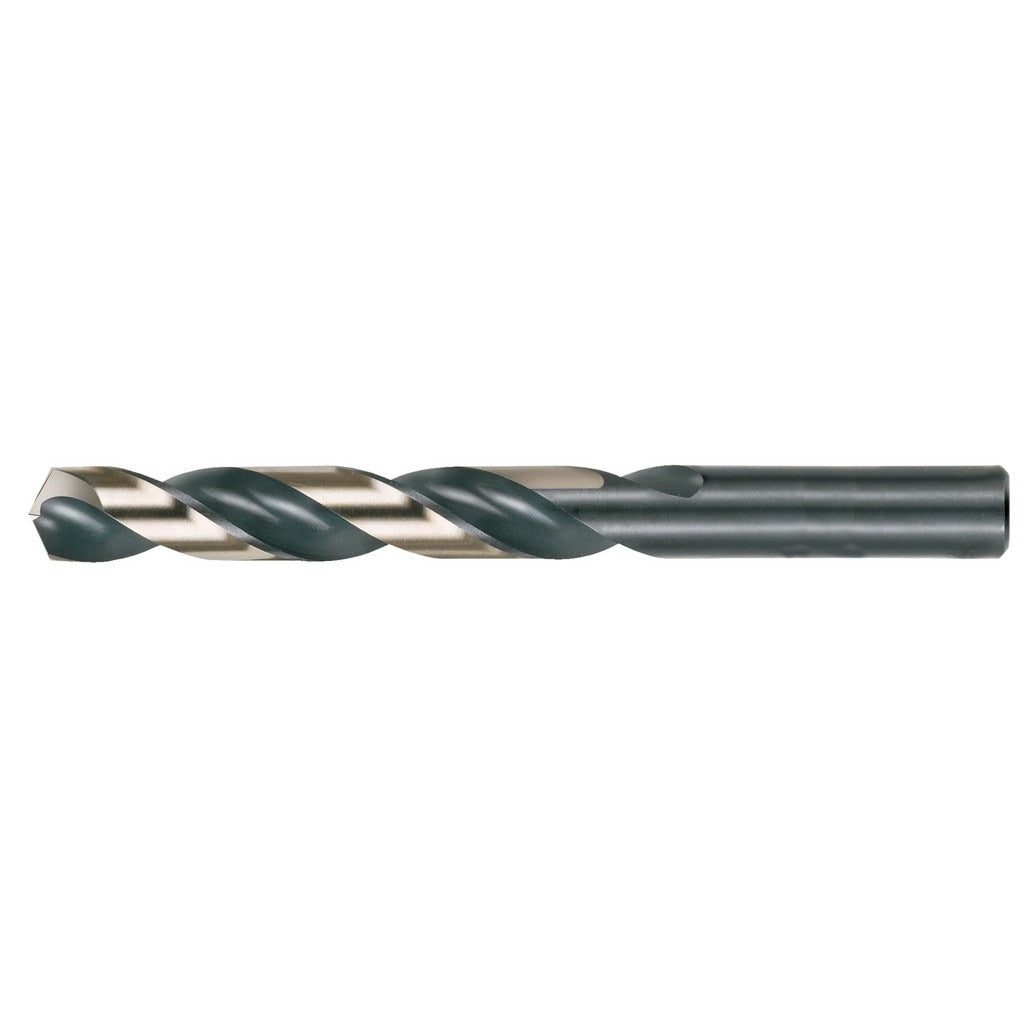

Cle-line C18100 Jobber Drill Bit Wire 47 Hss

Product Description

The CLE-LINE C18100 is a wire gauge jobber-length drill bit sized at No. 47 (0.0785 inches decimal equivalent) built from high-speed steel with a black and gold oxide coating. The 135-degree split point reduces walking on entry and requires less feed pressure compared to a conventional 118-degree point, making it well-suited for production drilling in steel and cast iron. The bit runs a regular spiral flute with a tapered web configuration and measures 2 inches overall length with a 1-inch flute length. It meets ASME B94.11M and DIN 338 standards and is rated heavy duty for high-performance applications.

This bit is intended for drilling steel and cast iron in light manufacturing, maintenance and repair, and fabrication environments. The straight cylindrical shank fits standard three-jaw drill chucks on benchtop drill presses, hand drills, and CNC drilling spindles set up for straight-shank tooling. Right-hand cutting direction is standard for conventional clockwise-rotation drilling. The No. 47 wire gauge size is commonly used for tapping pilot holes and close-tolerance work in metal plate and structural stock.

Key Features

• No. 47 wire gauge size - 0.0785 inch decimal equivalent for precise sizing
• 135-degree split point reduces drill walking and lowers required feed force
• High-speed steel construction with black and gold oxide coating for heat and wear resistance
• Regular spiral flute with tapered web for efficient chip evacuation
• Right-hand cutting, straight cylindrical shank - fits standard drill chucks without adapters
• Meets ASME B94.11M and DIN 338 standards; diameter tolerance +0.0000 to -0.0005 inches

Compatibility

Designed for drilling steel and cast iron workpieces; compatible with any standard three-jaw drill chuck or collet system accepting a 0.0785-inch straight cylindrical shank.

Installation Notes

Install in a properly sized drill chuck and tighten securely with a chuck key before operation. Ensure the workpiece is clamped or fixtured - never hold small stock by hand when drilling. Apply cutting fluid or coolant appropriate for the workpiece material to extend tool life, particularly in continuous or high-feed operations. Inspect the cutting edges for wear before each use and replace the bit if chipping or dullness is observed to maintain hole-diameter tolerance.
