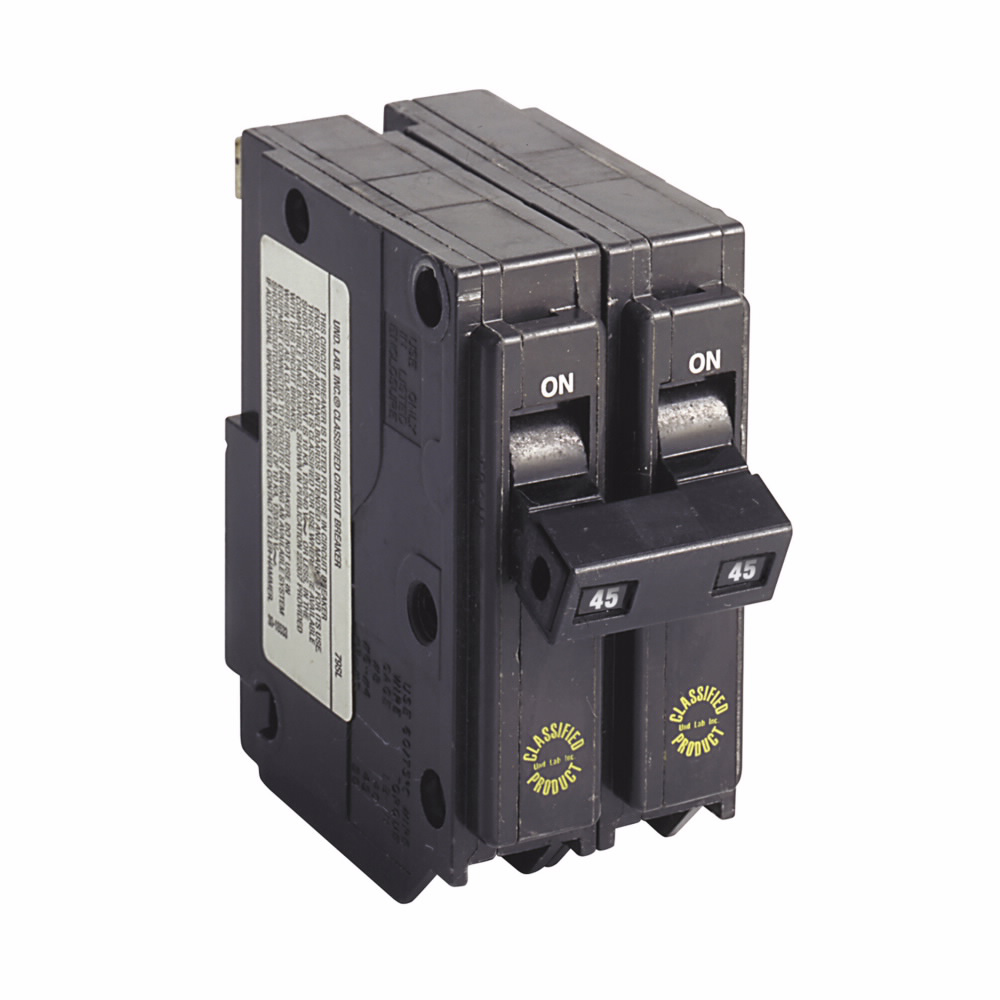

Eaton CHQ245 Type CHQ Classified Replacement Circuit Breaker, 120/240 VAC, 45 A, 2 Pole, 10 kAIC

Product Description

Eaton CHQ245 is a 3/4-inch Type CHQ classified replacement circuit breaker. It features a thermal magnetic design suitable for multiple applications. This circuit breaker handles up to 45 amps and can work at voltage levels of 120/240 volts. It is a two-pole breaker that is easy to install in standard load centers.

• UL classified as replacement for existing circuit breakers
• Includes clamshell packaging for protection
• Rated interrupt capacity of 10 kAIC

Product Highlights

Designed for reliability in power distribution, the Eaton CHQ245 is suitable for various applications, including industrial and commercial settings.

Product Information

Standard Information

• Catalog Number: CHQ245
• Manufacturer: Eaton

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 45 A
• Trip Type: Common breaker trip
• Number of Poles: 2
• Interrupt Rating: 10 kAIC
• Wire Size Compatibility: (1) 14 to 8 AWG, (2) 14 to 10 AWG
• Dimensions: 2.5 inches (length) x 1.5 inches (width) x 3 inches (height)
• Reset Type: Toggle handle actuator
