Chicago Die Casting 350-A-5/8 V-Grooved Pulley

Product Description

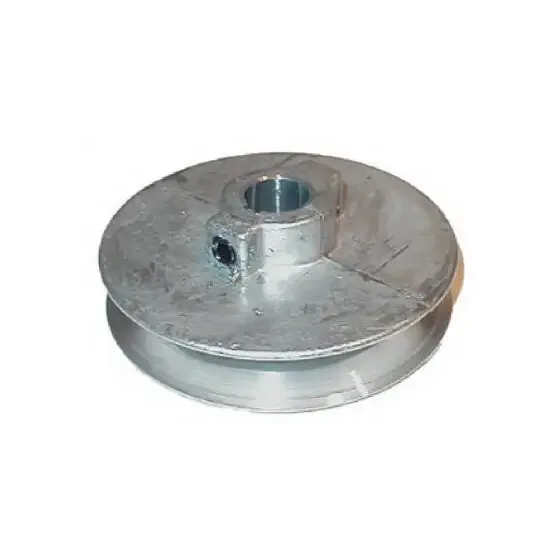

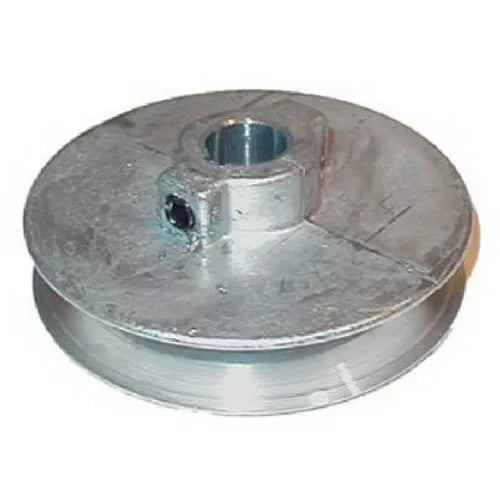

The Chicago Die Casting 350-A-5/8 is a V-grooved pulley made for A belts. It works well with four-lane or one-half inch by eleven-thirty-seconds inch belts. This pulley has a bore size of five-eighths inches and comes with set screws for easy installation. Made from zinc, it is ideal for a variety of power transfer tasks. Note that keyways are included except for certain smaller diameter pulleys.

• Designed for A belts.
• Five-eighths inch bore size.
• Includes set screws for secure mounting.

Product Highlights

This pulley is built for durability and functionality in various applications.

Product Information

Standard Information

• Brand: Chicago Die Casting
• MPN: 350-A-5/8

Technical Specifications

• Outside Diameter: 3.50
• Pitch Diameter: 3.25
• Bore Size: 5/8 inch
• Belt Size: 1/2 inch W x 11/32 inch Thick
• Face Width: 11/16 inch
• Keyway Size: 3/16 x 3/32 inch
• Material: Zinc
• Width: 1-7/32 inch
