Cherne 269867 CHE34KWIK 3/4 KWIK N SURE PLUG

Product Description

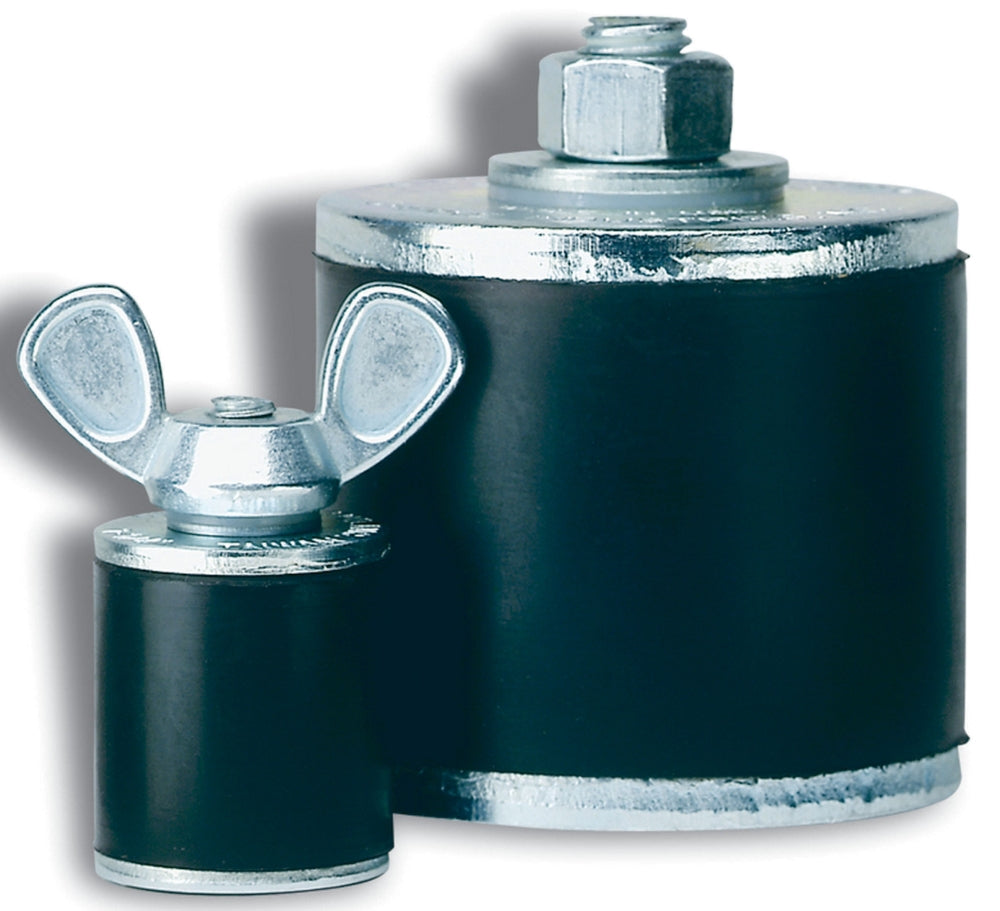

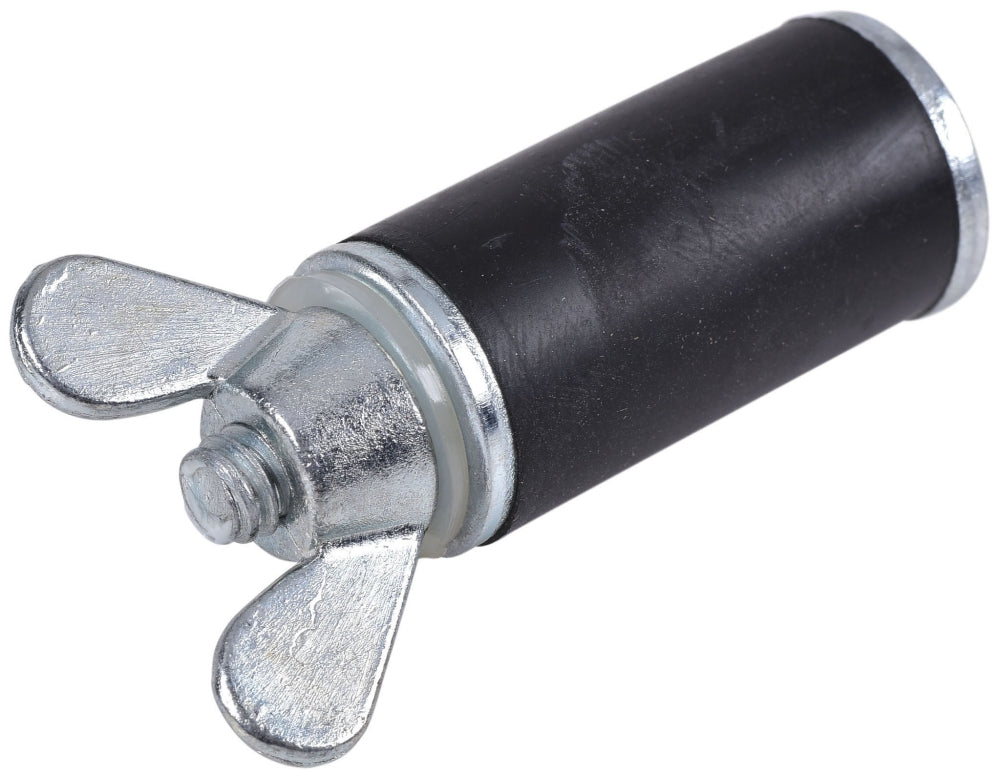

The Cherne 269867 is a mechanical test plug designed for high-pressure applications. This product is suitable for plugging water line stub-outs efficiently. The plug features a wing nut design for ease of operation, with a diameter of three quarters inches and a length of two point zero six inches.

• Mechanical operation type
• Includes natural rubber O-ring
• Suitable for pipes with a diameter from zero point seventy-two to zero point eighty-seven inches

Product Highlights

This mechanical test plug allows for reliable sealing under pressure and includes a natural rubber O-ring for enhanced performance. The plug is capable of withstanding back pressure of up to one hundred eighty PSI and a pressure head of four hundred fifteen feet.

Product Information

Standard Information

• Brand: Cherne
• UPC: 67511526986

Technical Specifications

• Plug Diameter: 3/4 Inch
• Plug Length: 2.06 Inch
• Operation Type: Mechanical
• Allowable Test/Back Pressure: 180 PSI
• Allowable Pressure Head: 415 Foot
• Pipe Usage Range: 0.72 to 0.87 Inch
• Applicable Standard: ISO 9001
• Features: Natural Rubber O-Ring, Plugging Water Line Stub-Out
