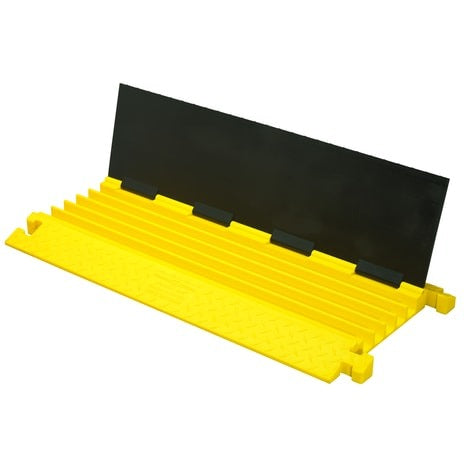

Checkers bb5-125-t-b/y 5-channel Cable Protector

Product Description

The CHECKERS bb5-125-t-b/y is a 5-channel hinged-lid cable protector designed to create a safe, protected crossing for electrical cables and hose lines in high-traffic areas. Built from all-weather polyurethane, it handles up to 12,000 pounds per axle and 6,000 pounds per tire, making it suited for vehicles and foot traffic in light entertainment and utility jobsites. Each channel accommodates cables or hoses up to 1.25 inches in outside diameter. The diamond plate tread surface increases traction for pedestrians and wheeled equipment crossing over the unit. The T-Connector configuration allows modular sections to join at perpendicular angles for flexible layout options. Color is black lid with yellow base for high visibility.

This cable protector is used in temporary power distribution, event staging, outdoor utility setups, and light industrial applications where cables or hoses must cross active pathways. The modular interlocking design lets techs and crew quickly assemble multi-section runs across driveways, pedestrian walkways, or event floors. The hinged lid allows fast cable insertion and removal without disconnecting sections. It is particularly common in entertainment production, facility maintenance, and outdoor event power management where tripping hazards must be controlled.

Key Features

• 5 channels accommodate cables or hoses up to 1.25 inches outside diameter
• All-weather polyurethane construction withstands outdoor exposure
• Diamond plate tread surface provides maximum traction for foot and vehicle traffic
• Hinged lid design allows fast cable loading and removal
• T-Connector included for perpendicular modular connections
• Black lid and yellow base provide high-visibility contrast in work areas

Compatibility

Designed for use with the Checkers Bumble Bee modular cable protector system. Compatible with other Bumble Bee series sections using T-Connector or Dog Bone connector configurations.

Installation Notes

Installation requires no tools for basic assembly. Power down or de-energize cables before routing them through channels whenever electrical safety codes require it. Ensure the unit is positioned on a flat, stable surface and that interlocking connectors are fully seated before allowing traffic to cross. Follow applicable site safety and temporary electrical installation guidelines when deploying in occupied work or event areas.

Technical Specifications

• Number of Channels: 5
• Max Cable Outside Diameter: 1.25 inches
• Channel Width: 1.25 inches
• Load Capacity Per Axle: 12,000 pounds
• Load Capacity Per Tire: 6,000 pounds
• Length: 36 inches
• Width: 17.5 inches
• Height: 2 inches
• Connector Type: T-Connector
• Color: Black Lid / Yellow Base
• Material: Polyurethane
• Quantity Included: 1
• UPC: 812542022118

Standard Information

• Brand: CHECKERS
• Manufacturer Part Number: bb5-125-t-b/y
