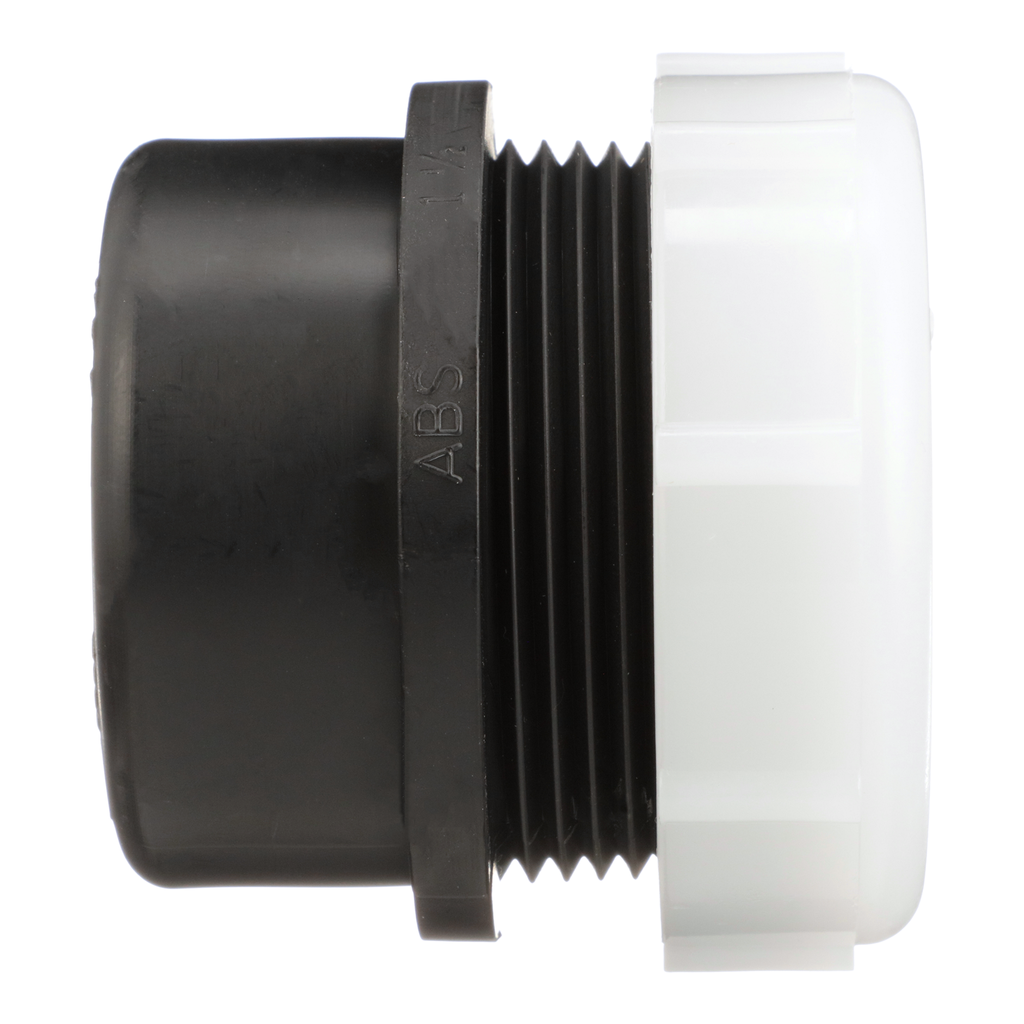

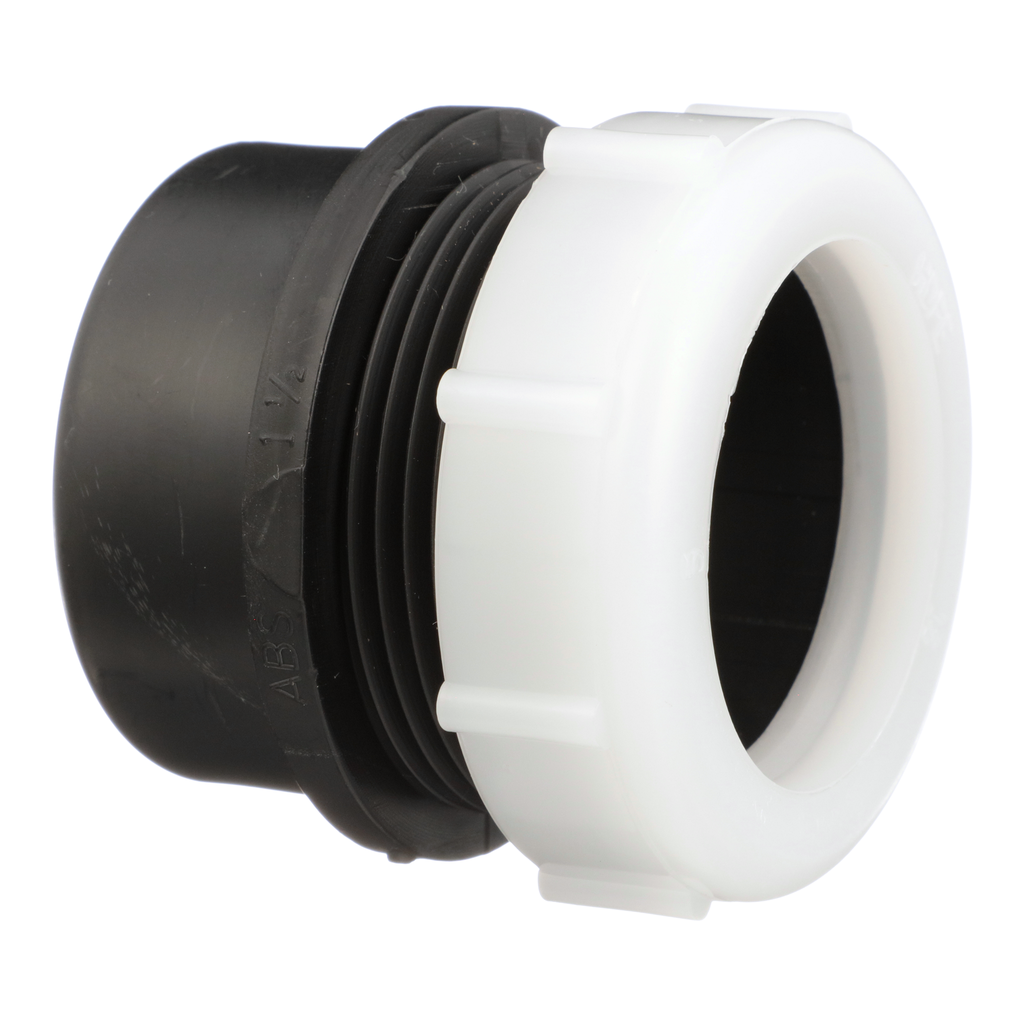

Charlotte 103-P Abs Fittings - 103-P

Product Description

The CHARLOTTE 103-P ABS fittings are designed for drain, waste, and vent purposes within gravity-fed waste elimination systems. These fittings are suitable for non-pressure systems where temperatures do not exceed 140°F. ABS materials are lightweight and easy to install, requiring no special cutting tools.

• Lightweight, easy to install
• NSF STANDARD 14
• Not intended for pressure use

Product Highlights

Ideal for drain, waste, and vent applications, these ABS fittings offer easy installation and are suitable for systems up to 140°F.

Product Information

Standard Information

• Brand: CHARLOTTE
• Manufacturer Part Number: 103-P
• Country of Origin: USA

Technical Specifications

• Color: Black
• Connection Type: Spigot x Slip
• Fitting Size: 1-1/2 x 1-1/4 in
• Fitting Type: Adapter
• Material: ABS
• Schedule Rating: SCH 40
• Temperature Rating: 140 deg F
• Nominal Connection Size 2: 1-1/4"
• Nominal Connection Size 1: 1-1/2"
• Min Working Temperature: 32 deg F
• CSA Listed: YES
• Connection Design 2: Slip
• Max Working Temperature-Degrees F: 140
• Application: DWV (DRAIN, WASTE AND VENT)
• Material Type: ABS
• Connection Design 1: Spigot
• Material Standard: ASTM D 2665, F 1866
• Domestic/Import: Domestic
