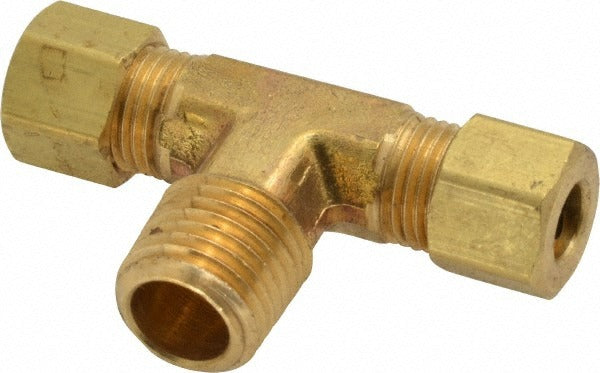

Cerrobrass 72A-4B Compression Male Branch Tee 1/4 in

Product Description

The CERROBRASS 72A-4B is a brass compression tube male branch tee designed to create a branch connection in a tubing line while providing a threaded male NPT outlet. The fitting uses compression connections on two ports and a 1/4 NPT male threaded connection on the branch port, making it suitable for small-diameter tubing assemblies in refrigeration, HVAC, and fuel systems. It is rated to 400 psi maximum working pressure and carries an SAE standard designation. The 7/16-24 thread spec and 1/4 inch outside diameter tube compatibility position this fitting for precision tubing work typically performed by licensed HVAC technicians and refrigeration mechanics.

This fitting is used in applications requiring a tee branch off a 1/4 inch OD compression tube line with a male NPT takeoff, common in refrigeration tubing circuits, fuel line assemblies, and instrument line installations. It performs across a wide temperature range, from -65 degrees F to 212 degrees F (100 degrees C), making it suitable for both low-temperature refrigeration environments and standard HVAC service conditions. The all-brass construction resists corrosion in typical trade service conditions.

Key Features

• Compression x Compression x MNPT end connections allow branch tee installation without soldering or brazing
• 400 psi maximum working pressure rating for reliable performance in pressurized tubing systems
• Brass construction provides corrosion resistance in refrigeration, HVAC, and fuel system environments
• SAE standard compliance for use in regulated and specification-driven installations
• Wide service temperature range from -65 degrees F to 212 degrees F
• 1/4 inch NPT male branch port integrates directly with standard pipe thread components

Compatibility

Designed for use with 1/4 inch OD compression tubing systems requiring a male branch tee fitting with a 1/4 NPT threaded outlet, conforming to SAE standards for compression tube fittings.

Installation Notes

Installation is typically performed by licensed HVAC technicians or refrigeration mechanics. Depressurize and isolate the tubing circuit completely before removing or installing any compression fitting. Ensure tubing ends are cut square, deburred, and free of contamination before seating in the compression fitting. Follow applicable SAE and local mechanical code requirements for tubing system assembly and pressure testing.
