CENTROTHERM ISVKH02 InnoFlue 2 Horizontal Vent Kit

Product Description

The CENTROTHERM ISVKH02 InnoFlue horizontal vent kit is designed for efficient sidewall exhaust termination. This kit caters to shorter horizontal installations and includes essential fittings and accessories for vent runs. Constructed from polypropylene, it can withstand temperatures up to 230 degrees Fahrenheit (110 degrees Celsius).

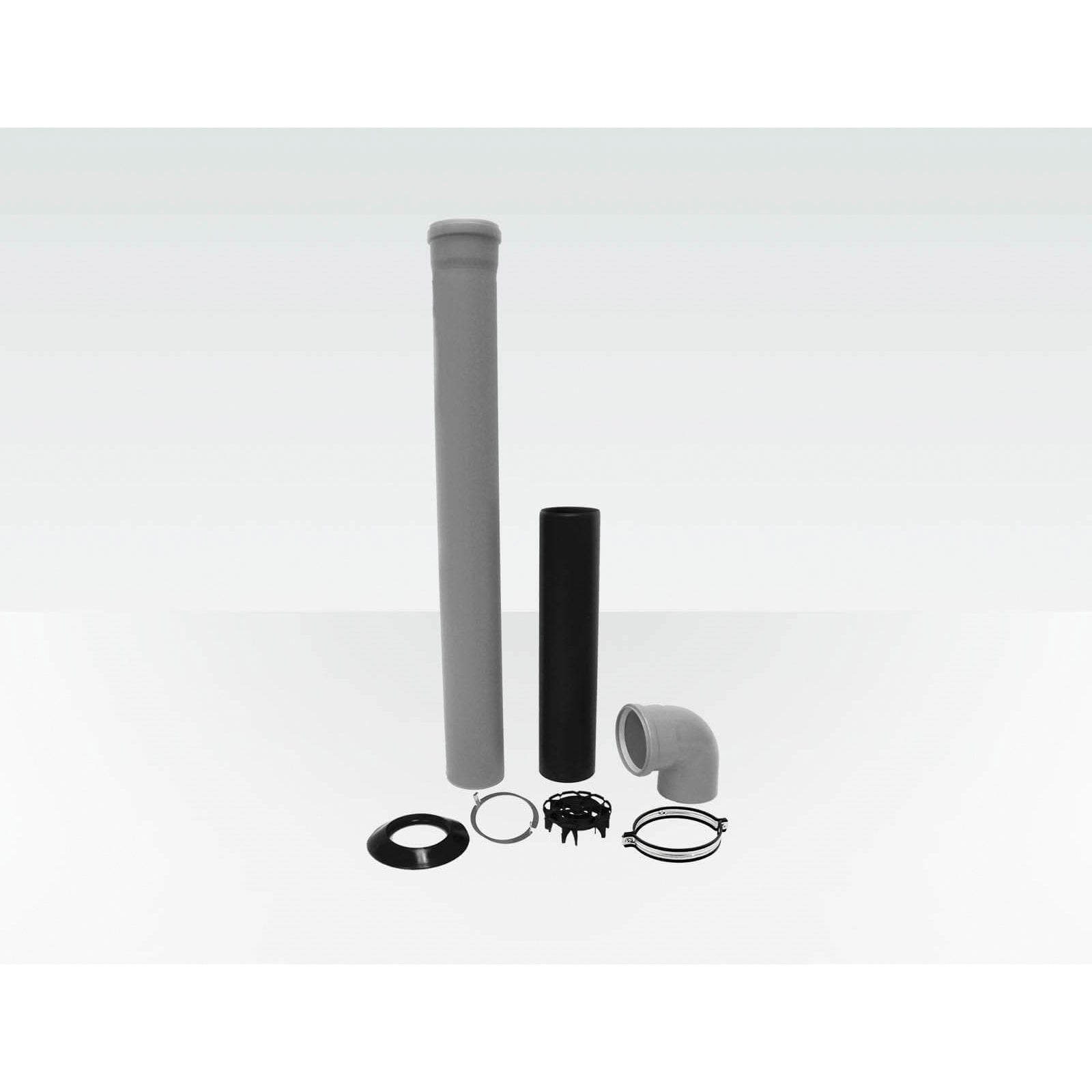

• Includes all necessary components such as a bracket, inner plate, outer plate, clamp, and bird protection.
• Compatible with single wall systems.
• Meets UL 1738 and ULC S636 compliance standards.

Product Highlights

This vent kit is reliable and easy to install, making it a robust choice for various venting applications.

Product Information

Standard Information

• Brand: CENTROTHERM
• MPN: ISVKH02

Technical Specifications

• Trade Name: InnoFlue
• System Type: Single wall
• Diameter: 2 inches
• Flue Pipe Diameter: 60 mm / 2 inches
• Material: PPs
• Flue Pipe Material: PPs
• Maximum Temperature Resistance: 120 degrees Celsius
• Certifications: UL 1738 - ICC-ES / ULC S636 - ICC-ES
• Length: 243 mm / 9.6 inches
• Height: 1056 mm / 41.6 inches
• Width: 243 mm / 9.6 inches
• Net Weight: 1.73 kg / 3.8 lbs
• Gross Weight: 1.73 kg / 3.8 lbs
