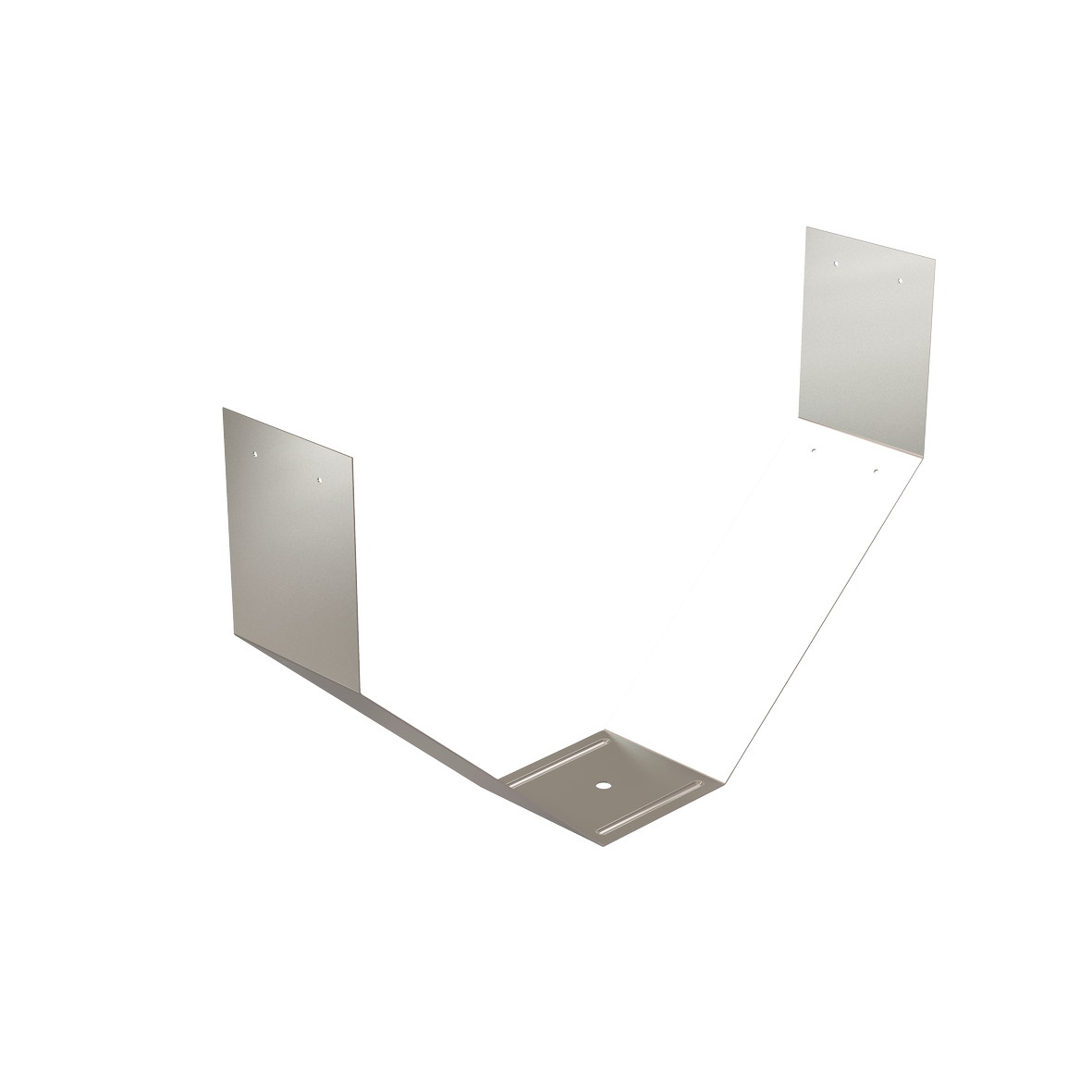

Centrotherm Eco Systems IABVSB B-Vent Support Bracket

Product Description

The Centrotherm Eco Systems IABVSB B-Vent Support Bracket replaces the metal channel on the base support, providing support to vertical sections of rigid and flexible vent lengths installed inside a B-Vent. It fastens to floor joists and integrates with InnoFlue Base Supports. It provides a solution for vertical runs and common exhaust system issues.

• Provides vertical support to vent systems.
• Evaluated to UL1738 and ULCS636 by ICC.
• Installs quickly & easily without glues, primers, or solvents.
• Seamlessly integrates with InnoFlue Flex and Single Wall.

Product Highlights

The B-Vent Support Bracket provides load-bearing support when mounted between floor joists. It is suitable for use with InnoFlue Polypropylene Vent Systems.

Product Information

Standard Information

• Brand: CENTROTHERM ECO SYSTEMS
• Manufacturer Part Number: IABVSB
• Country of Origin: Domestic

Technical Specifications

• Material: Steel
• Suitable For Use With: InnoFlue® Polypropylene Vent Systems
• Product Name: B-Vent Support Bracket
• Trade name: InnoFlue
• Part number: 250410003460
• Length gross: 18.5 inch
• Height: 4 inch
• Width: 11.5 inch
• Net weight: 1.3 lbs
• Certificates (US/CAN): UL 1738 – ICC-ES / ULC S636 – ICC-ES
• Fitting/Connector Type: Support
• Brand: Centrotherm Eco Systems
• Manufacturer: Centrotherm Eco Systems
• Manufacturer Part Number: IABVSB
• Warranty: 10 Years Limited
• Listings: cETLus Intertek Listed|Category II, III and IV Gas Vent BH|Class II C Gas Vent BH|UL-1738|ULC-S636
• Application: Residential and Flex
