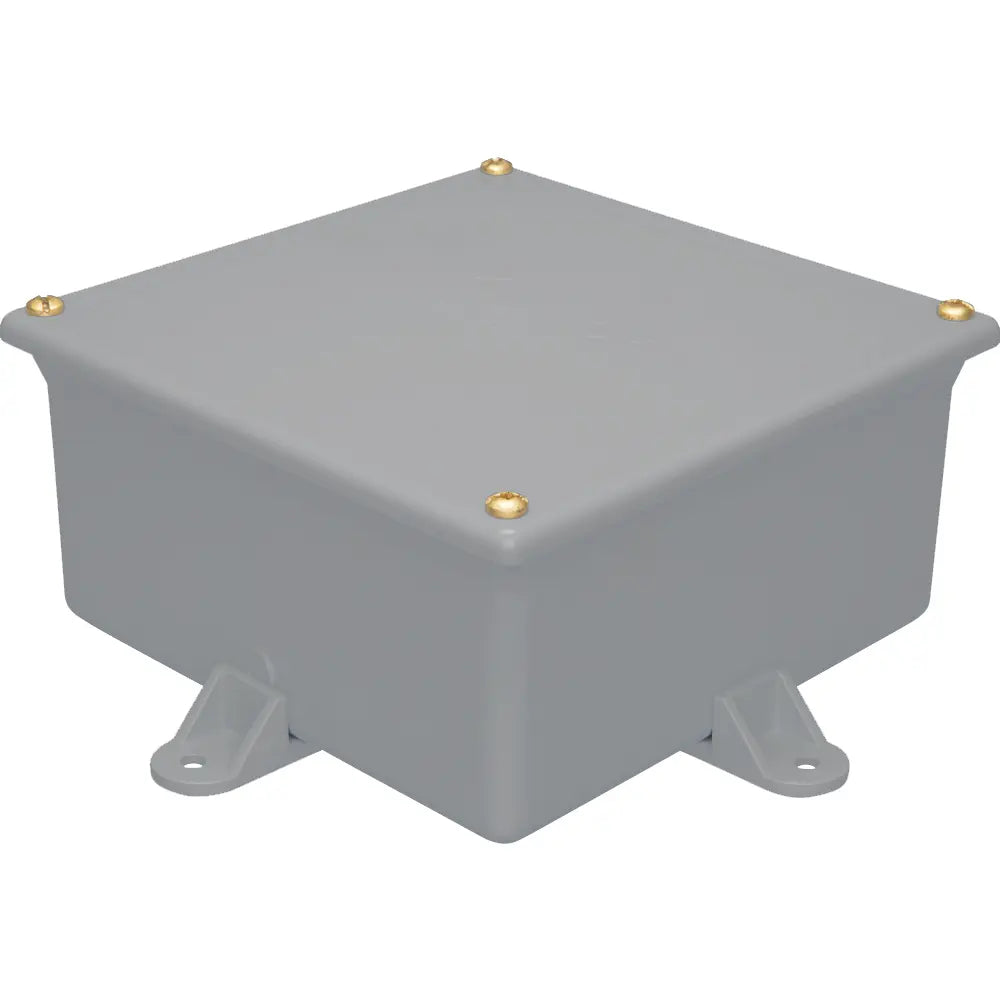

Centaur JB884 Junction Box 8X8X4

Product Description

The Centaur JB884 Junction Box is designed for electrical installations. It features a cubic capacity of two hundred fifty cubic inches and dimensions of eight point eight twelve inches in length, eight inches in width, and four inches in height. This PVC junction box weighs three point ten pounds. It includes gasketed insulation and a screw cover for mounting.

• Supports top, bottom, and side cable entry.
• Includes knockouts on all sides.
• Rated for NEMA Types 1, 2, 3, 4, 4X, 6P, 12, and 13.

Product Highlights

This junction box protects against various environmental conditions and is suitable for multiple installation types.

Product Information

Standard Information

• Brand: Centaur
• Part Number: JB884

Technical Specifications

• UPC: 190010301188
• Type: Junction Box
• Material: PVC
• Weight: 3.10 Pounds
• Dimensions:
• Length: 8.812 Inches
• Width: 8 Inches
• Height: 4 Inches
• Insulation: Gasketed
• Mounting Type: Set Screw
• Knockouts: Top, Bottom, Side Entry
• Cubic Capacity: 250 Cubic Inches
• NEMA Rating: Type 1, 2, 3, 4, 4X, 6P, 12, 13
• Country of Origin: US
