CASH ACME 23808-0045 3/4 EB45-DSB Direct SharkBite

Product Description

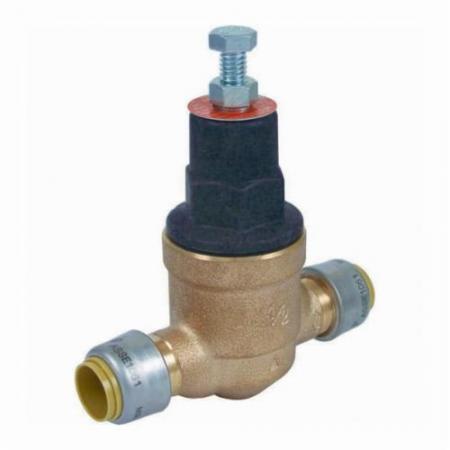

The CASH ACME 23808-0045 is a 3/4 inch push-fit pressure regulating valve, designed for both commercial and domestic water applications. It features a bronze body and operates within a maximum pressure of 200 psi, with a factory setting at 45 psi. This valve enables easy installation with SharkBite connections for copper tubing, CPVC, and PEX.

• Lead-free construction
• Adjustable outlet pressure range of 10 to 70 psi
• Modular cartridge design for quick maintenance

Product Highlights

The valve has a compact design that fits easily into tight spaces and provides reliable pressure control for water systems.

Product Information

Standard Information

• Manufacturer: CASH ACME
• MPN: 23808-0045

Technical Specifications

• Material: Bronze
• Nominal Size: 3/4 inches
• Pressure Rating: 45 psi (factory setting), up to 200 psi maximum
• Temperature Rating: up to 180 degrees Fahrenheit

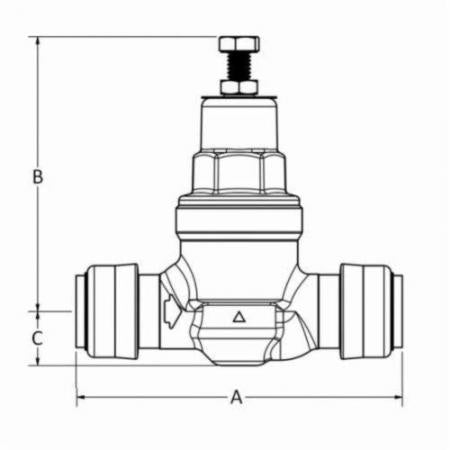

• Inlet to Outlet Length: 4.48 inches
• Top to Inlet Center: 4.37 inches
• Media: Water
• Connection Type: Push-Fit
