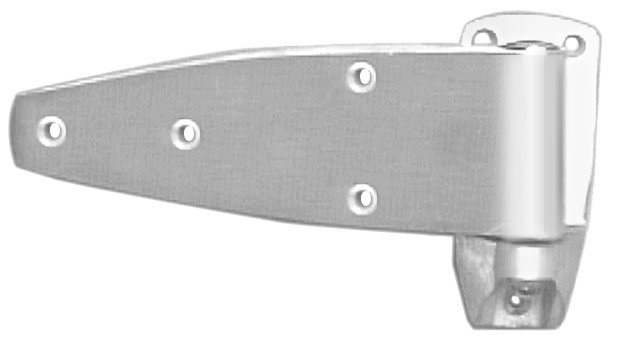

Case D69-01 Reversible Cam-lift Hinge Flush

Product Description

The CASE D69-01 is a reversible cam-lift hinge designed for flush-mount door applications. The cam-lift mechanism raises the door as it swings open, allowing clearance over thresholds, flooring transitions, or uneven surfaces without manual adjustment. The hinge is reversible, meaning it can be configured for left-hand or right-hand swing without requiring a separate part. Tradespeople and installers working on commercial cabinetry, enclosures, or access panels will find this hinge suitable for applications where consistent door alignment and self-lifting action are required.

The D69-01 is appropriate for flush-mount installations in both residential and light commercial settings. Typical applications include equipment enclosures, control panel doors, storage cabinet doors, and similar access assemblies where the cam-lift function provides a practical advantage. The reversible design simplifies inventory management for installers handling mixed left- and right-hand door configurations on a single job.

Key Features

• Reversible design accommodates left-hand or right-hand door swing from a single SKU
• Cam-lift action raises the door on opening, clearing floor obstructions and thresholds
• Flush-mount profile keeps the hinge face even with the door or frame surface
• Part of the Dent D69 Series, designed for consistent fitment across compatible enclosure and cabinet applications

Compatibility

Designed as an OEM-style replacement or upgrade hinge for flush-mount cabinet doors, enclosures, and access panels requiring a reversible cam-lift mechanism.

Installation Notes

Installation is typically performed by a qualified millwork, enclosure, or general trades installer. Remove the door from the frame and relieve any tension on existing hardware before replacing hinges. Ensure mounting surfaces are clean, flat, and properly dimensioned to achieve full flush seating. Verify door swing direction and configure the hinge accordingly before final fastening.
