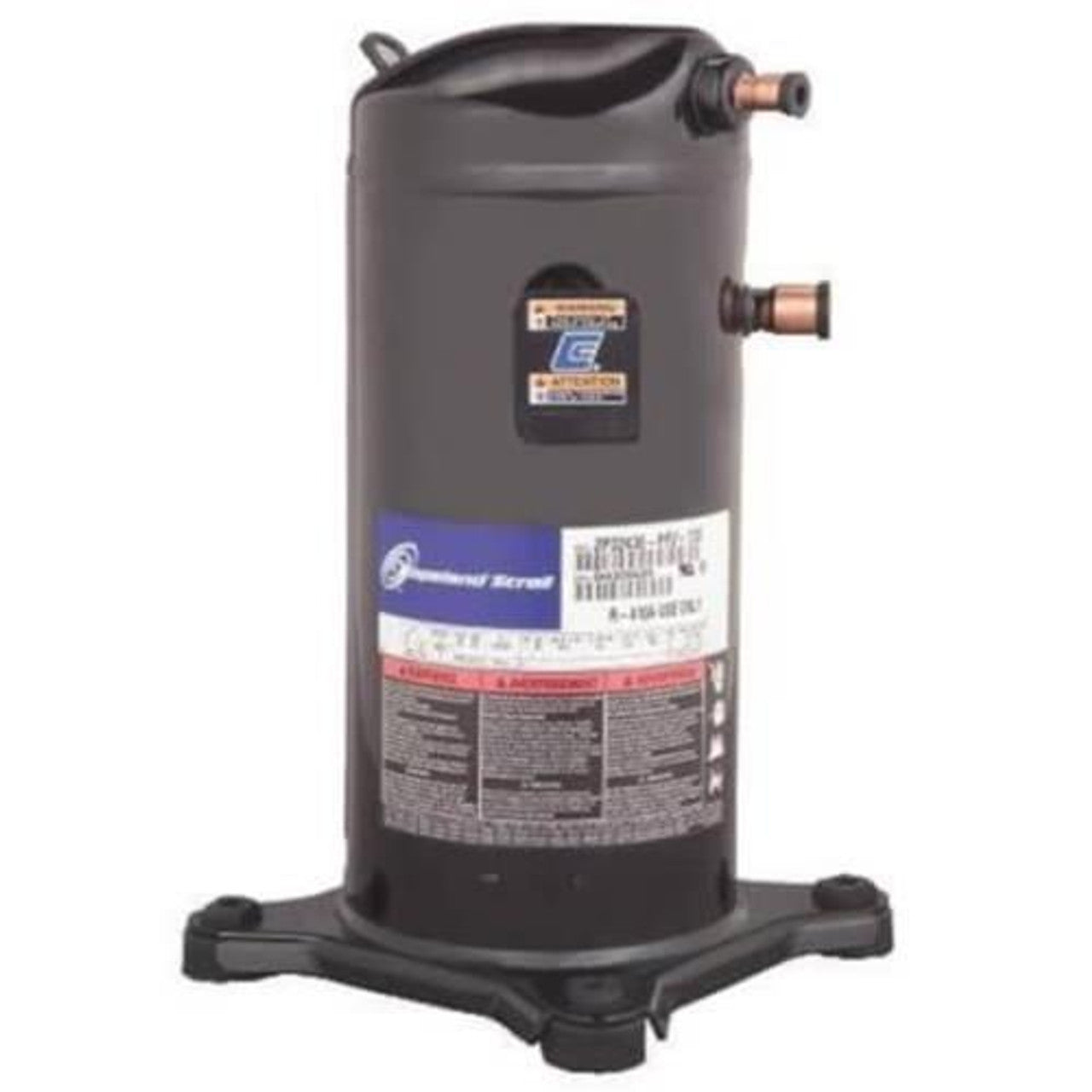

CARRIER ZR61K3E-TF5-830 Scroll Compressor

Product Description

The CARRIER ZR61K3E-TF5-830 is a hermetic scroll compressor designed for HVAC applications. This unit is compatible with R-134a, R-22, and R-407C refrigerants, operating efficiently at 50/60 Hz.

• Provides a BTU output of 62000
• Includes a 1/2 OD stub discharge connection
• Internal inherent protection for reliability

Product Highlights

This compressor is suitable for use in various cooling systems, providing a high mass flow rate of up to 940 lbs/hr. It is UL listed and made in the USA.

Product Information

Standard Information

• Brand: CARRIER
• Compressor Type: Scroll

Technical Specifications

• BTU Output: 62000
• Voltage: 200-220/200-230 VAC
• Amps: 12.4-16.5
• Mass Flow Rate: 940 lbs/hr; 910 lbs/hr
• Mounting Dimensions: 7.5 x 7.5 x 17.99 inches
• Weight: 85.95 lbs
• Cycle/Hertz: 50/60 Hz
• UL Listed: Yes
