COPELAND Copeland ZP76KCE-TF5-830 Scroll Compressor 77000 BTU (EA) ICPZP76KCETF5830
COPELAND Copeland ZP76KCE-TF5-830 Scroll Compressor 77000 BTU (EA) ICPZP76KCETF5830

Copeland ZP76KCE-TF5-830 Scroll Compressor 77000 BTU (EA) ICPZP76KCETF5830

COPELAND
Brand: COPELAND
SKU: ZP76KCE-TF5-830
Availability: In Stock

Ships via freight in 1-3 business days
$2,239.63
$2,239.63
LTL Delivery

This product weighs 87 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

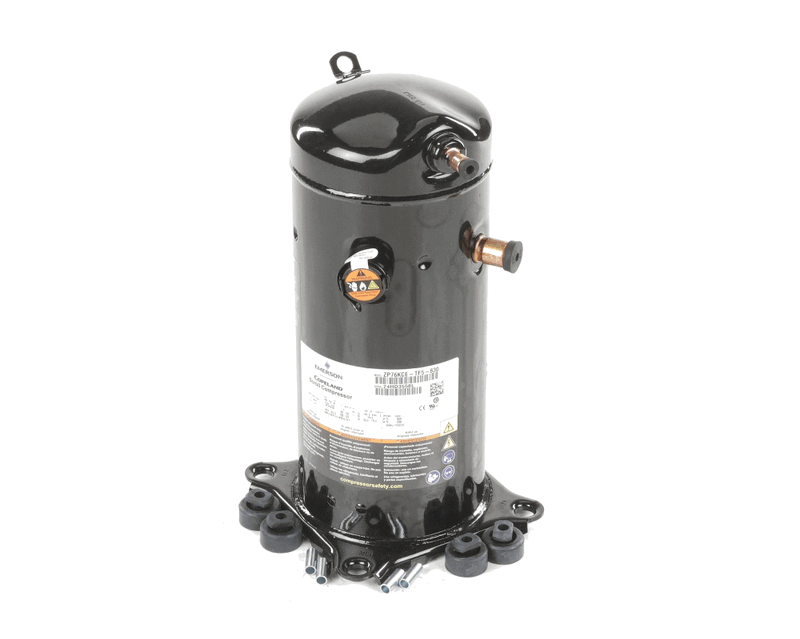

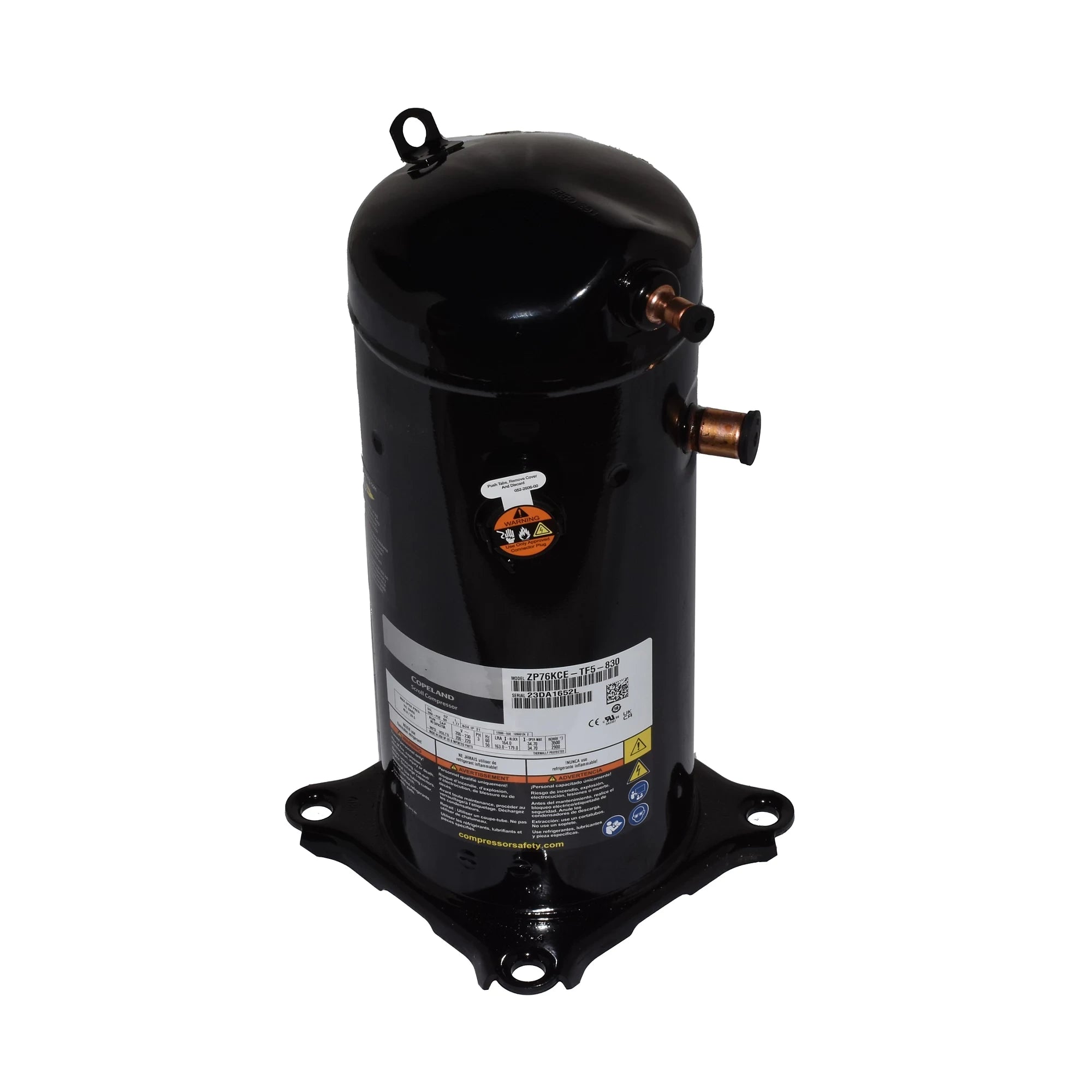

The Copeland ZP76KCE-TF5-830 is a scroll compressor for high-capacity HVAC applications. It provides 77,000 BTU output and operates on three-phase 200-220/200-230 VAC at 50/60 Hz with a rated current of 27.9 A. The hermetic unit uses Polyolester (POE) oil (60 oz initial charge), is compatible with R-410A and R-410B refrigerants, and includes internal inherent protection and UL listing.

  • 77,000 BTU cooling capacity; scroll compressor in a hermetic housing
  • Three-phase 200-220/200-230 VAC, 50/60 Hz operation with 27.9 A rated current
  • Compatible with R-410A and R-410B refrigerants; Polyolester (POE) oil, 60 oz initial charge

Product Highlights

High-capacity scroll compressor compatible with R-410A/R-410B, three-phase operation, POE oil, internal protection, UL listed.

Product Information

Standard Information

  • Brand: COPELAND
  • Manufacturer Part Number: ZP76KCE-TF5-830
  • Country of Origin: USA
Technical Specifications
Brand
Copeland
MPN
ZP76KCE-TF5-830
Part Number
ICPZP76KCETF5830
Compressor Type
Scroll
Compressor Housing
Hermetic
Cooling Capacity
77,000 BTU
Input Voltage
200-220 / 200-230 VAC
Operating Frequency
50/60 Hz
Phase
Three
Rated Current
27.9 A
Refrigerant
R-410A; R-410B
Oil Type
Polyolester (POE)
Oil Charge Initial
60 oz
Sound Level
75-80 dBA
Suction Line Size (OD)
7/8"
Discharge Connection Type
Stub
Suction Connection Type
Stub
Mass Flow
1160 lbs/hr; 1135 lbs/hr
Dimensions (H x L x W)
17.91 in x 9.69 in x 9.69 in
Mounting Footprint
7.5 in x 7.5 in
Weight
87 lb
Package Weight
93 lb
Package Dimensions (H x L x W)
20 in x 13 in x 14.5 in
Protection
Internal Inherent Protection
UL Listed
Yes
Ratings
ARI
GTIN
00822529429618
Country of Origin
USA
Cycle/Hertz
50/60 Hz
