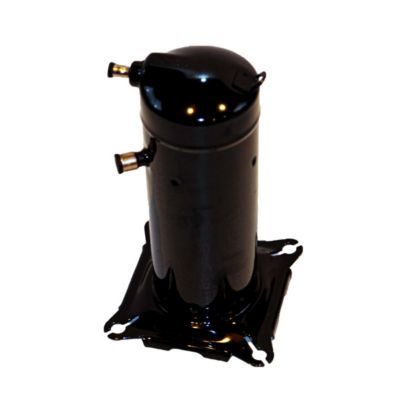

Copeland ZP24K5E-PFV-830 Scroll Compressor 24000 BTU (2 Ton) ICPZP24K5EPFV830

COPELAND
Brand: COPELAND
SKU: ZP24K5E-PFV-830
Availability: Out Of Stock
$816.05
$816.05
LTL Delivery

This product weighs 48 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Copeland ZP24K5E-PFV-830 is an R-410A scroll compressor for HVAC and refrigeration applications, rated at 24,000 BTU (2 ton) and compatible with 208–230 VAC single-phase electrical systems. It provides internal inherent protection, a 3/4 in stub suction and 1/2 in stub discharge, an initial 25 oz POE oil charge, and a sound level of approximately 66–71 dBA. Typical applications include residential and light commercial air conditioning and heat pump systems.

  • Scroll compressor design with axial and radial compliance for improved liquid handling and fewer moving parts
  • Electrical and performance: 208–230 VAC single-phase operation, 7–10.6 A running range, 64 A LRA, 2 hp power rating (note: source also lists 2400 W which is inconsistent with 2 hp)
  • Physical: Overall dimensions ~9.69 in L x 9.69 in W x 15.74 in H; mounting dimensions 7.5 in x 7.5 in; mass flow 353–403 lb/hr

Product Highlights

R-410A compatible 24,000 BTU (2 ton) scroll compressor with internal protection and POE oil charge

Product Information

Standard Information

  • Brand: COPELAND
  • Manufacturer Part Number: ZP24K5E-PFV-830
  • Country of Origin: USA
Technical Specifications
MPN
ZP24K5E-PFV-830
Brand
Copeland
Replacement Part Number
ICPZP24K5EPFV830
Compressor Type
Scroll
BTU Output
24000
Tonnage
2 ton
Refrigerant
R-410A
Input Voltage
208-230 VAC
Phase
Single
Amps
7-10.6 A
Rated Load Amps (RLA)
12.8, 14.3 A (see notes — values appear to be for different test points/conditions)
Locked Rotor Amps (LRA)
64 A
Power
2 hp (rating shown as 2 hp in documentation; 2400 W entry is inconsistent with 2 hp and has been flagged)
Suction Line Size (OD)
3/4"
Discharge Line Size
1/2"
Discharge Connection Type
Stub
Suction Line Fitting Type
Stub
Mass Flow
353–403 lb/hr
Internal Free Volume
124.5 cu-in
Oil Type
Polyolester (POE)
Initial Oil Charge
25 oz
Sound Level
66-71 dBA
Dimensions (L x W x H)
9.69 in x 9.69 in x 15.74 in
Mounting Dimensions
7.5 in x 7.5 in x 16.02 in
Weight
48.3 lb
Country of Origin
USA
UL Listed
Yes
Protection
Internal Inherent Protection
Cycle/Hertz
60 Hz
Speed
3500 rpm
Ratings
ASRAE ARI
UPC
662442948007
GTIN
00662442948007
EAN
0662442948007
