Description

Product Description

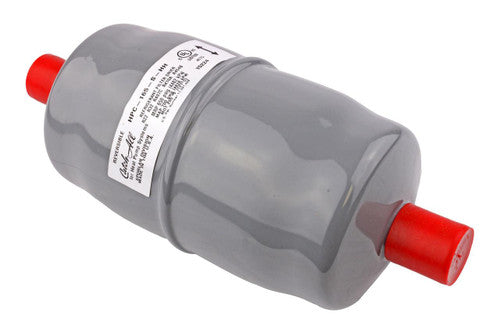

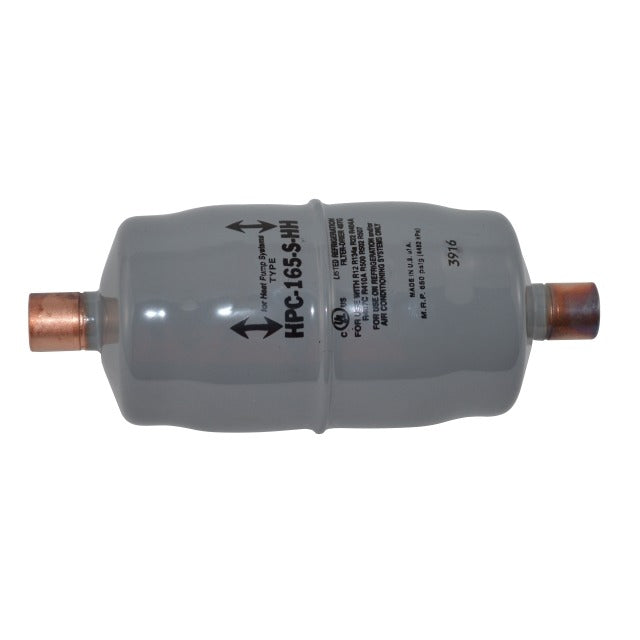

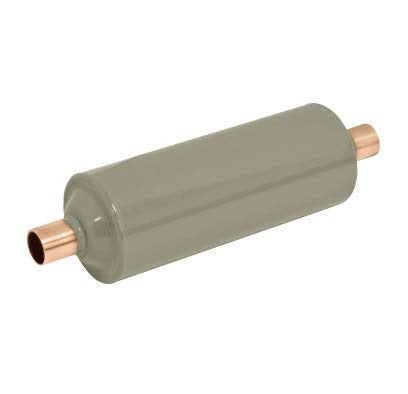

The Sporlan HPC-165-S-HH is a refrigerant bi-directional filter drier designed for HVACR systems to remove moisture and contaminants from refrigerant lines. It features 5/2 in. x 5/2 in. ODF connections, a 14 cu in desiccant capacity, and compact dimensions of approximately 9.0 in length x 3.1 in width x 3.00 in OD. Unit net weight is approximately 2.0 lb.

  • Bi-directional flow design for refrigerant lines, allowing flow in either direction
  • Connections: 5/2 in. x 5/2 in. ODF
  • 14 cu in desiccant capacity; dimensions ~9.0 in L x 3.1 in W x 3.00 in OD; weight ~2.0 lb

Product Highlights

Refrigerant bi-directional filter drier with 14 cu in desiccant and 5/2 in ODF connections for HVACR moisture and contaminant removal

Product Information

Standard Information

  • Brand: SPORLAN
  • Manufacturer Part Number: HPC-165-S-HH
Technical Specifications
Brand
Sporlan
Manufacturer
Sporlan
MPN
HPC-165-S-HH
Product Type
Bi-Directional filter drier
Connection Size
5/2 in. x 5/2 in.
Connection Type
ODF
Desiccant Capacity
14 cu in
Dimensions (L x W x OD)
9.0 in x 3.1 in x 3.00 in
Weight
2.0 lb
Intended Application
Liquid line drying and filtering for HVACR systems; removes moisture and contaminants from refrigerant lines
Model Series
HPC series
Core Type
HH core (blend of desiccants with activated charcoal)
Pressure Rating
650 PSIG
Compatible Refrigerants
HCFC, HFC, HFO, HC (various refrigerants listed in manufacturer data)
Certifications
UL/cUL listed
Suggested Nominal Tons
1-8
UPC
687472252214
Reference ID
SPORLANHPC165SHH
