Carrier HD44AQ285 Blower Motor 1/2 HP Replacement MPN

Product Description

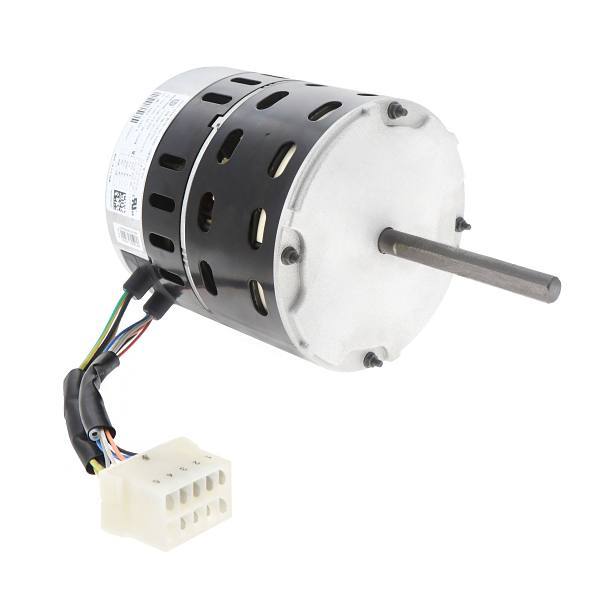

The Carrier HD44AQ285 is a blower motor tailored for HVAC systems. This ECM (Electronically Commutated Motor) provides variable speed settings, ensuring efficient airflow management. It operates at a voltage of two hundred eight to two hundred thirty volts and delivers one half horsepower. The shaft measures zero point five inches in diameter and is three point nine two inches long, allowing for both clockwise and counter-clockwise rotations.

• ECM design for efficiency.
• Variable speed operation enhances control.
• Rated for two hundred eight to two hundred thirty volts.

Product Highlights

This blower motor is suitable for a variety of HVAC applications, providing reliable and flexible performance.

Product Information

Standard Information

• Brand: Carrier
• MPN: HD44AQ285

Technical Specifications

• Horsepower: 0.5 hp
• Voltage: 208-230 V
• Amperage: 4.1 amp
• Motor Design: ECM
• Motor Mounting Type: Belly Band
• Motor Shaft Rotation: CW/CCW
• Shaft Diameter: 0.5 in.
• Shaft Length: 3.92 in.
• Maximum RPM: 1050 RPM
• Name Plate RPM: 1050 RPM
• Number of Phases: 1
• Phase: Single
• Number of Speeds: Variable
• Frame: 48
• Thermal Protection Rating: None
• Package Quantity: 1
