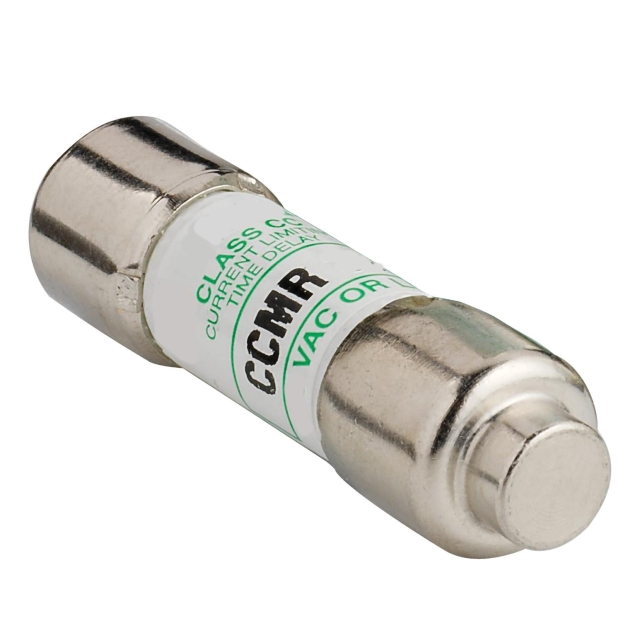

CARRIER CCMR030.TXP Fuse

CARRIER
Brand: CARRIER
SKU: CCMR030.TXP
Availability: In Stock

Ships same day if ordered by 12 pm

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$31.43
$31.43
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The CARRIER CCMR030.TXP Fuse is designed for motor protection. It features a time delay blow characteristic, which allows it to withstand temporary overloads without blowing. This fuse operates at a rated voltage of six hundred volts AC and five hundred volts DC. It has a significant breaking capacity of two hundred kiloamperes AC and twenty kiloamperes DC, making it suitable for various applications.

  • Time delay feature for better protection against overcurrent.
  • Rated breaking capacity of two hundred kiloamperes AC and twenty kiloamperes DC.
  • Compliance with CE, CSA, UL, and ROHS3 standards.

Product Highlights

This fuse is constructed with lead-free materials and is compact in design.

Product Information

Standard Information

  • Mounting Type: Holder
  • Type: Electrical

Technical Specifications

  • Current Rating: 30A
  • Voltage - Rated AC: 600V
  • Voltage - Rated DC: 500V
  • Breaking Capacity: 200kA AC, 20kA DC
  • Fuse Type: Cartridge
  • Response Time: Slow Blow
  • Body Dimensions: 10.3mm x 38.1mm
  • RoHS Status: ROHS3 Compliant
