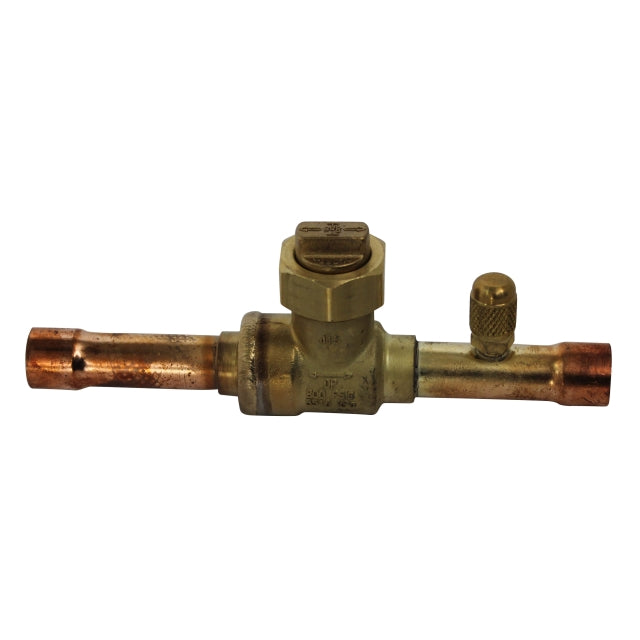

CARRIER 586WAS-10ST Ball Valve with Access Fitting

Product Description

The CARRIER 586WAS-10ST is a ball valve designed for refrigeration applications. This valve features a forged brass body with copper tube extensions for durability and reliability. The full port design allows for unrestricted flow, making it efficient for system operations. The valve includes a dual seal system and a seal cap, ensuring effective sealing during usage.

• Forged brass construction with copper extensions.
• Access fitting included for easier system access.
• Full port design for optimal flow performance.

Product Highlights

This ball valve is perfect for refrigeration systems, providing non-directional flow in a compact design.

Product Information

Standard Information

• Brand: CARRIER
• MPN: 586WAS-10ST

Technical Specifications

• Type: Shutoff Valve
• Actuation Type: 1/4 Turn
• Nominal Size: 5/8 Inch x 5/8 Inch
• End Connection: ODS x ODS
• Connection Type: ODF Solder
• Inlet Connection Size: 5/8 in
• Outlet Connection Size: 5/8 in
• End to End Distance: 6.5 Inch
• Ball Material: Polished Brass or Carbon Steel
• Body Material: Forged Brass
• Seal Material: Non-Stick
• Port Type: Full
• Pressure Rating: 700 PSIG (DWP)
• Maximum Pressure (PSI): 800 PSIG
• Port Diameter: 0.5 Inch
• Ball Port Diameter: 1/2
• Extension Material: Copper Tube
• Application: Refrigeration
• Style: Ball Valve
• Height: 2.36 inches
• Length: 6.5 inches
• Width: 1.38 inches
• Weight: 0.77 pounds
• Shipping Height: 1.7 in
• Shipping Length: 2.9 in
• Shipping Weight: 0.55 lb
• Shipping Width: 6.9 in
• Operating Temperature Range: -40°F to 325°F
• Country of Origin: USA
