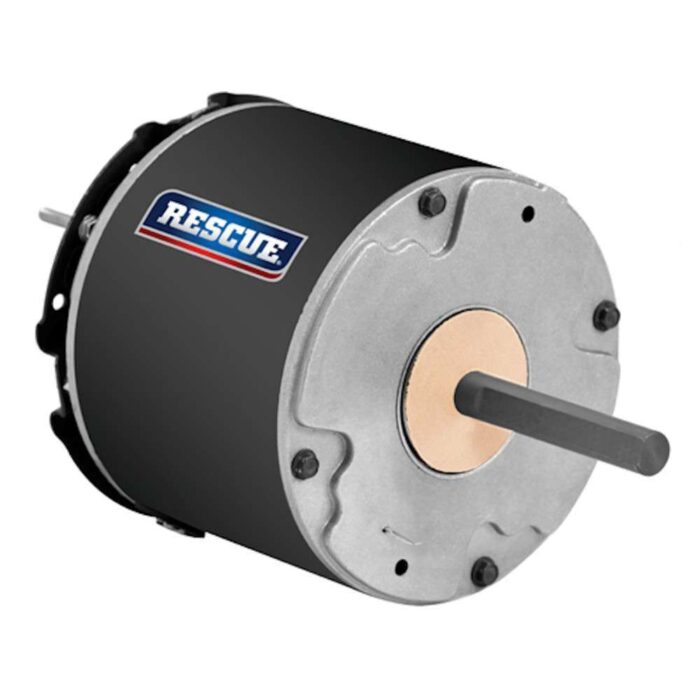

CARRIER 5440H Condenser Fan Motor

Product Description

The CARRIER 5440H is a condenser fan motor suitable for outdoor air conditioning condenser applications. This motor is a permanent split capacitor type designed for continuous operation. It has built-in automatic overload protection to enhance reliability.

• Permanent split capacitor for efficient operation.
• Includes ball bearings for longevity.
• Comes with a five microfarad capacitor.

Product Highlights

The CARRIER 5440H is engineered to withstand continuous use, making it ideal for HVAC applications.

Product Information

Standard Information

• Motor Type: Permanent Split Capacitor
• Application: Outdoor A/C Condenser

Technical Specifications

• Horsepower: 1/8-1/12 hp
• Speed: 1075 rpm
• Input Voltage: 208-230v
• Output Current: 0.8 amps
• Shaft Size: 1/2 inches x 3.0 inches
• Rotation: Reversible
• Diameter: 5.0 inches
• Motor Case Length: 5.0 inches
• Bearings: Ball bearings
• Mounting Type: Stud mount
• Mounting Details: 4.3 inches, 4.4 inches, 4.6 inches bolt circles
• Capacitor: 5 mfd
• Insulation Class: Class B
• Ambient Temperature: 70°C
• Leads Length: 36 inches leads
• Frequency: 60 hertz
