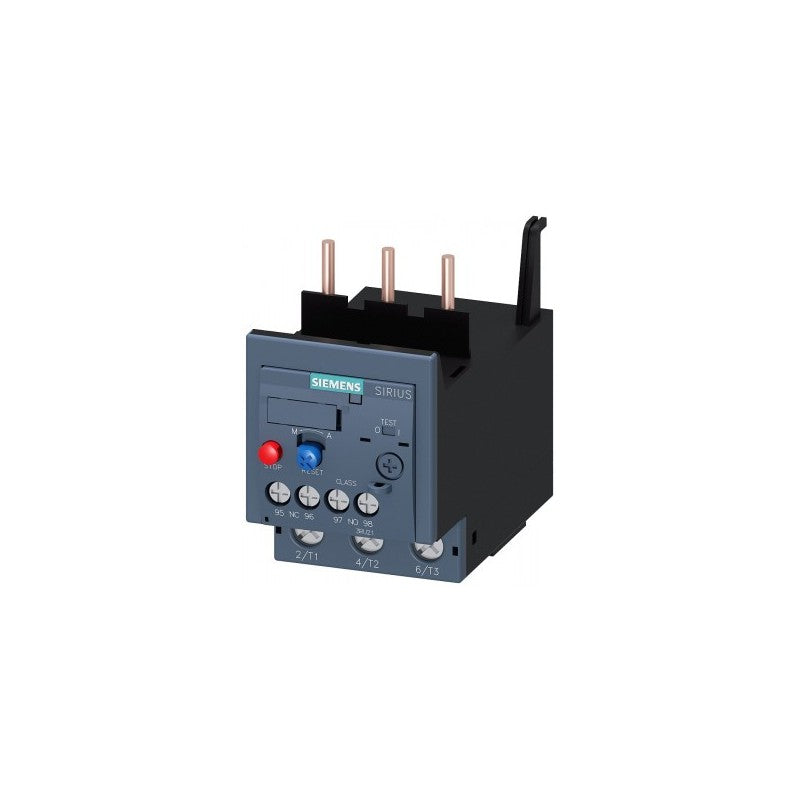

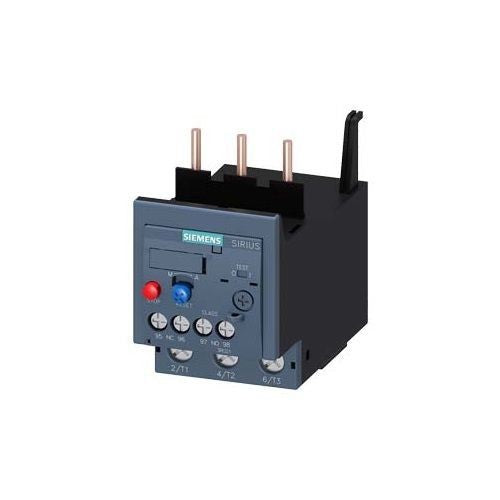

CARRIER 3RU21364HB0 Thermal Overload Relay

Product Description

The CARRIER 3RU21364HB0 is a thermal overload relay that provides protection for loads during normal starting conditions. This device helps prevent damage from excessive heat due to overload or phase failure.

• Overload and phase failure protection
• Manual and automatic reset options
• Switch position indicator for monitoring

Product Highlights

The CARRIER 3RU21364HB0 ensures reliability in controlling thermal overloads, making it essential for various industrial applications.

Product Information

Standard Information

• Brand: CARRIER
• MPN: 3RU21364HB0

Technical Specifications

• Series: 3RU2
• Amperage Rating: 40 to 50 A
• Contact Form: 1NC-1NO
• Contact Rating: 3 A at 24/110/120/125 VAC, 2 A at 230 VAC, 1 A at 400 VAC, 2 A at 24 VDC, 0.3 A at 60 VDC, 0.22 A at 110/125 VDC, 0.11 A at 220 VDC
• Dimensions: 90 mm H x 55 mm W x 105 mm D
• Enclosure Type: IP00/IP20
• Frequency Rating: 50 to 60 Hz
• Number Of Poles: 3
• Operating Temperature: -40 to 70 deg C
• Terminal Type: Screw
• Standard & Approvals: CCC Certified, CSA Certified, UL Listed, EAC Certified, ExATEX, IECEx, CE Certified, ABS Certified, Bureau Veritas Certified, Lloyd's Register, RMRS Certified, DNV-GL Approved, PRS Certified, RINA Certified, WEEE (2012/19/EU), REACH Article No. 33
