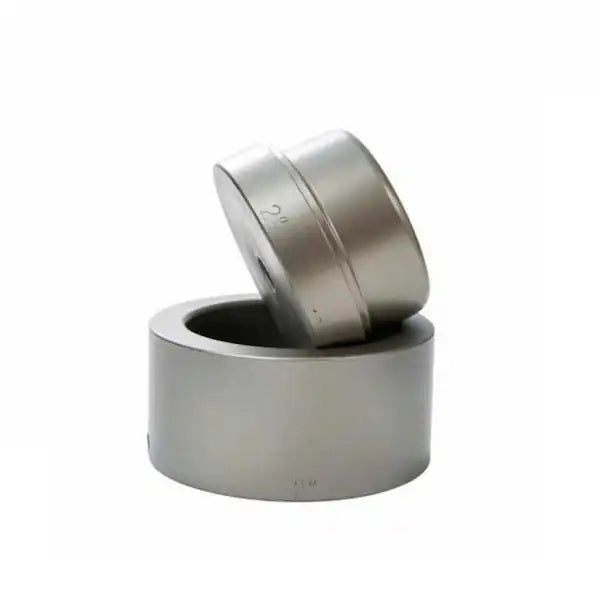

Carrhill SF114 Socket Face Set 1-1/4 in Poly Fusion

Product Description

The CARRHILL SF114 is a socket face set sized for 1-1/4 inch polyethylene socket fusion applications. It provides the matched male and female fusion faces needed to heat pipe and fitting ends to proper melt temperature before joining. Plumbers, gas utility technicians, and PE pipe installers use this tooling when making permanent, leak-free socket fusion joints in polyethylene piping systems. The set is sized specifically for 1-1/4 inch pipe and is used with a compatible socket fusion tool body.

This socket face set is intended for use in residential and light commercial polyethylene piping installations, including water service lines, gas distribution systems, and irrigation mains where socket fusion joining is the specified joining method. It is selected when the job requires a 1-1/4 inch socket fusion connection and the technician needs the correct face size to match pipe and fitting dimensions exactly.

Key Features

• Sized for 1-1/4 inch polyethylene pipe and fittings
• Provides matched socket fusion face pair for consistent melt depth and heat transfer
• Designed for use with standard socket fusion tool bodies
• Produces permanent, pressure-rated joints without solvent or adhesive

Compatibility

Designed as an OEM-style replacement or service face set for 1-1/4 inch socket fusion tool systems used in polyethylene pipe joining applications.

Installation Notes

Socket fusion work on polyethylene pipe is typically performed by licensed plumbers or qualified gas utility technicians following ASTM and manufacturer fusion procedures. Before use, ensure the fusion tool body reaches the correct melt temperature as specified by the pipe and fitting manufacturer. Clean all pipe and fitting ends thoroughly before applying the socket face set. Follow applicable codes including IFGC and local jurisdiction requirements for buried or pressurized PE piping systems.

Technical Specifications

• Pipe Size: 1-1/4 inches
• Joining Method: Polyethylene Socket Fusion
• Order Increment: 1

Standard Information

• Brand: CARRHILL
• Manufacturer Part Number: SF114
