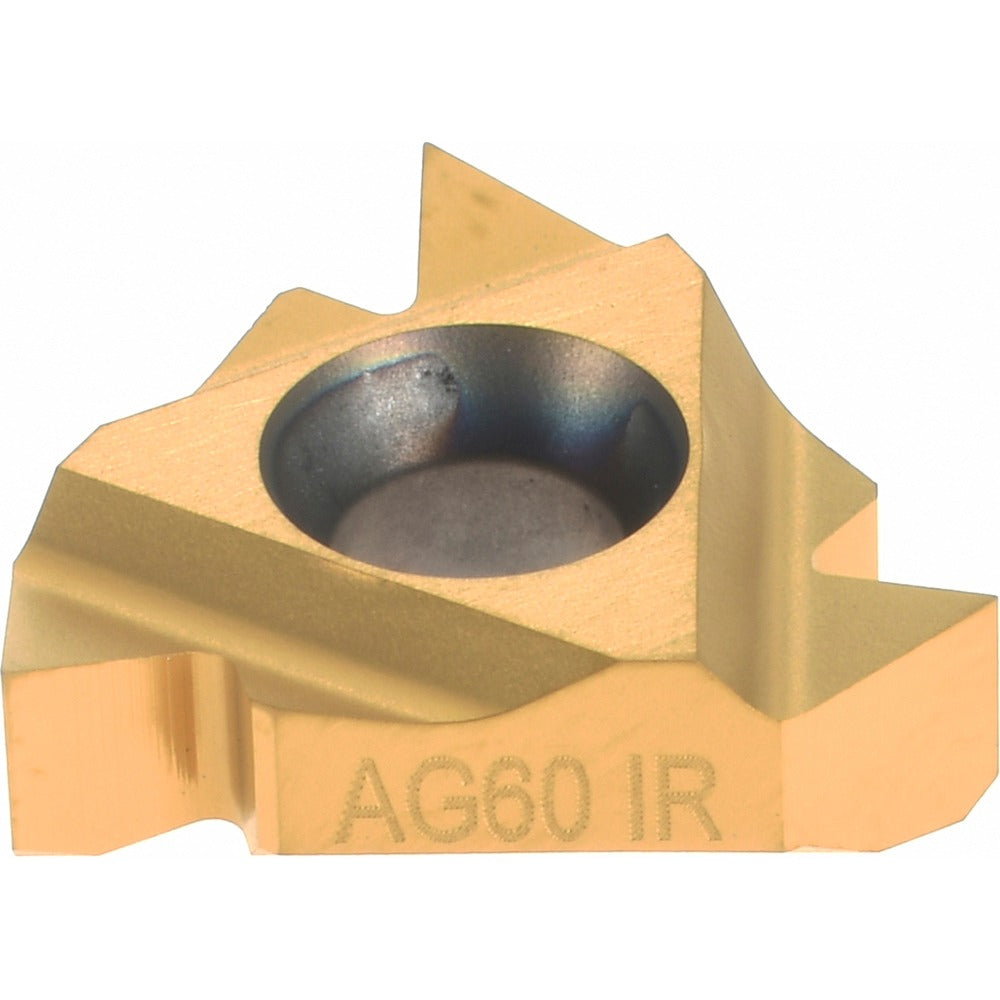

Carmex 16IRAG60BXC Laydown Threading Insert Solid Carbide

Product Description

The CARMEX 16IRAG60BXC is a solid carbide laydown threading insert designed for right-hand internal threading operations. It cuts a 60-degree included angle partial profile thread and covers a thread pitch range of 48 to 8 TPI (0.50 to 3.00 mm pitch), making it a versatile single-tool solution across a wide range of thread sizes. The insert features a 3/8-inch (0.3750 inches) inscribed circle and measures 0.1460 inches thick. A PVD-applied TiN coating increases surface hardness and extends tool life across demanding cutting conditions. Licensed machinists and CNC operators working in turning centers and lathes are the primary users of this insert.

This insert is suited for internal threading on a wide range of workpiece materials. The universal primary workpiece material rating spans steel, stainless steel, cast iron, non-ferrous metals, high-temperature alloys, and aluminum, corresponding to material codes H, K, M, N, P, and S. It is appropriate for both production and job-shop environments where thread accuracy and insert consistency are critical. The 16IR insert style seats in standard 16IR-compatible toolholders used on CNC lathes and manual threading setups.

Key Features

• Solid carbide substrate provides rigidity and wear resistance for internal threading
• PVD TiN coating applied via physical vapor deposition for extended edge life
• 60-degree included angle covers unified and metric thread forms in a partial profile configuration
• Wide TPI range of 48 to 8 (0.50 to 3.00 mm pitch) reduces insert changeovers
• Right-hand cut orientation for standard internal thread applications
• Universal material compatibility across steel, stainless, cast iron, non-ferrous, and superalloy workpieces

Compatibility

Designed for use in 16IR-style internal threading toolholders. Compatible with CNC and manual lathes equipped with 16IR insert pockets. Verify toolholder seat geometry before installation.

Installation Notes

Threading inserts of this type are installed and changed by machinists or CNC tooling technicians. Power down and lock out the machine spindle before seating or replacing the insert. Use the correct torque wrench and manufacturer-specified clamping hardware for the toolholder - do not overtighten the clamping screw by feel alone. Confirm insert seating and runout before initiating a threading pass.
