Carmex 16IRAG60BMA Threading Insert Carbide Tialn 60 Deg

Product Description

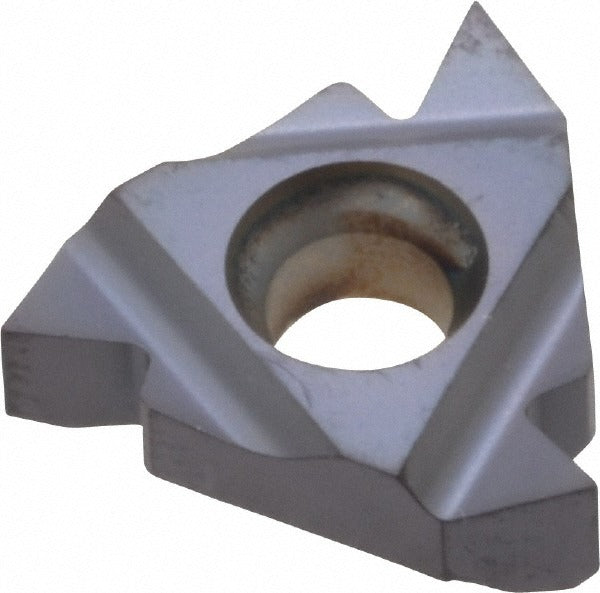

The CARMEX 16IRAG60BMA is a solid carbide laydown threading insert designed for internal partial-profile 60-degree thread forms. It carries a TiAlN coating applied via PVD process, delivering extended tool life across a wide range of workpiece materials. The insert measures 0.375 inches inscribed circle diameter and 0.146 inches thick, with a 0.002-inch corner radius. It covers a threading range of 48 to 8 TPI (0.50 to 3.00 mm pitch) in a right-hand cutting configuration. This insert is suited for machinists and CNC lathe operators performing internal threading operations in production or job-shop environments.

The 16IRAG60BMA is intended for internal threading on CNC turning centers and lathes. The universal material grade designation supports use across a broad spectrum of workpiece materials including carbon steels, stainless steels, cast irons, non-ferrous alloys, high-temperature alloys, and plastics, corresponding to material codes H, K, M, N, P, and S. It fits standard 16IR insert pockets and is appropriate for both light production runs and high-volume threading applications where consistent thread quality is required.

Key Features

• Solid carbide substrate with submicron grain structure for edge strength and wear resistance
• TiAlN PVD coating for thermal stability and extended insert life
• Right-hand internal partial-profile 60-degree thread form covering 48-8 TPI
• 3/8 inch (0.375 inches) inscribed circle fits standard 16IR toolholders
• Universal workpiece material compatibility across steel, stainless, cast iron, non-ferrous, and exotic alloys
• Meets CE, ISO 13485:2016, ISO 14001:2015, and ISO 45001 standards

Compatibility

Designed as a direct-fit replacement for standard 16IR insert pockets on CNC turning center and lathe toolholders accepting laydown threading inserts with a 3/8 inch inscribed circle.

Installation Notes

Threading inserts should be installed by a qualified machinist or CNC operator following the toolholder manufacturer torque and seating specifications. Ensure the machine spindle is fully stopped and locked out before changing inserts. Inspect the insert pocket and clamping screw for wear or debris before seating the new insert. Confirm correct insert orientation for right-hand internal threading before resuming cutting operations.
