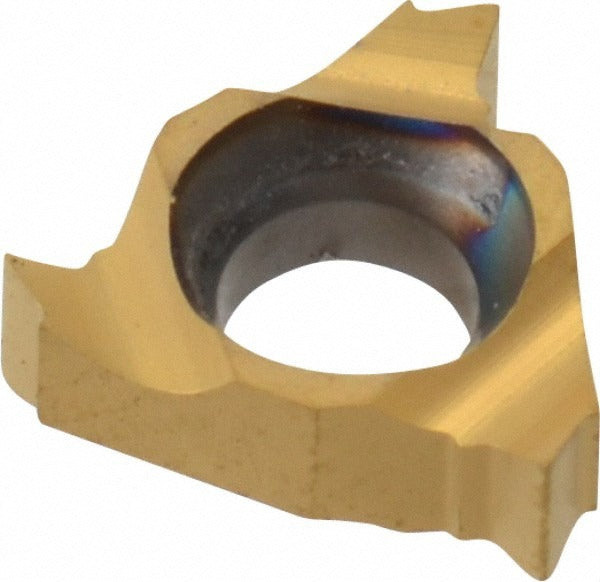

Carmex 06IL24UNBXC Threading Insert 24 Tpi Left Hand Un

Product Description

The CARMEX 06IL24UNBXC is a solid carbide laydown threading insert designed for cutting left-hand internal UN threads at 24 threads per inch. It features a 5/32 inch (0.1563 inch decimal) inscribed circle and a thickness of 0.0730 inches, with a 60-degree included angle standard to UN thread form. The insert carries a TiN PVD coating under the BXC manufacturer grade, providing wear resistance across a broad range of workpiece materials. Machinists and CNC lathe operators install this insert into compatible laydown-style toolholders for internal threading operations on lathes in production and job-shop environments.

This insert is suited for internal threading applications where a left-hand UN thread form is required. Its universal primary workpiece material rating makes it applicable across carbon steels, stainless steels, cast irons, non-ferrous alloys, high-temperature alloys, and plastics. It is a practical choice for shops running mixed-material threading jobs on CNC or manual lathes where consistent thread quality at 24 TPI is needed.

Key Features

• Solid carbide construction with PVD-applied TiN coating for extended tool life
• Left-hand internal UN thread form at 24 threads per inch
• 5/32 inch inscribed circle (0.1563 inches decimal) for compact toolholder seating
• 60-degree included angle matching UN thread standard geometry
• Universal material compatibility covering steels, irons, non-ferrous, and high-temp alloys
• Certified to CE, ISO 13485:2016, ISO 14001:2015, and ISO 45001 standards

Compatibility

Designed as an OEM-style replacement or direct-fit insert for laydown-style internal threading toolholders accepting the 06IL insert style and size code.

Installation Notes

This insert is installed by a machinist or CNC tooling technician into a compatible 06IL-style laydown toolholder. Ensure the machine spindle is fully stopped and the toolholder is secured before seating or removing the insert. Use the correct torque wrench per toolholder manufacturer specifications when tightening the clamping screw. Verify thread hand orientation and TPI selection against the workpiece drawing before initiating the threading cycle.
