Carlon E976RFB 1 Gang Rectangular Floor Box

Product Description

The Carlon E976RFB is a single gang rectangular floor box designed for versatile installation options in both concrete and wood flooring. With a cubic capacity of ninety-seven point four, this non-metallic floor box is equipped with a one-inch hub size and reducer plugs for one-half inch and three-quarter inch connections.

• Suitable for on grade and below grade applications

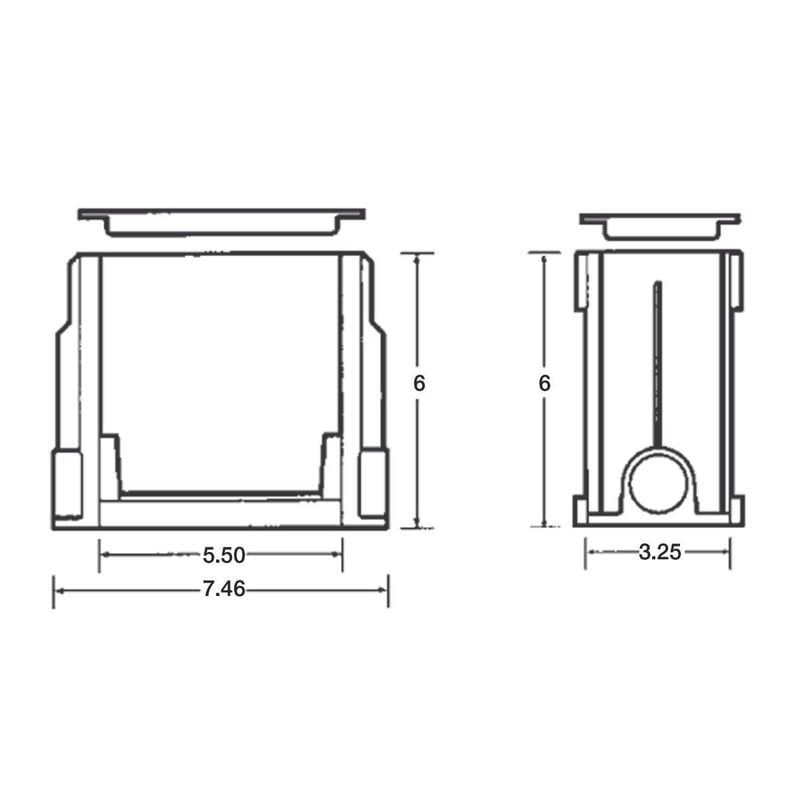

• Dimensions: length five point five inches, width three point two five inches, depth six inches
• UL E11461 standard certification

Product Highlights

This floor box supports three-way power, data, and communication setups, allowing for easy double or triple ganging.

Product Information

Standard Information

• Brand: Carlon
• Type: Multi-Gang Rectangular Floor Boxes & Covers

Technical Specifications

• Material: Non-metallic
• Cubic Capacity: Ninety-seven point four
• Knockouts: False
• Box Quantity: Three
• Application: Suitable for any on grade or below grade application
• Catalog Description: Single Gang Rectangular Floor Box, 97.4 Cubic Inches
• Hub Size: One inch
• Reducer Plugs: One-half inch and three-quarter inch
