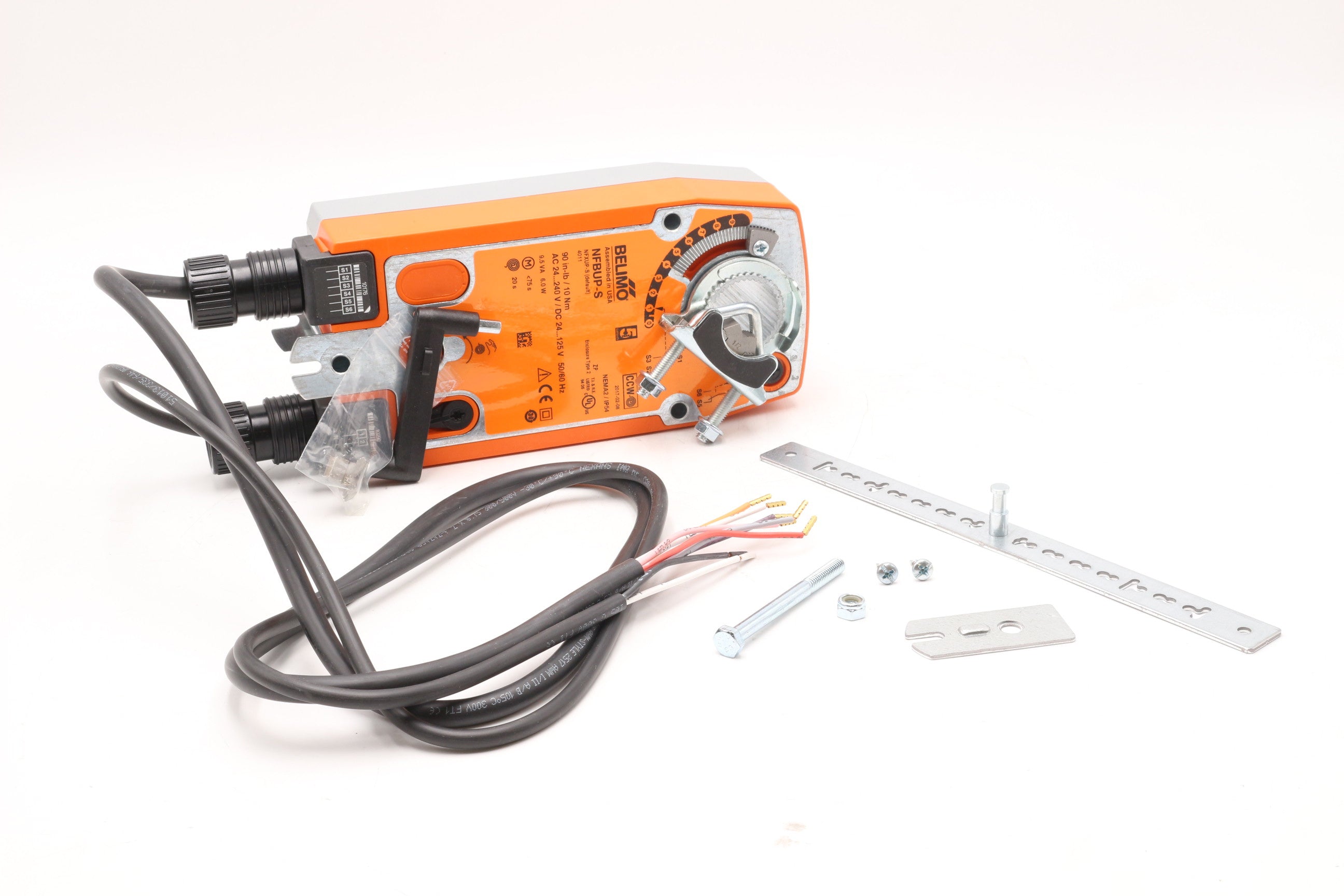

CaptiveAire NFBUP-S Air Damper Actuator Power 90 Angle rotation

Product Description

CaptiveAire NFBUP-S is an air damper actuator designed for reliable performance. It features a spring return mechanism with a torque of ninety inch-pounds. The actuator operates efficiently with a running time of less than seventy-five seconds for on and off functions. For spring operation, it completes within sixty seconds. This actuator supports a voltage range of twenty-four to two hundred forty volts AC and twenty-four to one hundred twenty-five volts DC, making it versatile for various applications.

• Torque: 90 in-lb
• Voltage Compatibility: 24-240VAC, 24-125VDC
• Controlled Direction: Clockwise

Product Highlights

This actuator includes a visual position indicator for easy monitoring of the damper's status.

Product Information

Standard Information

• Part Number: NFBUP-S
• Brand: CaptiveAire

Technical Specifications

• Running Time: <75 sec (on/off), <60 sec (spring)
• Angle of Rotation: 95 degrees
• Shaft Diameter: 0.5 to 1.05 inches
