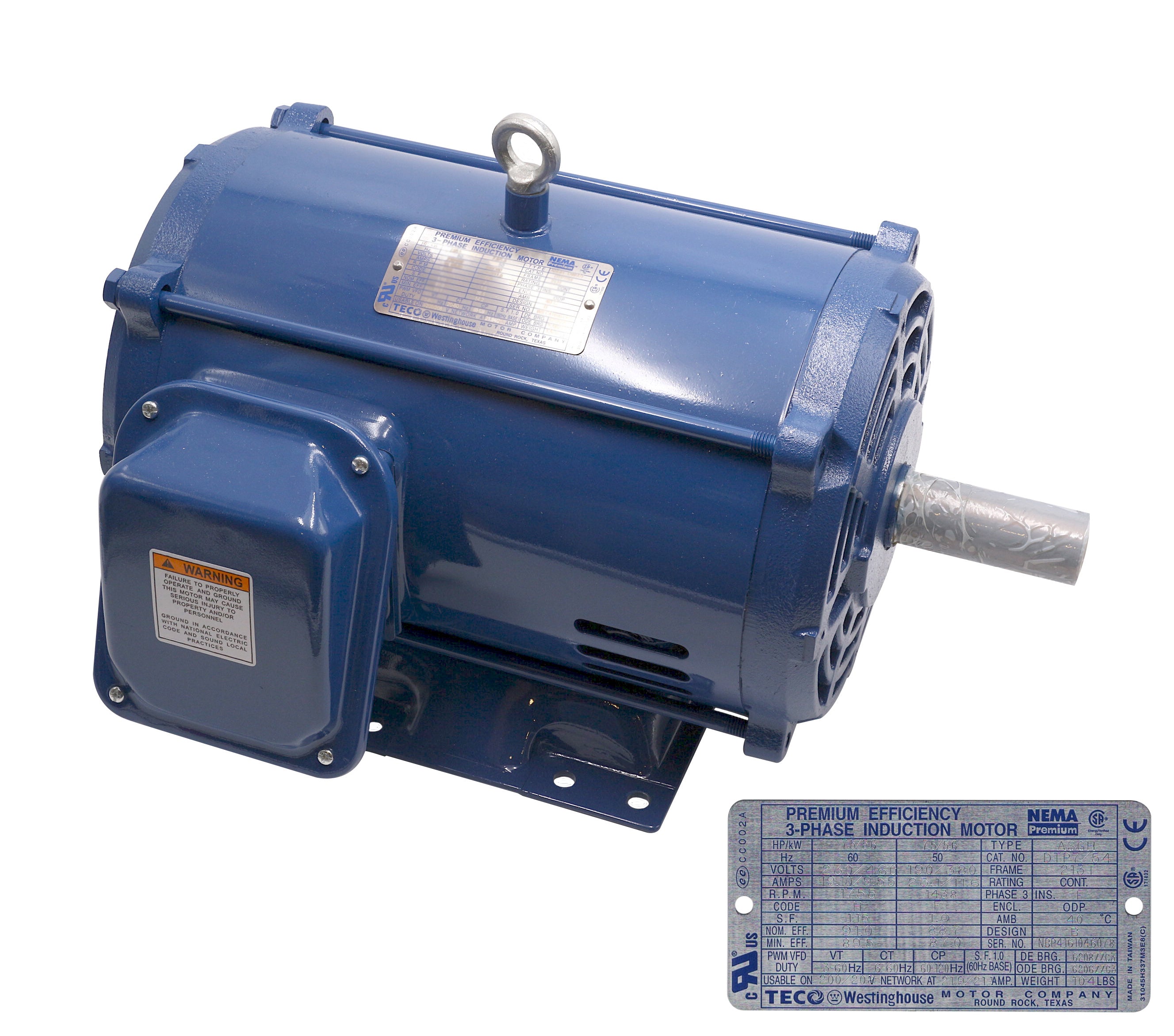

CaptiveAire DTP7/54 7.5 HP 3 Phase Continuous Duty Motor

Product Description

The CaptiveAire DTP7/54 is a reliable 7.5 HP 3 phase continuous duty motor designed for heavy-duty applications. Rated for 230/460 VAC, this motor is engineered for efficient performance. It features a 4-pole design and operates at a nameplate RPM of 1755, making it ideal for various exhaust fan systems.

• Rated for 230/460 VAC
• Continuous duty operation
• ODP (Open Drip Proof) enclosure type

Product Highlights

This motor is suitable for extensive use while maintaining high efficiency. Its insulated components can withstand temperatures up to 311 F, ensuring durability for demanding environments.

Product Information

Standard Information

• Brand: CaptiveAire
• Part #: DTP7/54

Technical Specifications

• HP: 7.5
• Phase: 3
• Poles: 4
• Voltage: 230/460
• Material: Metal
• Efficiency: Premium
• Time Rating: Continuous
• Nameplate RPM: 1755
• Shaft Diameter: Keyway X 1-3/8
• NEMA Frame Size: 213T
• Insulation Class: F
• Insulation Max Temp: 311 F
• Enclosure Type: ODP
