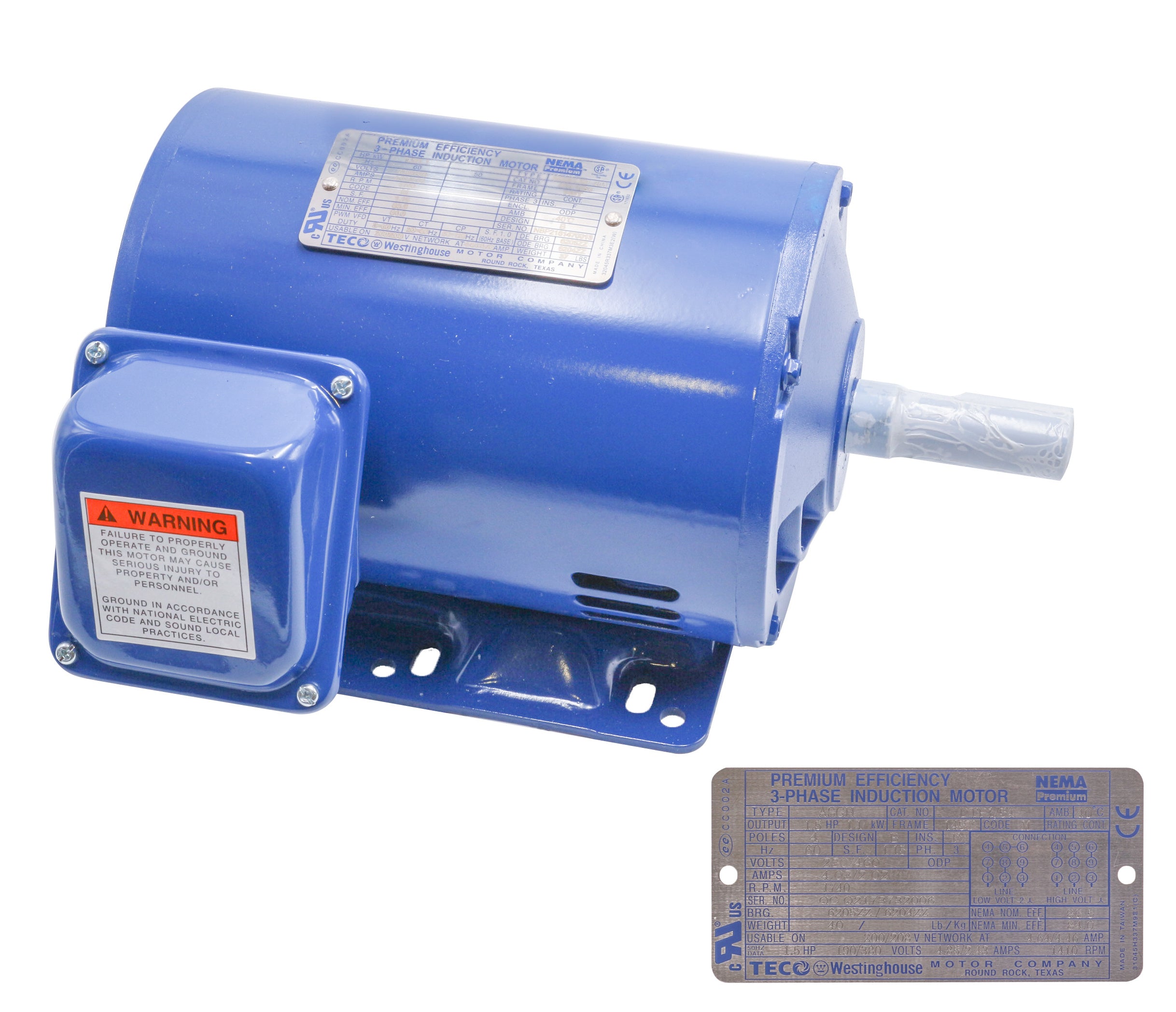

CAPTIVEAIRE DTP1/54 1.5 HP 3 Phase Continuous Duty Motor

Product Description

The CAPTIVEAIRE DTP1/54 is a 1.5 horsepower, three-phase continuous duty motor designed for demanding applications. This motor is rated for both 230 and 460 volts, making it a versatile component for various systems. It operates efficiently and delivers reliable performance, ideal for exhaust fans or other equipment requiring a robust motor.

• Rated for 230/460 VAC
• Continuous duty operation
• Four poles for balanced performance

Product Highlights

The CAPTIVEAIRE DTP1/54 offers premium efficiency and is built from durable metal materials. It features a keyway shaft diameter of seven-eighths inches and has a shaft length of two point twenty-five inches, providing secure installation options for various applications.

Product Information

Standard Information

• Brand: CAPTIVEAIRE
• Part Number: DTP1/54

Technical Specifications

• Horsepower: 1.5 HP
• Phase: 3
• Poles: 4
• Voltage: 230/460
• Material: Metal
• Efficiency: Premium
• Time Rating: Continuous
• Nameplate RPM: 1750
• Center to Base: 3.5 inches
• Shaft Diameter: Keyway X 7/8 inches
• NEMA Frame Size: 145
• Insulation Class: F
• Max Insulation Temperature: 311 F
• Enclosure Type: ODP
