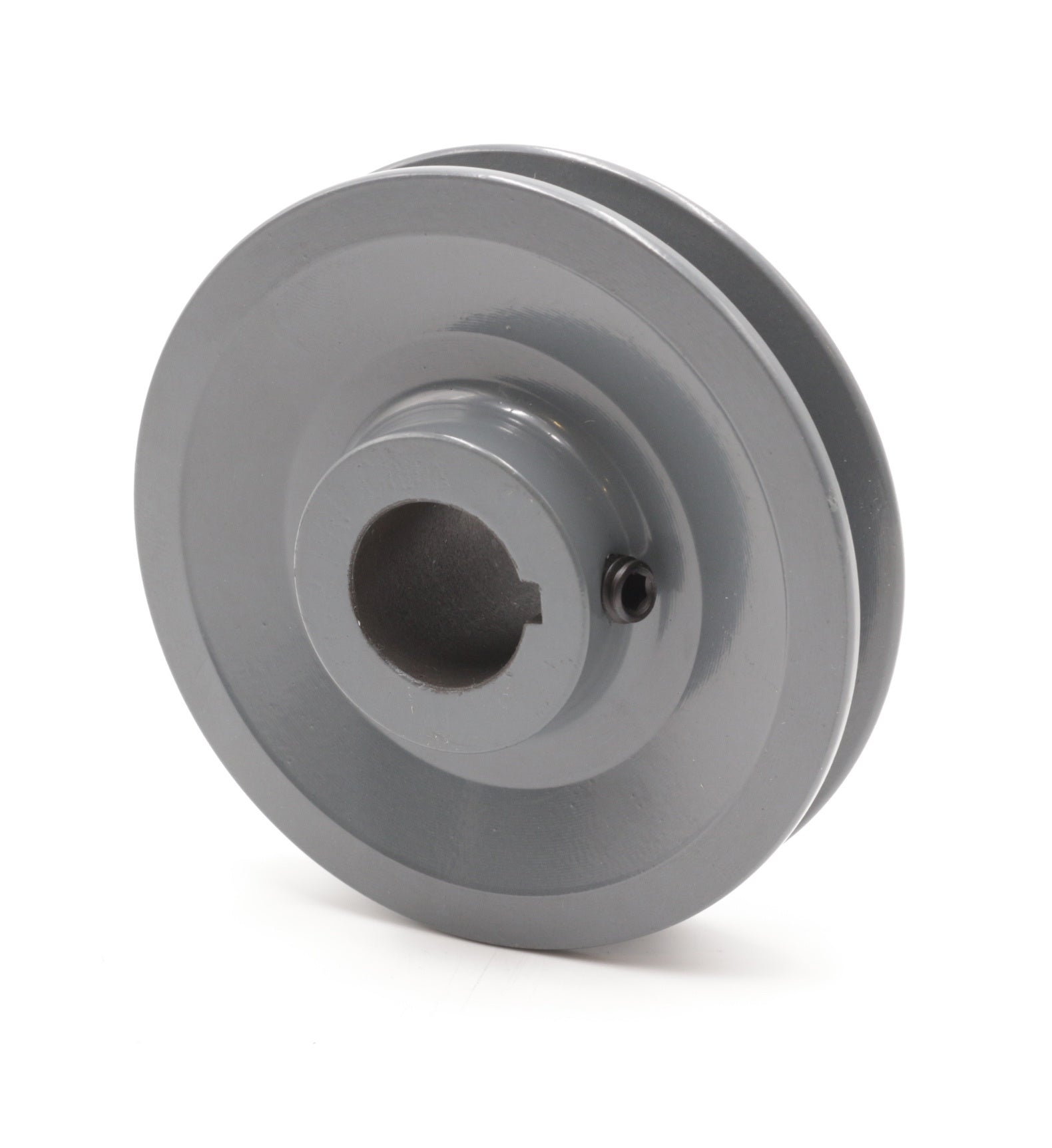

CaptiveAire 1VL40X7/8 VL Series Variable Pitch Pulley

Product Description

The CaptiveAire VL Series Variable Pitch Pulley has a part number of 1VL40X7/8. It is designed for flexibility in application with its finished bore sheave suitable for one groove and compatible with 4L and A belt trade sizes. This pulley accommodates a shaft diameter of 0.875 inches.

• Compatible with 4L and A belt sizes
• Constructed from durable cast iron
• Features a finished bore for easy installation

Product Highlights

This variable pitch pulley supports adjustments needed for different speeds and loads, making it ideal for varied mechanical applications.

Product Information

Standard Information

• Brand: CaptiveAire
• Part Number: 1VL40X7/8

Technical Specifications

• Color: Gray
• Material: Cast Iron
• Bore Size: 0.875 inches
• Outside Diameter: 3.75 inches
• Max Datum Diameter: 3.4 inches
• Min Datum Diameter: 2.4 inches
• Max Turns: 0
• Min Turns: 5
• Grooves: 1
• # of Set Screws: 1
• Bore Finish: Finished
• Key or Flats: Key
• Compatible Belt Family: 4L, A
