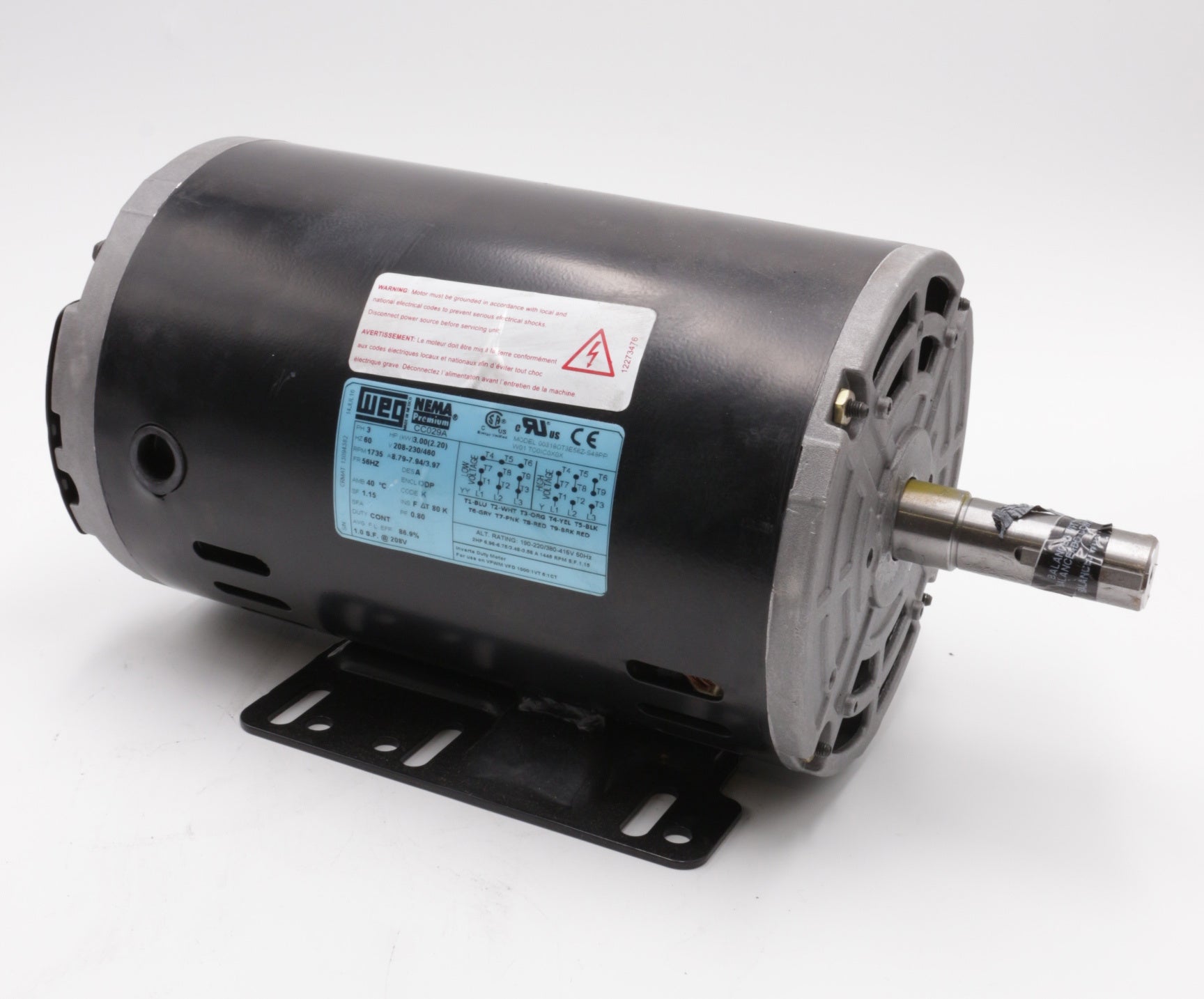

CaptiveAire 00318OT3E56Z-48PP Motor - 3.00 Hp

Product Description

The CaptiveAire model 00318OT3E56Z-48PP is a three-phase motor rated at three horsepower. It operates on 208-230/460V power and features an open drip proof design. The motor runs at a speed of 1730 RPM and includes a rigid base for easy installation. It fits a frame of size 56 and has a full-load amperage of 8.7-7.9/3.9. The shaft has a length of two and one-fourth inches and a diameter of seven-eighths inches. It utilizes Class F insulation and is designed for inverter duty.

• Three-phase operation
• 208-230/460V power
• Class F insulation

Product Highlights

The motor is suitable for various applications requiring reliable performance and efficiency.

Product Information

Standard Information

• Brand: CaptiveAire
• Part Number: 00318OT3E56Z-48PP

Technical Specifications

• Horsepower: 3.00 Hp
• Voltage: 208-230/460V
• RPM: 1730
• Frame Size: 56
• FLA: 8.7-7.9/3.9
• Shaft Length: 2-1/4 inches
• Shaft Diameter: 7/8 inches
• Insulation Class: F
