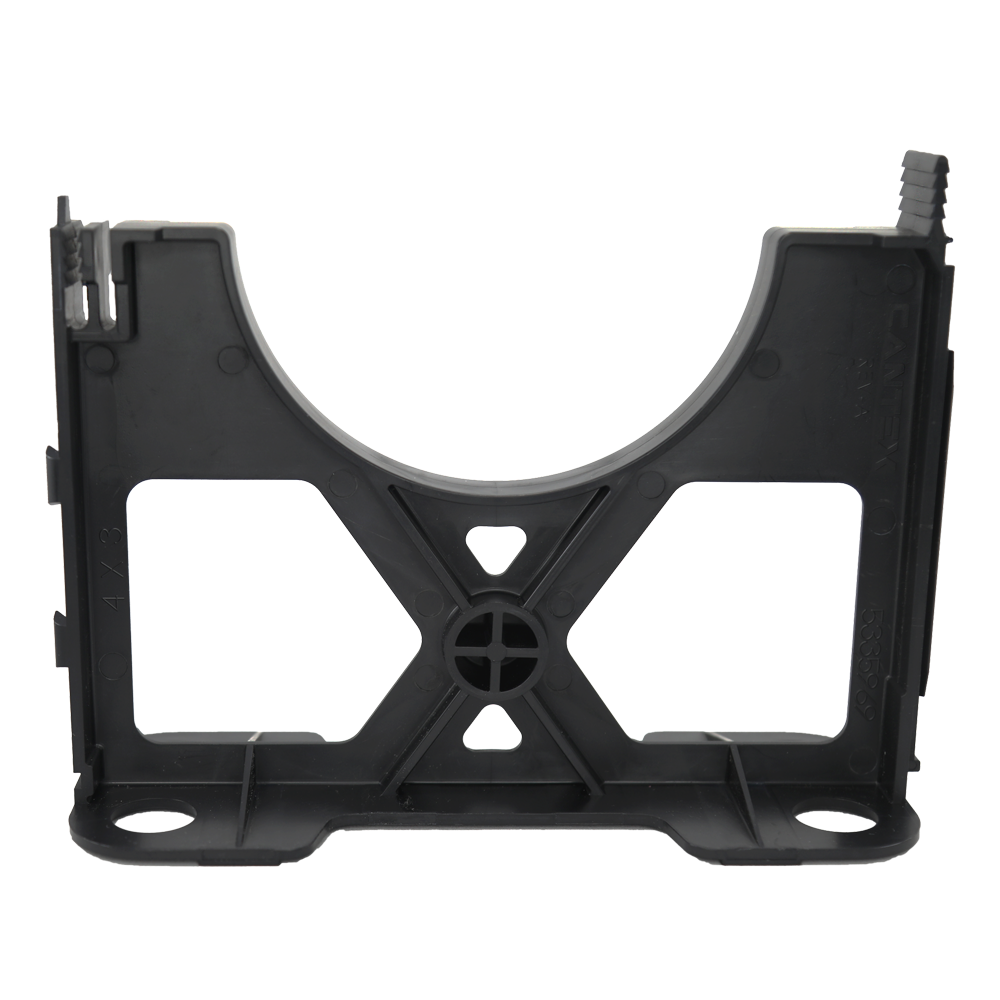

Cantex 5335976 Base Spacer 5 x 2 in.

Product Description

Cantex 5335976 is a 5 x 2 in. base spacer used to create concrete-encased or direct-bury duct banks, supporting conduit up to 5 in. diameter while maintaining 2 in. spacing between runs. The polystyrene unit provides vertical and horizontal interlocking for secure field assembly and a wide base plate to support heavy loads. It is compatible with EB and DB conduit and Schedule 40 and 80 conduit.

• Supports conduit up to 5 in. diameter with 2 in. spacing between runs
• Vertical and horizontal interlocking design for fast, secure field assembly
• Wide base plate constructed of polystyrene to provide solid support under loads

Product Highlights

Non-metallic polystyrene base spacer for consistent duct bank alignment and concrete-encased or direct-bury installations

Product Information

Standard Information

• Brand: CANTEX
• Manufacturer Part Number: 5335976
• Country of Origin: USA

Technical Specifications

• Brand: Cantex
• MPN: 5335976
• Product Type: Base spacer
• Product Size: 5 x 2 in.
• Conduit Capacity: Up to 5 in. diameter conduit
• Spacing Between Conduit Runs: 2 in.
• Material: Polystyrene
• Compatible With: EB & DB and Schedule 40 & 80 conduit
• Dimensions: 7.938 in L x 3 in W x 6.5 in H
• Side Rail Height: 6.5 in
• Carton Quantity: 60
• Country of Origin: USA
• Standards: ARRA compliant; RoHS compliant
• UPC: 088700538740
• Application: Supports alignment of duct bank sections
