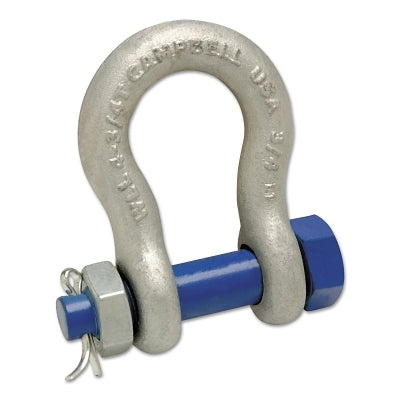

Campbell 5391035 Anchor Shackle Bolt Type Forged Carbon Steel Galvanized 5/8

Product Description

The Campbell 5391035 Anchor Shackle is engineered for heavy-duty applications in material handling. Made by Apex Tool Group, this 5/8 inch shackle is constructed from forged carbon steel and features a galvanized finish.

• 5/8 inch bolt type
• Forged carbon steel
• Galvanized finish

Product Highlights

Perfect for lifting, pulling, and positioning needs. The working load limit is permanently shown on every shackle for added safety.

Product Information

Standard Information

• Brand: Campbell
• Manufacturer: Apex Tool Group

Technical Specifications

• MPN: 5391035
• UPC: 020418075544
• Weight: 1.42 lbs
• Height: 1.45 inches
• Width: 3.7 inches
• Length: 4.1 inches
• Bail Size: 5/8 inch
• Eye Outer Size: 1 7/16 inches
• Inner Length: 2 7/16 inches
• Inner Width: 1 9/16 inches
• Opening Size: 1 1/16 inches
• Pin Size: 0.75 inches
• Locking Type: Threaded Pin
• Type: Secured Bolt & Nut Shackle
• Working Load Limit: 6,500 lbs
• Material: Forged Carbon Steel
• Finish: Galvanized Zinc
