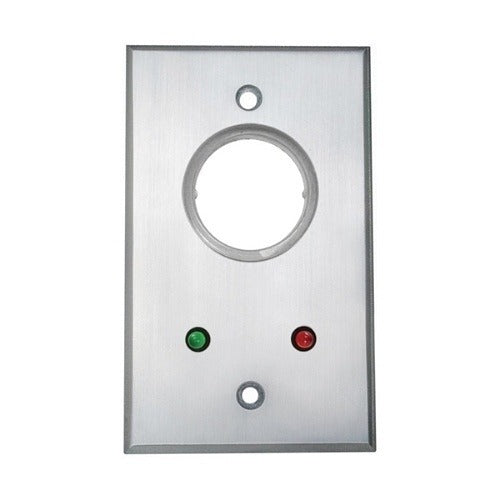

Camden Door Controls CM-1180-7224 Dpdt Momentary Switch 24V

Product Description

The Camden Door Controls CM-1180-7224 is a double-pole double-throw (DPDT) momentary round switch with a green LED indicator rated at 24 volts. It is designed for use in commercial door access control and security systems where a momentary switching action is required. The green LED provides a clear visual status signal at the switch location. Electricians and low-voltage access control technicians are the typical installers of this switch in door control applications.

This switch is suited for commercial and institutional access control installations where a momentary contact output is needed to trigger door operators, magnetic locks, or related access control hardware. The round form factor and integrated LED make it a common choice for request-to-exit (REX) and door release button applications in entryways, corridors, and secure access points.

Key Features

• DPDT momentary contact switching action for access control triggering
• Integrated green LED indicator for clear visual feedback at the switch
• 24-volt rated operation compatible with standard access control power supplies
• Round switch format suitable for standard electrical box or surface mounting
• Sold individually as a single unit

Compatibility

Designed as an OEM-style replacement or upgrade switch for commercial door access control and security systems requiring a 24-volt DPDT momentary input device.

Installation Notes

Installation should be performed by a licensed electrician or qualified low-voltage access control technician in accordance with applicable NEC requirements and local codes. Power down the access control panel and any connected door hardware before wiring or replacing this switch. Verify that the supply voltage matches the 24-volt rating of the switch before energizing the circuit. Follow the door operator or access control system manufacturer wiring diagram when making connections.
