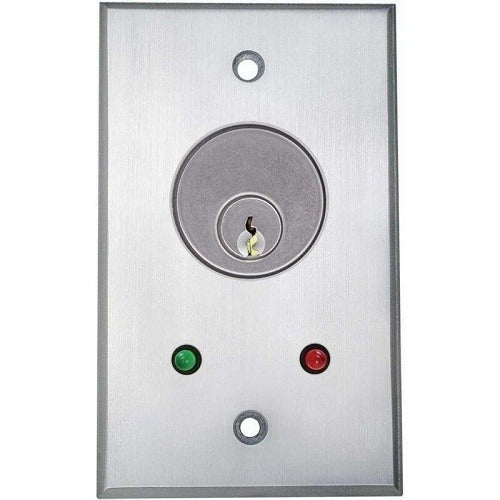

Camden Door Controls CM-1100-7012 Key Switch Spst 12V Led

Product Description

The Camden Door Controls CM-1100-7012 is a single-pole single-throw (SPST) momentary key switch with an integrated 12-volt LED indicator. It is designed for access control and door entry applications where a keyed operator must initiate a momentary contact closure to trigger an electric latch, magnetic lock, or access control panel. The momentary action means the circuit closes only while the key is held in the actuated position and returns to open upon release. The built-in 12-volt LED provides visual confirmation of switch status, making it suitable for low-voltage access control circuits. Licensed electricians and security system technicians are the primary installers of this device.

This key switch is used in commercial and light-industrial access control systems, including electric door hardware, gate operators, and building entry points. It fits into standard electrical or access control enclosures and works within low-voltage systems powered at 12 volts. Typical installations include interior corridor doors, secured storage areas, and exterior gate entry panels where keyed-only operation is required.

Key Features

• SPST momentary contact action — circuit closes only while key is held actuated
• Integrated 12-volt LED indicator for visual status confirmation
• Keyed operation restricts actuation to authorized personnel
• Designed for low-voltage access control circuit integration
• Single-unit packaging suitable for individual installation or service replacement

Compatibility

Designed as an OEM-style replacement or new-installation key switch for low-voltage access control and door entry systems requiring SPST momentary contact operation with a 12-volt LED indicator circuit.

Installation Notes

Installation should be performed by a licensed electrician or qualified access control technician in accordance with applicable NEC requirements for low-voltage wiring. De-energize the access control panel and confirm zero voltage at the switch wiring terminals before making any connections. Verify that the system power supply output matches the 12-volt LED rating before completing the circuit. Do not apply line voltage to this low-voltage switch.
