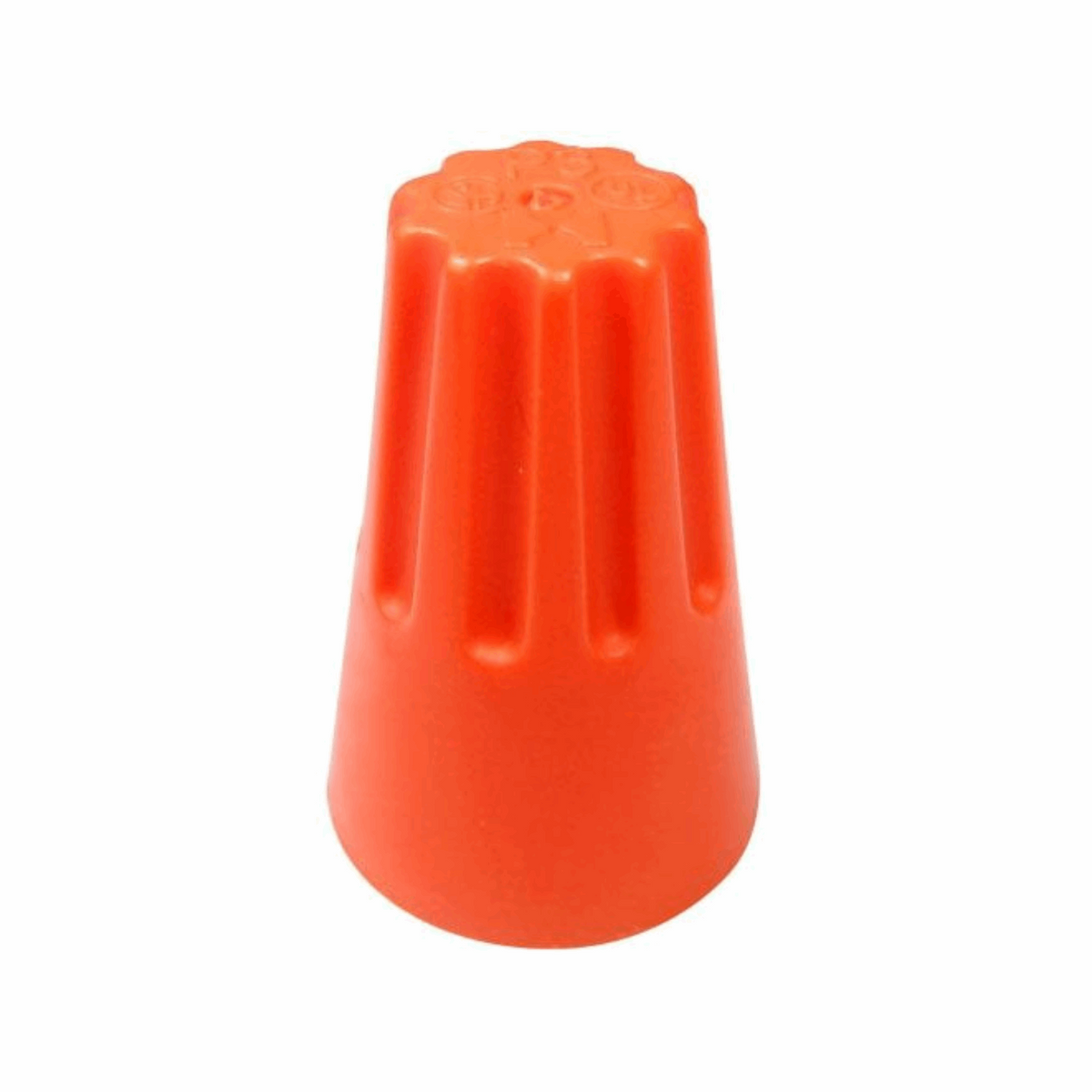

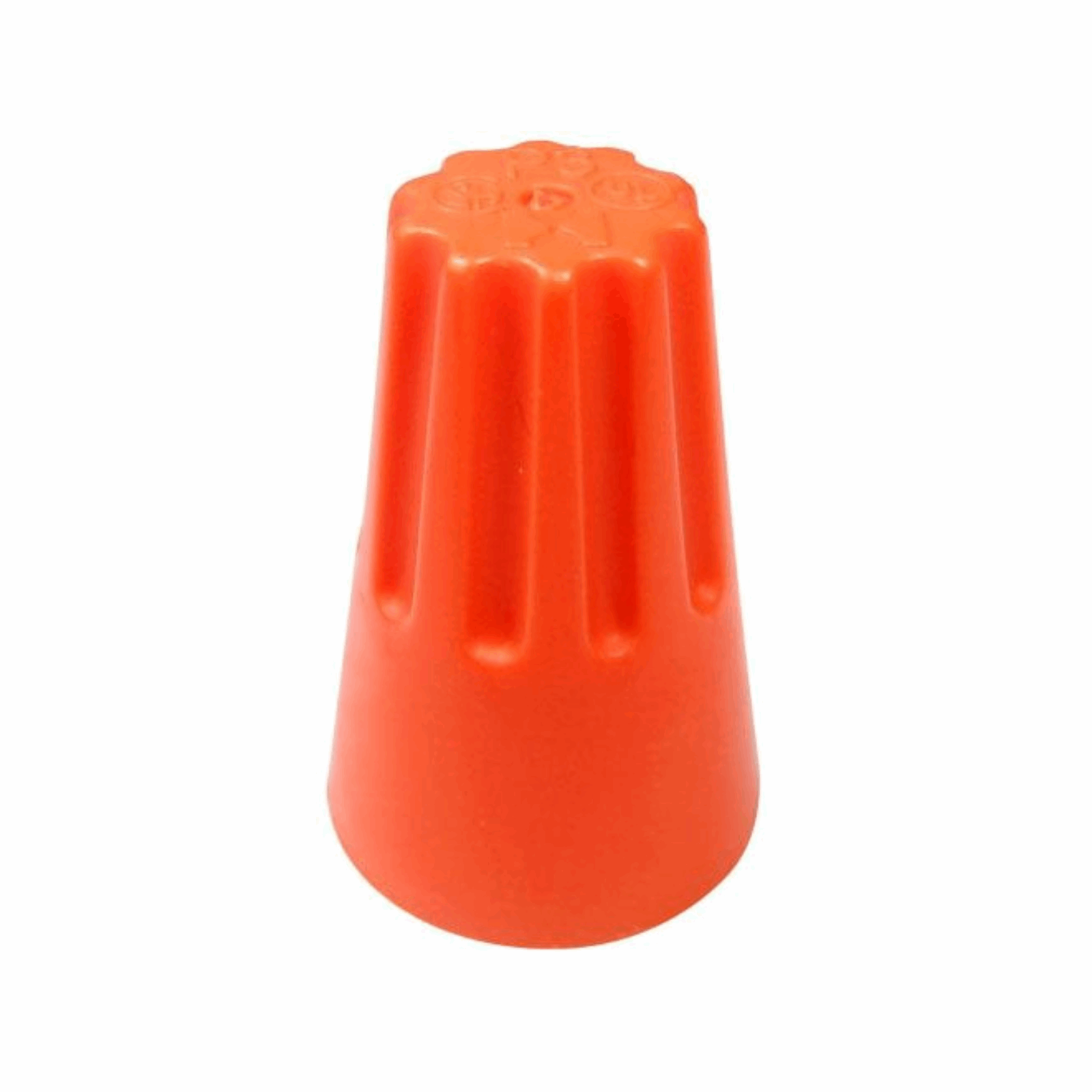

Cambridge 112716 Orange Wire Connector 600 Volt (20 Jar)

Product Description

The Cambridge 112716 is a wire connector designed for solid wire connections. It works with wire sizes from #22 to #14 AWG. This connector is suitable for applications requiring a voltage rating of up to six hundred volts and operates safely at a maximum temperature of one hundred five degrees Celsius. Each jar includes twenty connectors.

• Compatible with wire sizes #22 to #14 AWG
• Rated for a maximum voltage of six hundred volts
• Temperature rated for one hundred five degrees Celsius

Product Highlights

The Cambridge 112716 wire connector is ideal for electrical projects where reliable connections are crucial.

Product Information

Standard Information

• Wire Type: Solid
• Color: Orange

Technical Specifications

• Voltage Rating: 600 Volt
• Wire Size: #22 to #14 AWG
• Minimum Wire Combination Size: (1) #18, (1) #20
• Maximum Wire Combination Size: (4) #16, (1) #20
• Temperature Rating: 105 Deg C
• Standard Package: 20 Jar per Case
• Approval: UL, CSA
• RoHS Compliant: Yes
• Strip Wire Size: 5/16 Inch, 3/8 Inch
