Product Description

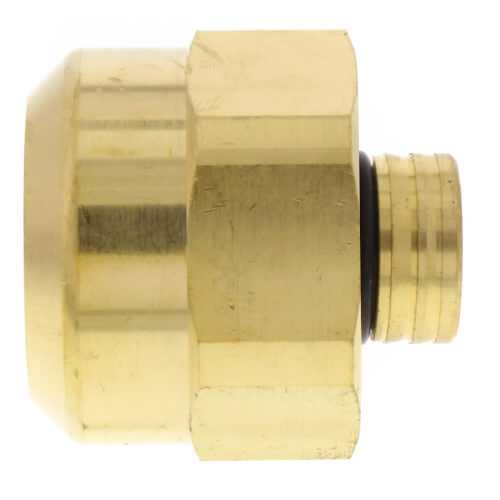

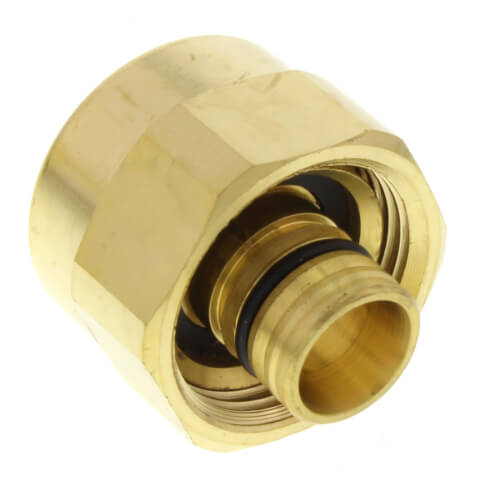

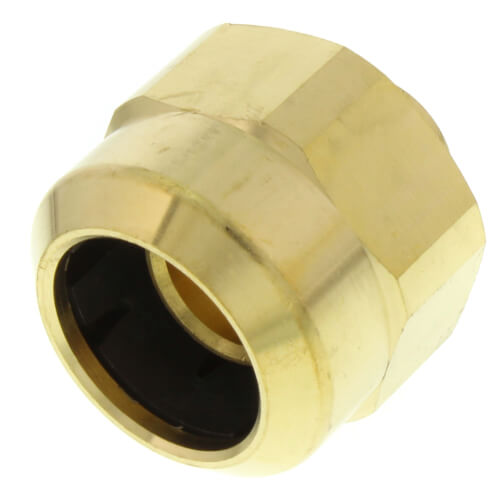

The Caleffi 680555A 5/8-inch nominal universal PEX fitting is ideal for connecting PEX and PEX-AL-PEX pipes in heating and cooling systems. This fitting, made by Caleffi, is designed to ensure easy and secure connections, particularly suitable for manifold tolerances.
- Easy and secure connection
- Designed for manifold tolerances
- Nominal PEX connection
Product Highlights

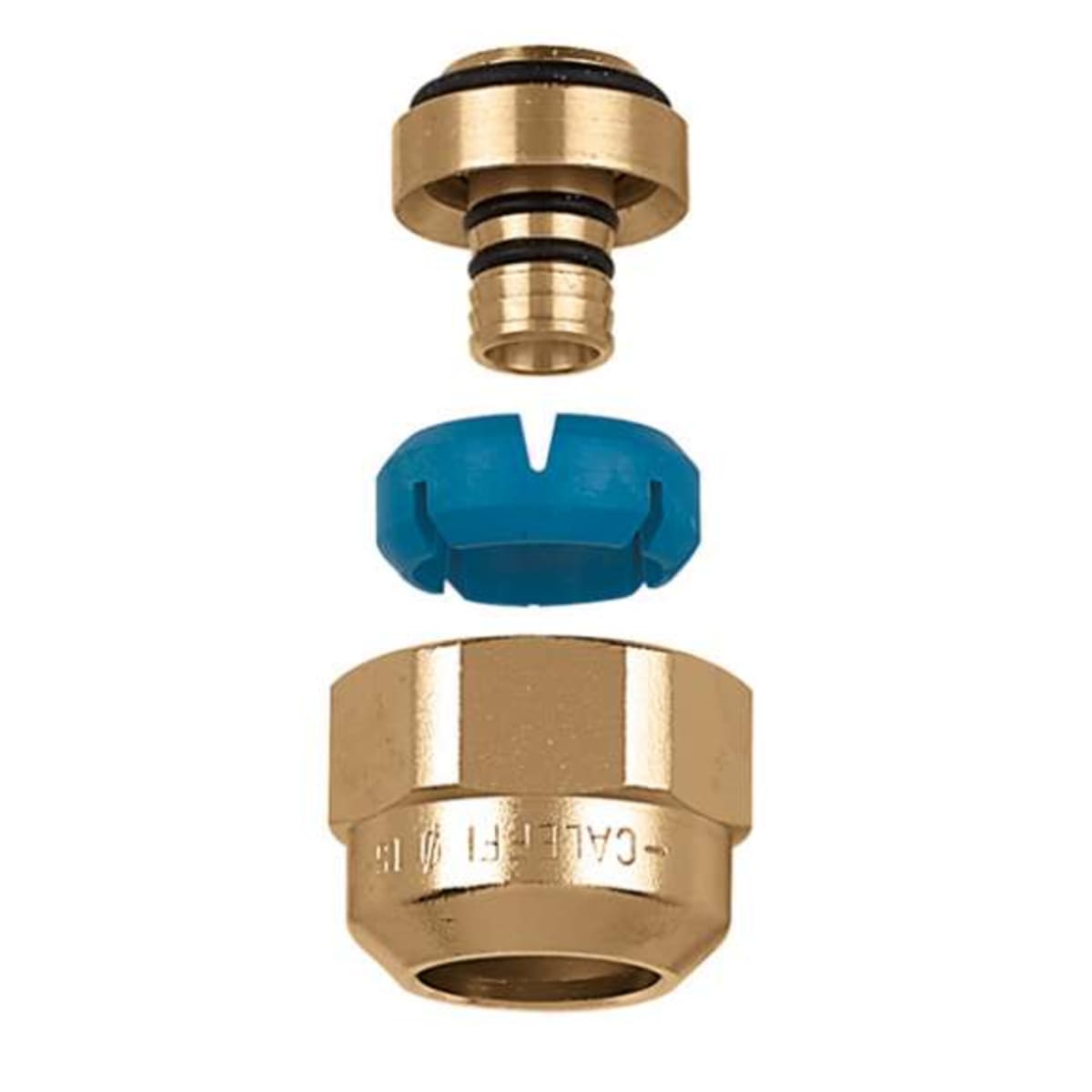

This fitting adapts to varying pipe diameter tolerances and ensures efficient performance in your heating or cooling system. It features a brass nut and adapter, EPDM seals, EPDM insulation ring, and PA olive coupling. Suitable for use with water and glycol solutions, it can handle a glycol concentration of up to 50 percent.
Product Information
Standard Information
-
Brand: Caleffi
-
MPN: 680555A
-
Number of Items: 1
Technical Specifications
-
Connection Type: Nominal PEX
-
Connection Size: 0.63 inches
-
Maximum Working Pressure: 150 psi (10 bar)
-
Temperature Range: 41 to 180°F (5 to 82°C)
-
Material: Brass nut and adapter, EPDM seals, EPDM insulation ring, PA olive coupling
-
Medium: Water and glycol solutions
-
Glycol Concentration: Max 50%
