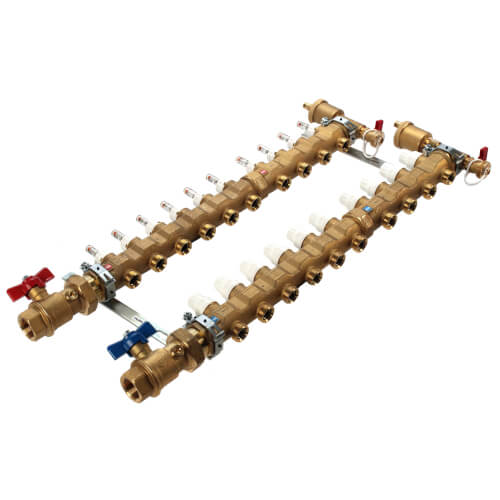

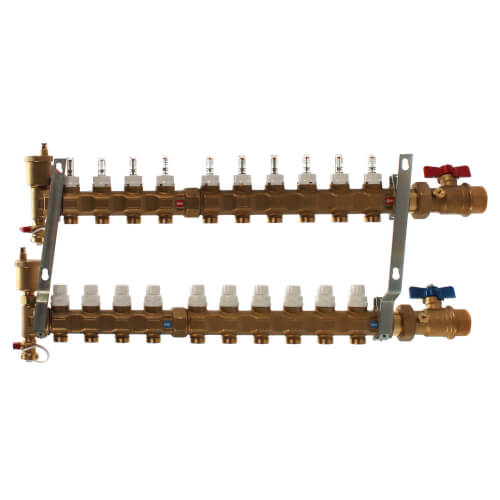

Caleffi 6686L5S1A TwistFlow Manifold Assembly 10 Outlets 1 inch

Product Description

The Caleffi 6686L5S1A TwistFlow Manifold Assembly is an integral component for radiant heating systems, engineered to distribute heating fluid evenly across 10 outlets. This 1-inch inlet manifold optimizes heat emission control and enhances system efficiency.

• Pre-assembled for easy installation with built-in sight flow gauge and balancing valve.
• Features robust 1-inch NPT inlet ball valves, capable of handling a maximum working pressure of 150 psi and temperatures up to 180°F.
• Designed for use with PEX and PEX-AL-PEX tubing through versatile loop fitting assemblies.

Product Highlights

Equipped with a sight flow gauge to monitor flow rates, this manifold facilitates accurate adjustments and provides reliable performance in floor heating applications.

Product Information

Technical Specifications

• Brand: Caleffi
• MPN: 6686L5S1A
• Maximum Pressure: 150 psi
• Maximum Temperature: 180°F
• Outlet Center Distance: 2 inches
• Loop Cv: 1.23
• Loop Fitting Options: Available for 5/16 inch, 3/8 inch, 1/2 inch, 5/8 inch, and 3/4 inch PEX connections
• Installation Accessories: Manifold Loop End Cap, Thermal Actuators
