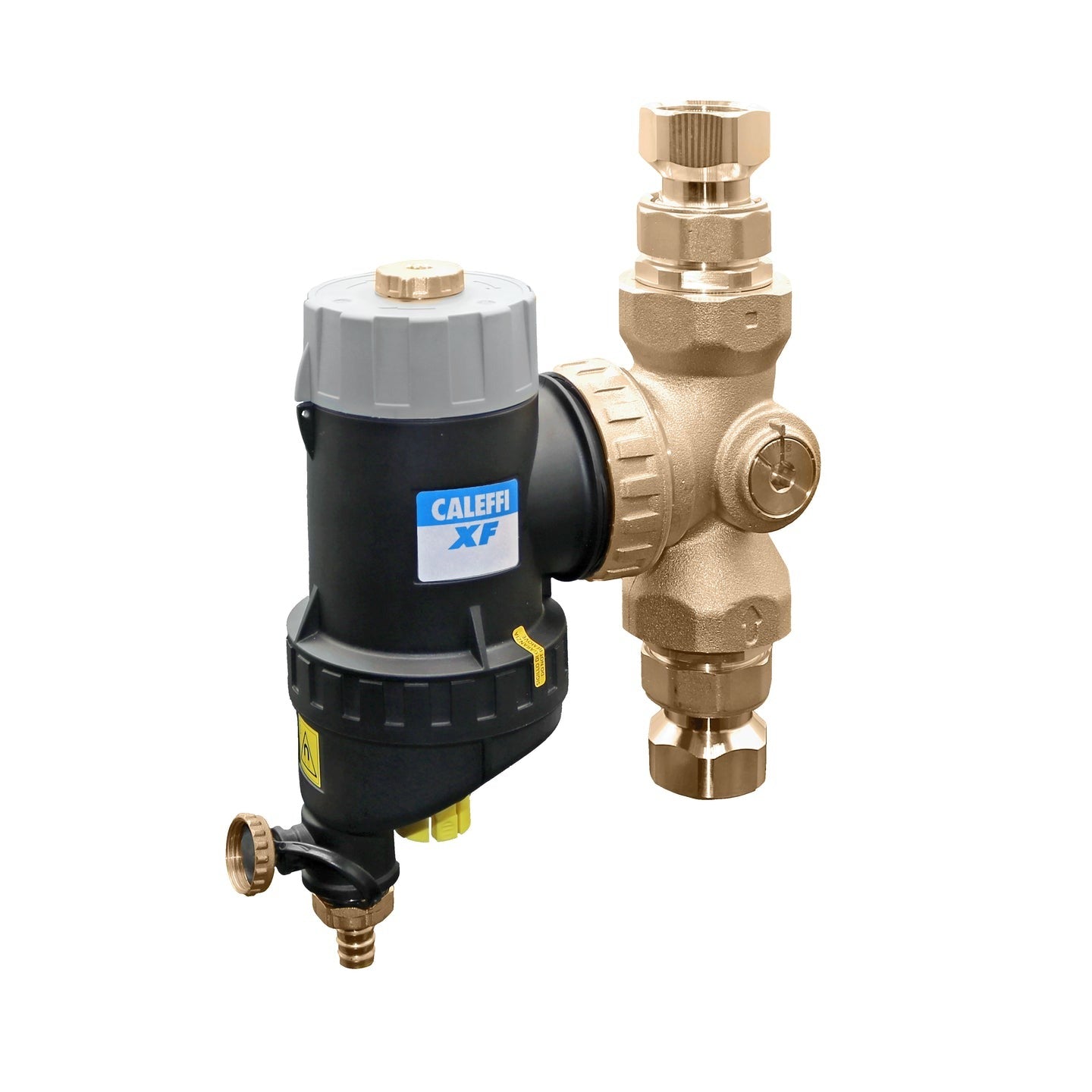

Caleffi 577986A XF Magnetic Strainer 1-1/2 Press Union

Product Description

The Caleffi 577986A is an XF magnetic strainer with a 1-1/2-inch press union connection designed to capture ferrous debris in hydronic systems. It employs a neodymium rare-earth magnet and an enlarged low-velocity chamber to separate and retain particles ahead of pumps, control valves, and heat exchangers. The unit is rated to 45 psi, operates from 32 to 195 F, includes a 50% bypass on this size, and is compatible with water and up to 30% glycol.

• Neodymium rare-earth magnet with enlarged low-velocity chamber for ferrous debris capture and collection
• 1-1/2 in press union connection; composite and brass construction
• Maximum operating pressure 45 psi; operating temperature range 32 - 195 F; compatible with water and glycol up to 30%

Product Highlights

XF magnetic dirt separator (Caleffi 577986A) with 1-1/2 in press union, neodymium magnet, 50% bypass, 45 psi max, 32-195 F operating range

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: 577986A
