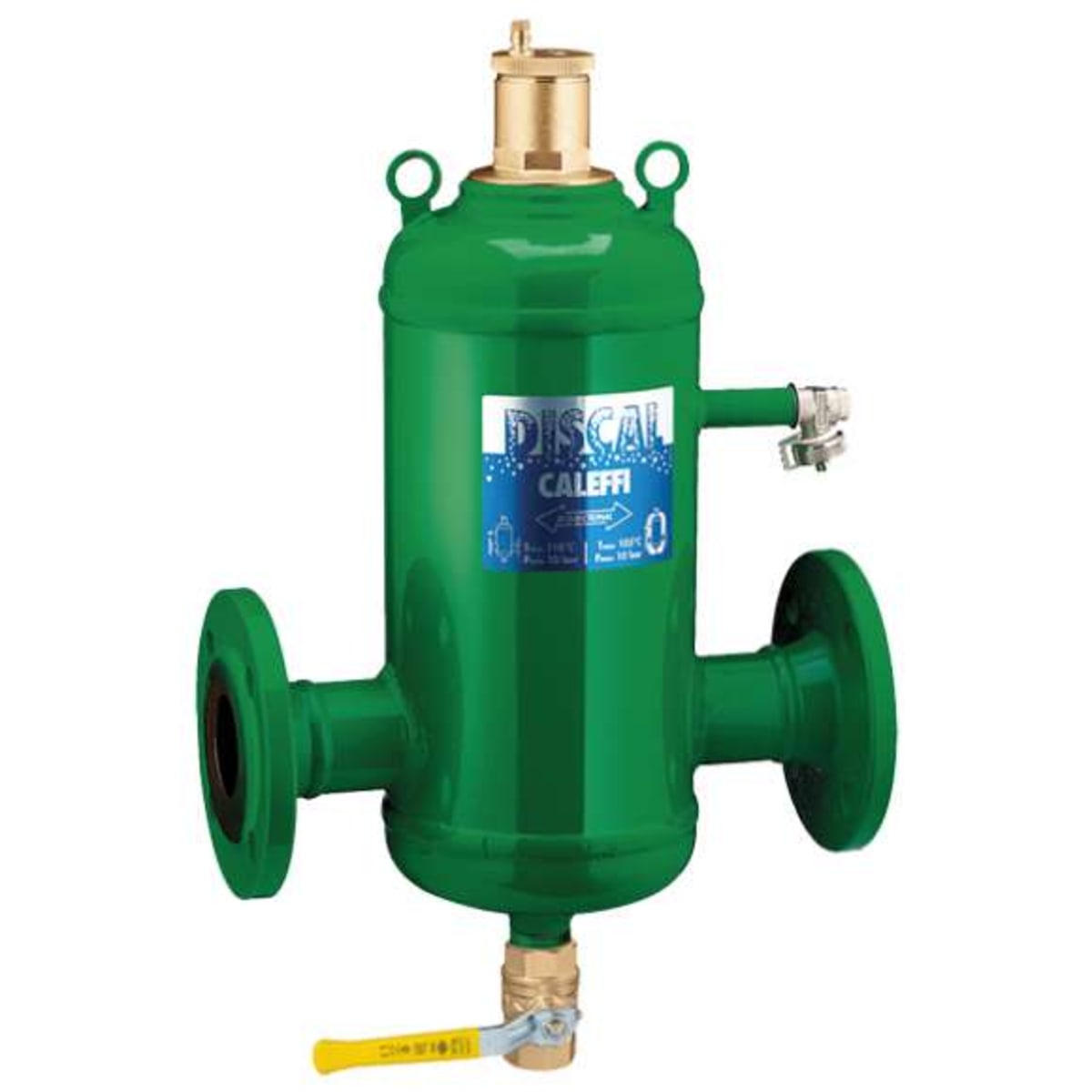

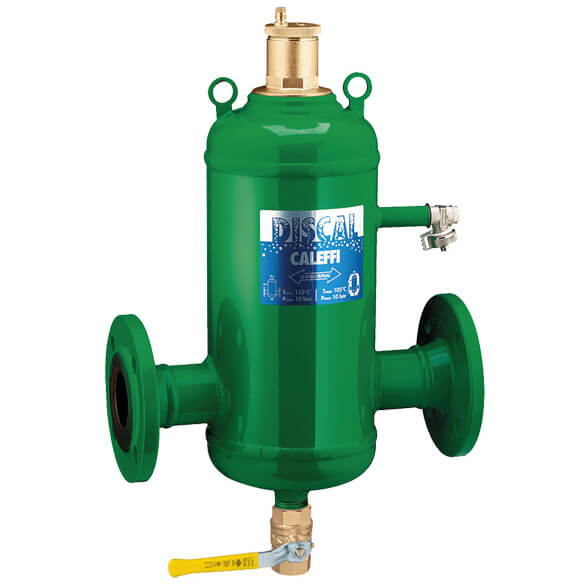

Caleffi 551060A DISCAL Air Separator 2 1/2 Flange

Product Description

The Caleffi DISCAL® air separator 551060A is designed for efficient air removal in hydronic heating and cooling systems. This product effectively eliminates air down to micro-bubble levels, which promotes optimal performance and longevity of the system.

• High air discharge capacity enables continuous operation.
• Bidirectional flow allows flexibility in installation.
• Construction from durable steel material ensures reliability.

Product Highlights

The unit is capable of operating within a wide temperature range of thirty-two to two hundred seventy degrees Fahrenheit and can handle a working pressure of one hundred fifty psi.

Product Information

Standard Information

• Brand: Caleffi North America
• Part Number: CALE-551060A

Technical Specifications

• Connection Type: ANSI 150 lb Raised Face Flange
• Dimensions: Thirteen and three-quarters inches wide by nineteen and fifteen-sixteenths inches high
• Material: Steel
• Nominal Size: Two and one-half inches
• Series: 551
• Suitable Media: Water/Glycol Solution
• Temperature Rating: Thirty-two to two hundred seventy degrees Fahrenheit
• Working Pressure: One hundred fifty psi
