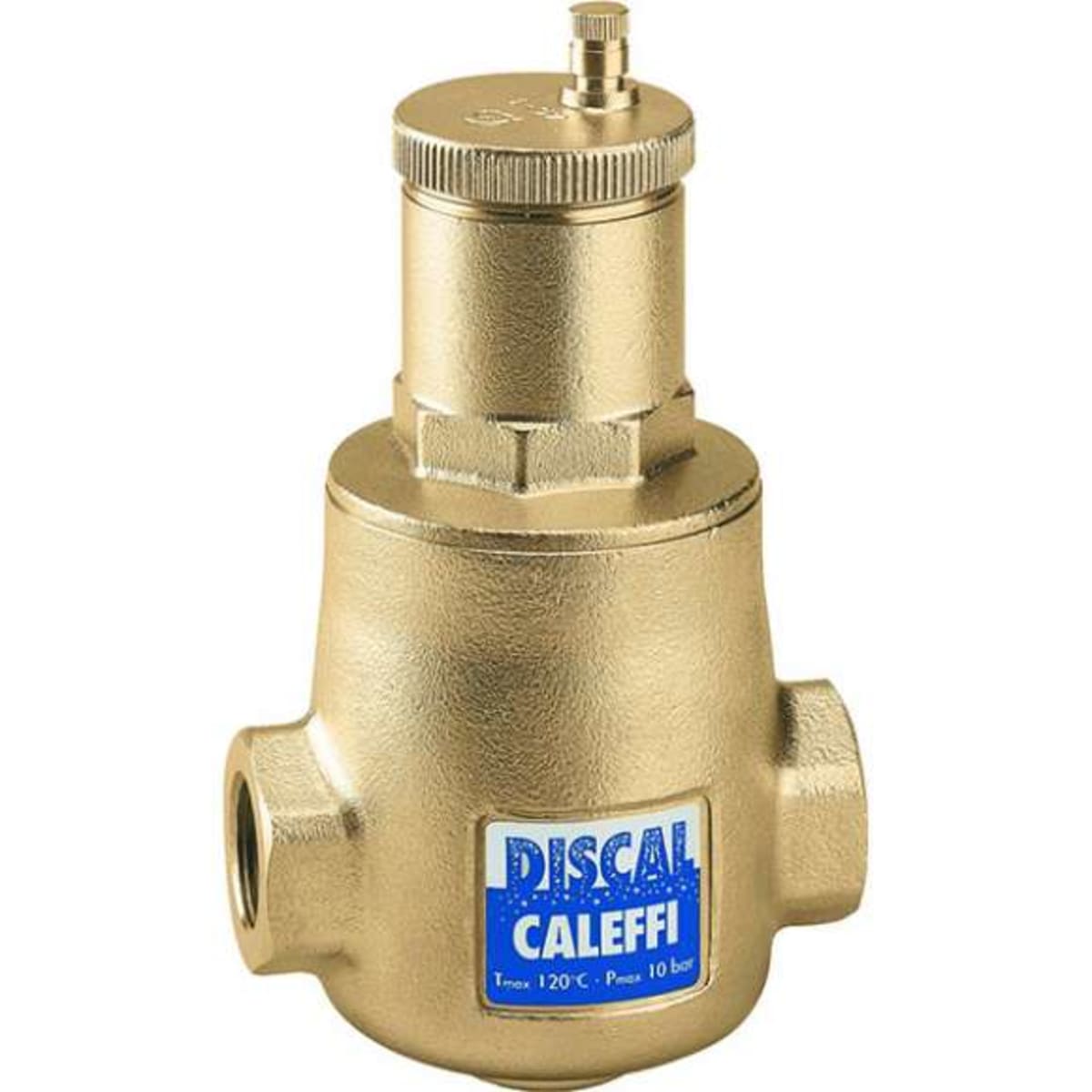

Caleffi 551005A DISCAL Air Separator 3/4 NPT

Product Description

The Caleffi 551005A DISCAL Air Separator is designed to remove air from hydronic systems. The unit operates at a nominal size of three-fourths of an inch with a female NPT connection. It can withstand a working pressure of one hundred fifty PSI and operates effectively within a temperature range of thirty-two to two hundred fifty degrees Fahrenheit.

• Removes air continuously from heating and cooling systems.
• High air discharge capacity, eliminating micro-bubbles.
• Constructed from brass with a durable design.

Product Highlights

This air separator ensures efficient operation by removing air, which reduces noise and prevents mechanical damage in hydronic systems.

Product Information

Standard Information

• Brand: Caleffi North America
• MPN: 551005A

Technical Specifications

• Connection Type: FNPT
• Nominal Size: 3/4 in
• Material: Brass
• Dimensions: 4-5/16 in W x 7-1/2 in H
• Suitable Media: Water/Glycol Solution
• Temperature Rating: 32 to 250 deg F
• Working Pressure: 150 psi
